1996 Yamaha Vmax 500 DX (VX500DXW) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1996 Yamaha Vmax 500 DX (VX500DXW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

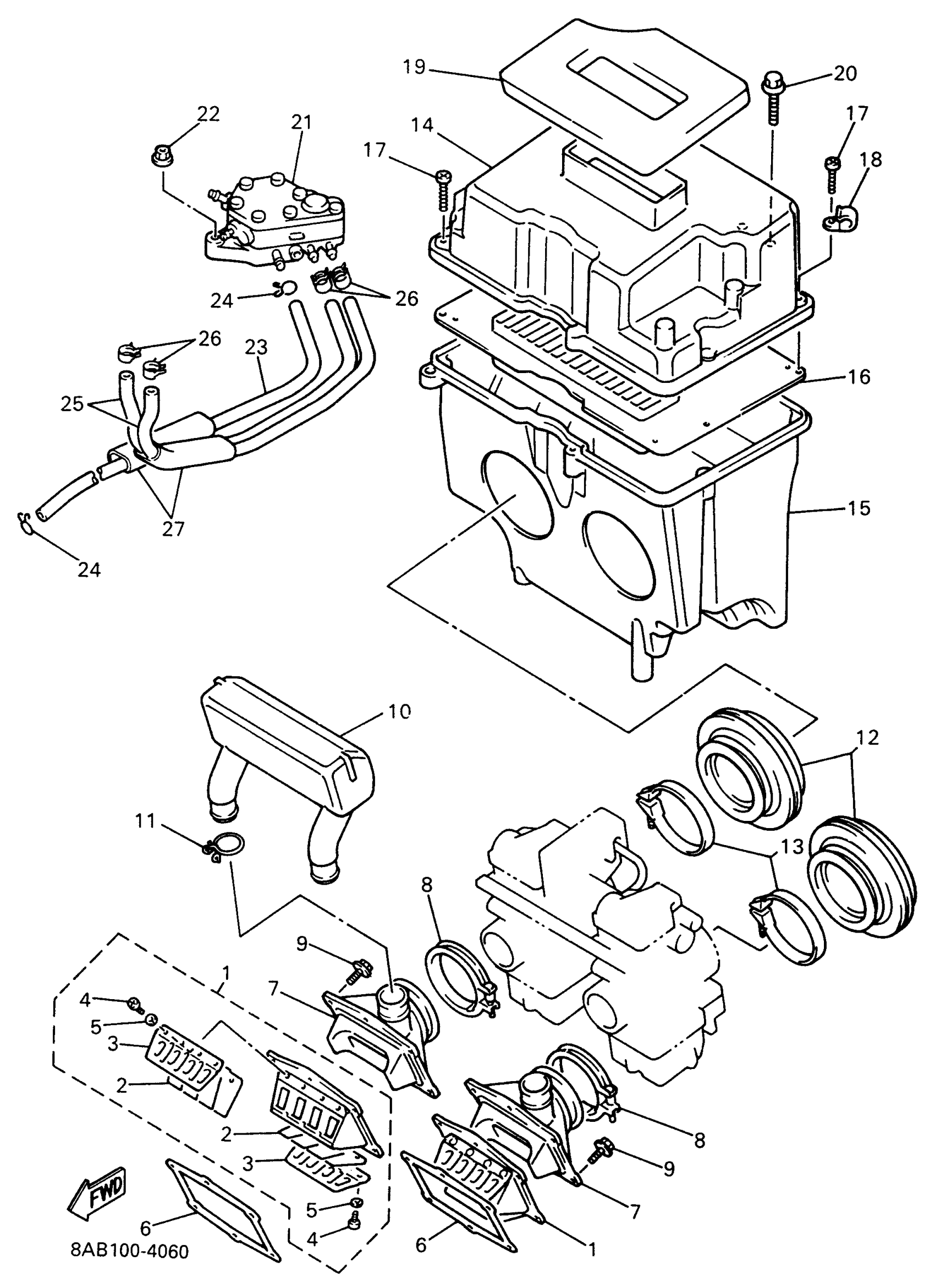

1996 Yamaha Vmax 500 DX (VX500DXW) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

8AB-13610-00-00

1
Out of stock

2

REED,VALVE

8AB-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

8AB-13616-00-00

1
Out of stock

4

SCREW, PAN

98507-03006-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

GASKET, VALVE SEAT

8AB-13621-00-00

1
Out of stock

7

MANIFOLD, INTAKE

8AB-13555-00-00

1
Out of stock

8

BAND

86M-13575-00-00

1
Out of stock

9

BOLT, FLANGE

95817-06020-00

1
Out of stock

10

CHAMBER, AIR

8AB-13581-00-00

1
Out of stock

11

CLIP(8V0)

90467-24096-00

1
Out of stock

12

JOINT,AIR CLNR 1

8AB-14453-00-00

1
Out of stock

13

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

14

SILENCER, INTAKE 1

8AB-14431-00-00

1
Out of stock

15

SILENCER, INTAKE 2

8AB-14441-00-00

1
Out of stock

16

PLATE

8AB-14477-00-00

1
Out of stock

17

SCREW, TAPPING(82M)

90167-05043-00

—
Out of stock

18

CLAMP

90465-08028-00

1
Out of stock

19

DAMPER 1

8AB-14425-01-00

1
Out of stock

20

BOLT, WITH WASHER(2WG)

90119-06172-00

—
Out of stock

21

FUEL PUMP ASSY

89A-24410-01-00

—
Out of stock

22

NUT, FLANGE(4MV)

95707-06500-00

—
Out of stock

23

HOSE (L450)

90445-10144-00

—
Out of stock

24

CLIP

90467-090A2-00

—
Out of stock

25

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

26

CLIP (8A1)

90467-09026-00

—
Out of stock

27

HOSE (L70)

90445-22327-00

—
Out of stock
