2000 Yamaha Vmax 500 (VX500D) Electrical 1 Diagram

← All diagrams

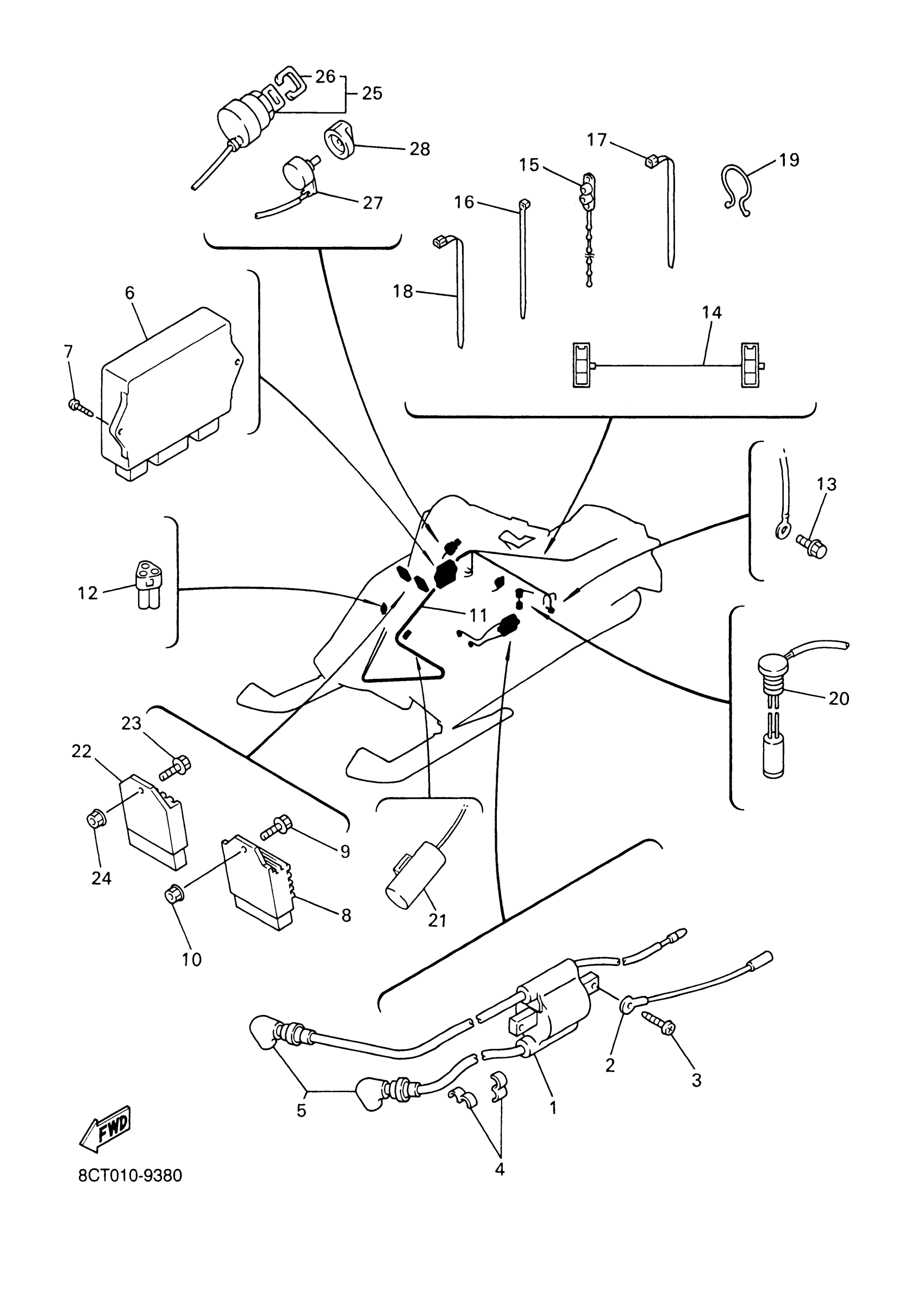

Find the part on the Electrical 1 diagram for your 2000 Yamaha Vmax 500 (VX500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha Vmax 500 (VX500D) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

8AB-82310-07-00

1
Out of stock

2

WIRE, SUB-LEAD

87D-82318-00-00

1
Out of stock

3

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

4

CLAMP, CORD

861-82361-00-00

—

$5.34

In stock

5

PLUG CAP ASSY

8DG-82370-00-00

1
Out of stock

6

C.D.I. UNIT ASSY

8CJ-85540-01-00

1
Out of stock

7

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

8

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

1
Out of stock

9

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

10

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

11

WIRE HARNESS ASSY

8CJ-82590-10-00

1
Out of stock

12

CONNECTOR

8CR-82378-00-00

—

$11.45

In stock

13

BOLT, FLANGE

95817-06010-00

1

$3.91

In stock

14

WIRE, LEAD

8CR-8471G-00-00

1
Out of stock

15

CLAMP

90464-20031-00

1

$2.62

In stock

16

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

17

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

18

CLAMP

90464-13077-00

—

$6.68

In stock

19

CLAMP

90464-25267-00

—

$5.62

In stock

20

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

1

$44.61

In stock

21

CONDENSER, SMOOTHING

1NL-81965-01-00

—
Out of stock

22

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

1
Out of stock

23

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

24

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

25

MAIN SWITCH ASSY

8AB-82510-01-00

—
Out of stock

26

CAP, KEY

526-82579-00-00

—

$6.72

In stock

27

RESISTOR, VARIABLE

8CR-87283-00-00

1
Out of stock

28

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

1
Out of stock
