Description

Price

1

CABLE, STEERING

F2N-61481-02-00

Unavailable

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.75

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.07

8

MOTOR ASSY.

F2W-6140B-04-00

Unavailable

9

PLATE

F3Y-U8285-00-00

$14.91

10

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.02

11

BOLT, WITH WASHER

90119-08852-00

$4.01

12

NUT, NYLON (6J8)

95780-08300-00

$11.48

13

TRIM ARM ASSY

F3J-6150E-00-00

$77.60

14

SHIFT ARM ASSY

F3J-6150F-00-00

$67.15

15

ROD ASSY

F3J-6150A-00-00

$42.93

16

ROD ASSY 2

F3J-6150D-00-00

$39.51

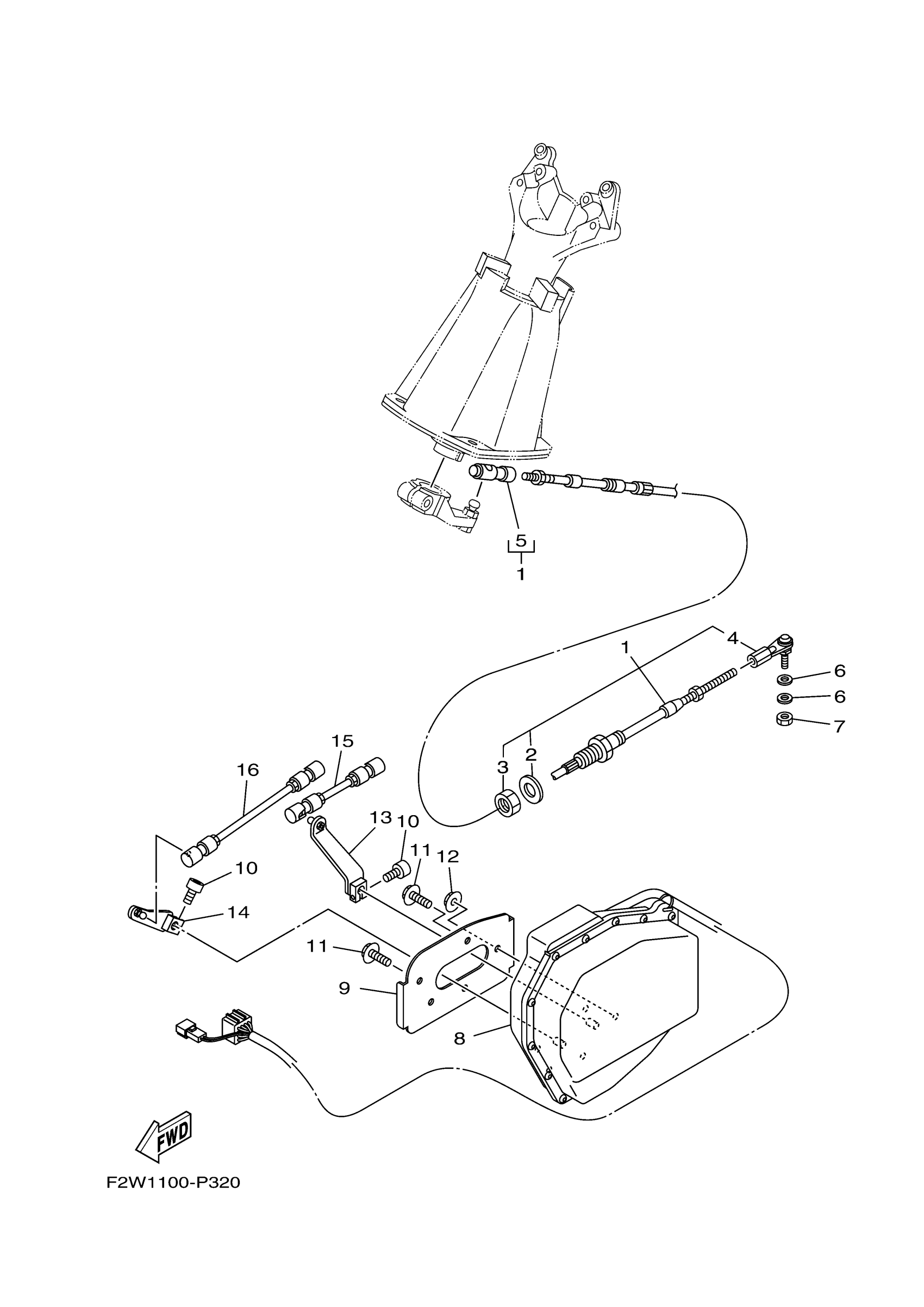

Yamaha VX1800R (VXS) F2W7 2016 CONTROL CABLE Diagram
