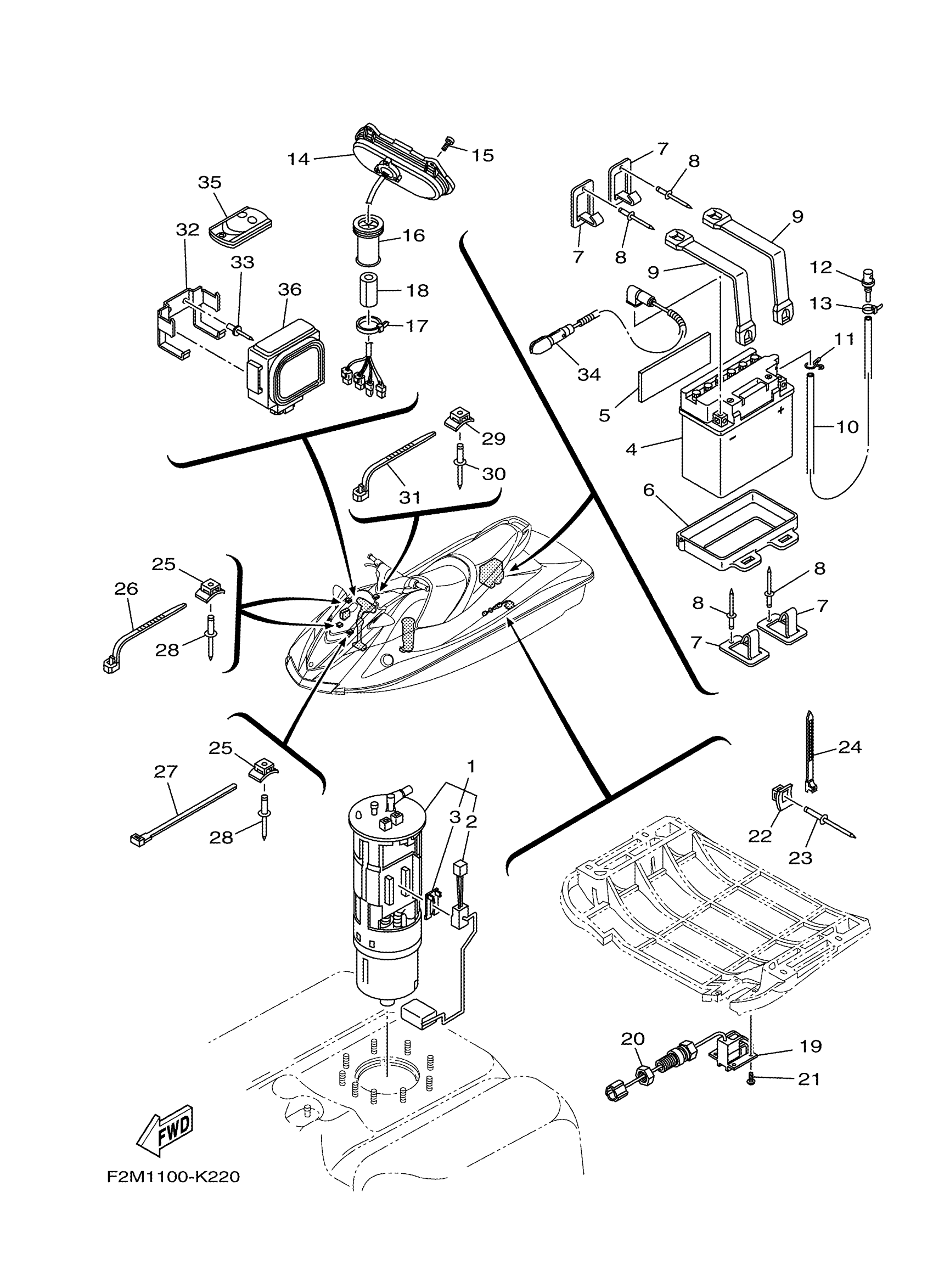

Yamaha VX1800N (VXS) F2MK 2014 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

PAD, BATTERY

F1K-U8221-00-00

$2.80

6

CASE, BATTERY

F1K-U8211-01-00

$20.88

7

HOOK A

F1K-U5772-04-00

$6.19

8

RIVET (EU0)

90267-48938-00

$4.72

9

BAND, BATTERY 1

F1K-U821D-01-00

$6.32

10

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

11

CLIP

90467-089U1-00

$1.42

12

NIPPLE

GJ3-6215F-00-00

$8.94

13

CLAMP

90465-10098-00

$2.24

14

METER ASSY

F1K-6820A-20-00

$843.27

15

BOLT,HEX. SOCKET BUTTON

90111-05009-00

$2.24

16

GROMMET

GU2-6822E-01-00

$24.61

17

CLAMP

90464-32801-00

$1.29

18

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

19

SENSOR SPEED

F1S-U8K31-03-00

$147.92

20

NUT

F2C-U151S-00-00

$1.57

21

SCREW, ROUND HEAD

90150-05807-00

$0.86

22

BASE, CLAMP

F1W-U828M-00-00

$1.29

23

RIVET, BLIND

90267-489U6-00

Unavailable

24

CLAMP

90464-32801-00

$1.29

25

BASE, CLAMP

F1W-U828M-00-00

$1.29

26

CLAMP

90464-32801-00

$1.29

27

BAND

90601-200U2-00

$3.29

28

RIVET, BLIND

90267-489U6-00

Unavailable

29

BASE, CLAMP

F1W-U828M-00-00

$1.29

30

RIVET, BLIND

90267-489U6-00

Unavailable

31

CLAMP

90464-32801-00

$1.29

32

BRACKET

F1W-U826C-00-00

$17.90

33

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

34

WIRE, MINUS LEAD

6JP-82116-00-00

$64.16

35

XMTR. COMP.

6B6-86261-00-00

$272.07

36

RECEIVER COMPLETE

6B6-86265-00-00

$420.88
