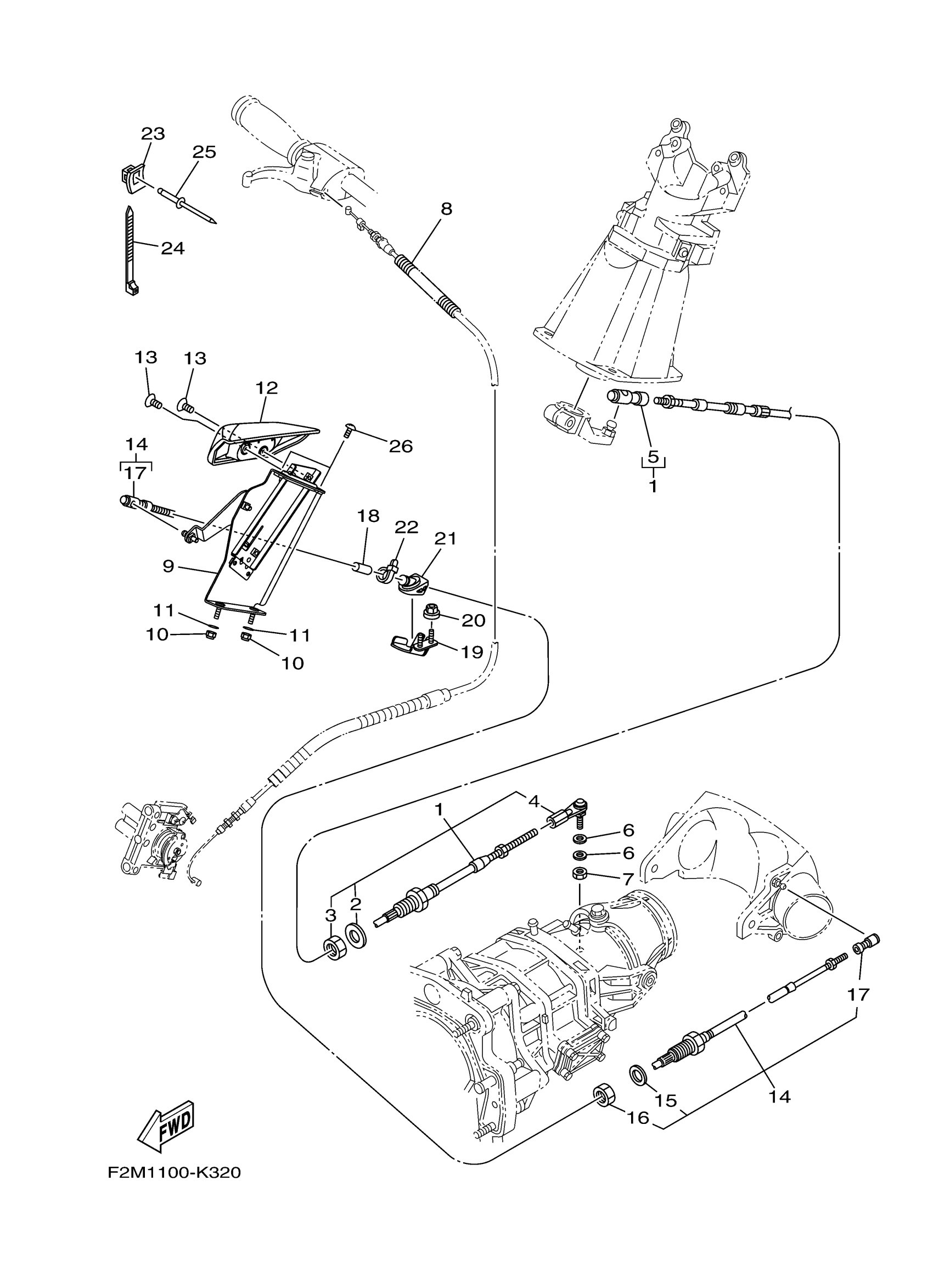

Yamaha VX1800K (VXS) F2M4 2011 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F2N-61481-02-00

Unavailable

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$82.07

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.04

6

WASHER, PLATE

90201-06906-00

$3.09

7

NUT

9538R-06700-00

$1.07

8

TUBE

90447-06803-00

$1.91

9

REMOCON. LEVER ASSY.

F2N-U134A-00-00

$141.16

10

NUT, NYLON

9572R-06300-00

$2.93

11

WASHER

9299R-06200-00

$0.43

12

GRIP

F2N-U2714-01-00

$55.87

13

SCREW, COUNTERSUNK

90151-06815-00

$1.29

14

CABLE,REVERSE

F2N-6149C-01-00

Unavailable

15

. PACKING C

F1B-61438-00-00

$2.47

16

NUT

F1B-6151S-01-00

$13.63

17

. BALL JOINT ASSY

F1B-61460-00-00

$38.75

18

PACKING, CABLE

F1W-U146G-00-00

$1.51

19

BRACKET,STOPPER CABLE

F2N-U1467-00-00

$14.69

20

NUT, LOCK

F2N-U142L-00-00

$1.43

21

PACKING, CABLE

F2N-U146G-00-00

$3.46

22

CLAMP

90465-10098-00

$2.24

23

BASE, CLAMP

F1W-U828M-00-00

$1.29

24

CLAMP

90464-32801-00

$1.29

25

RIVET, BLIND

90267-489U6-00

Unavailable

26

SCREW

F2N-67823-10-00

$2.13
