2016 Yamaha VXR (VX1800AR) Engine Mount Diagram

← All diagrams

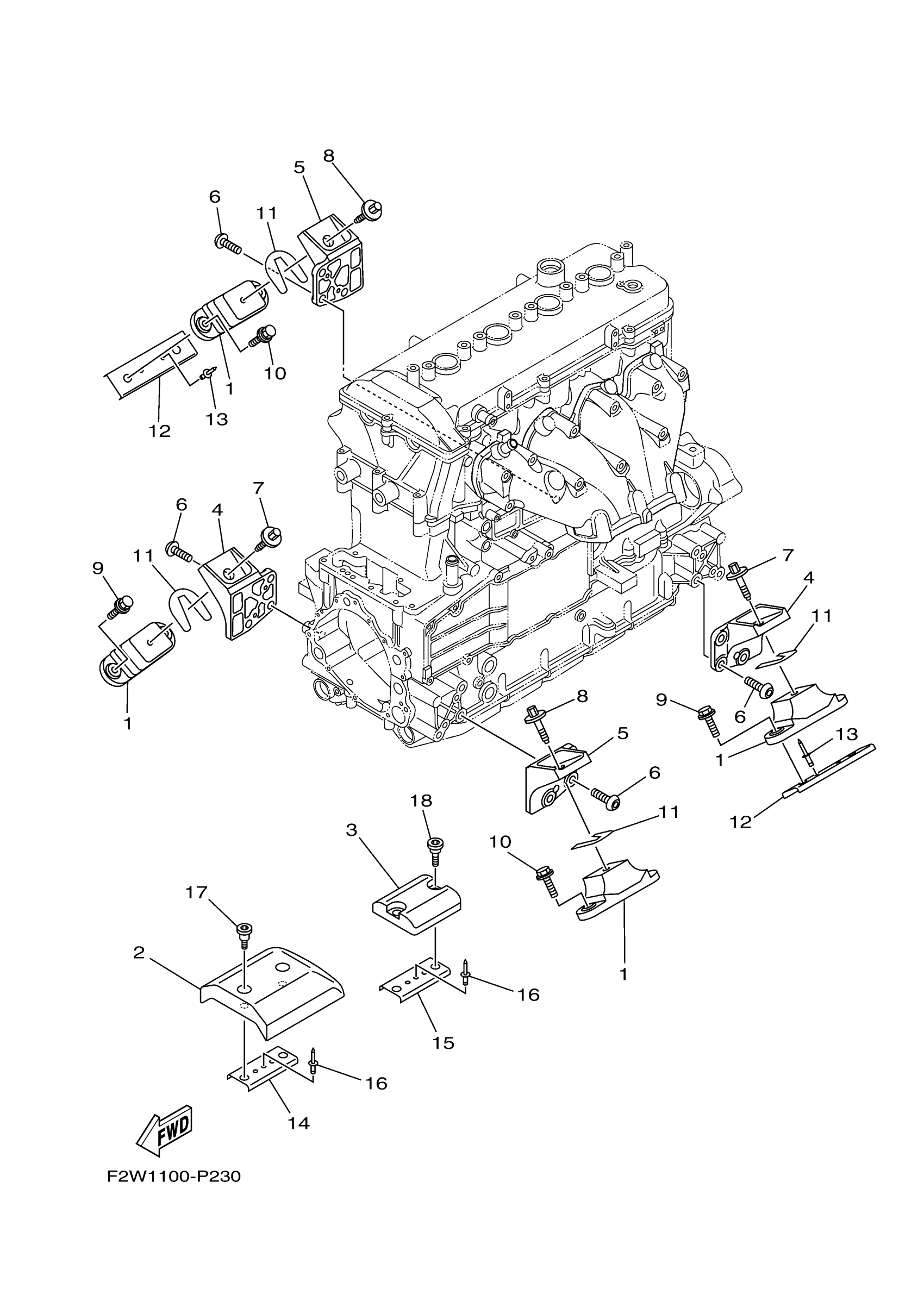

Find the part on the Engine Mount diagram for your 2016 Yamaha VXR (VX1800AR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha VXR (VX1800AR) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOUNT RUBBER

67X-44517-10-00

1

$100.26

In stock

2

STOPPER, UPPER MOUNT

6CN-G4532-00-00

1

$33.83

In stock

3

STOPPER, LOWER MOUNT RUBBER

6CN-G4574-00-00

1

$15.37

In stock

4

BRACKET 1

6BH-41661-00-00

1
Out of stock

5

BRACKET 2

6BH-41662-00-00

1
Out of stock

6

SCREW

90149-10052-00

1

$6.67

In stock

7

BOLT, WITH WASHER

90119-08860-00

1

$4.38

In stock

8

BOLT, WITH WASHER

90119-08860-00

1

$4.38

In stock

9

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

10

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

11

SHIM (T=0.1)

EU0-67354-A0-00

1

$4.45

In stock

11

SHIM (T=0.3)

EU0-67354-B0-00

1

$5.34

In stock

11

SHIM (T=0.5)

EU0-67354-C0-00

1

$4.45

In stock

11

SHIM (T=1.0)

EU0-67354-D0-00

1

$4.00

In stock

11

SHIM (T=2.0)

EU0-67354-E0-00

1

$4.00

In stock

12

PLATE

F2S-U732B-00-00

1
Out of stock

13

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

14

PLATE

F2M-U732B-00-00

1

$5.23

In stock

15

PLATE

F2M-U732B-00-00

1

$5.23

In stock

16

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock

17

BOLT

90109-06874-00

1

$3.23

In stock

18

BOLT

90109-06875-00

1

$3.38

In stock
