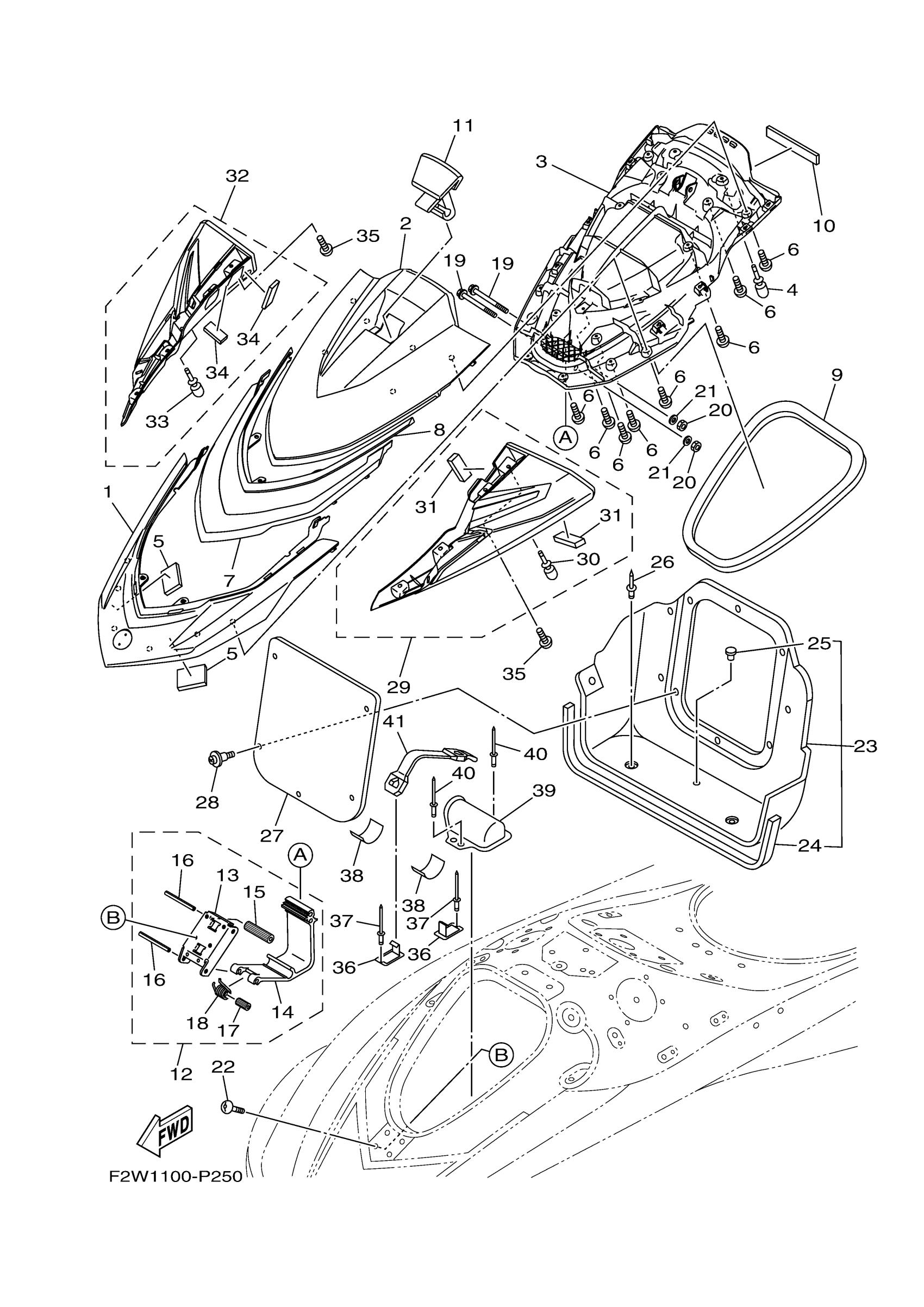

Yamaha VX1800AP (VXR) F2W1 2015 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM

F2W-U517B-02-P0

$131.33

1

LID, ENGINE ROOM

F2W-U517B-02-P1

$140.28

2

VISOR (DYMA)

F2W-U515N-00-P0

$128.34

2

VISOR (RM9)

F2W-U515N-00-P1

$128.34

3

INNER, ENGINE HATCH

F2W-U519G-00-00

$67.11

4

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

5

PACKING

F2W-U1743-00-00

$1.58

6

SCREW

F2S-U13C1-00-00

$2.52

7

ORNAMENT, CENTER

F2W-U517V-01-00

$232.82

8

ORNAMENT, CENTER

F2W-U517V-10-00

$252.22

9

PACKING 1

F2N-U2663-01-00

$47.28

10

DAMPER 1

F2C-U515D-00-00

$2.00

11

LOCK, LID

F2X-U517C-01-00

$7.89

12

HINGE ASSY.

F2X-U515A-01-00

$331.80

13

. PLATE, HINGE LID

F1K-U518E-04-00

$41.78

14

. HINGE, LID

F1K-U517D-05-00

$310.43

15

. ROLLER, DETENT

F2X-U135C-00-00

$10.43

16

PIN, HINGE

F1K-U517R-01-00

$3.37

17

. SPACER 1

F1K-U471E-03-00

$13.42

18

. SPRING, TORSION

F1K-U283B-02-00

$5.96

19

BOLT, FLANGE

90105-06826-00

$3.16

20

NUT, NYLON

9572R-06300-00

$2.93

21

WASHER

9299R-06200-00

$0.43

22

SCREW

F2N-67823-10-00

$2.16

23

LOCKER,BOW

F2X-U475B-00-00

$155.21

24

PACKING 4

F2C-U266C-00-00

$7.24

25

. PLUG, BLIND

90605-502U1-00

$2.30

26

RIVET

90269-08801-00

$1.23

27

PLATE, LOKER BOW

F2S-U475F-00-00

$11.48

28

RIVET

90269-08801-00

$1.23

29

MIRROR ASSY. 1

F2W-U590D-00-00

Unavailable

30

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

31

. PACKING 3

F1K-U266B-00-00

$1.23

32

MIRROR ASSY. 2

F2W-U590E-00-00

$138.79

33

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

34

. PACKING 3

F1K-U266B-00-00

$1.23

35

SCREW

F2X-U13C1-00-00

$1.72

36

HOOK A

F1K-U5772-04-00

$6.19

37

RIVET (EU0)

90267-48938-00

$4.72

38

MAT 2

F1K-U759C-00-00

$1.80

39

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

$4.33

40

RIVET, BLIND

90267-48802-00

$1.98

41

BAND 1

F2P-U828K-00-00

$6.17
