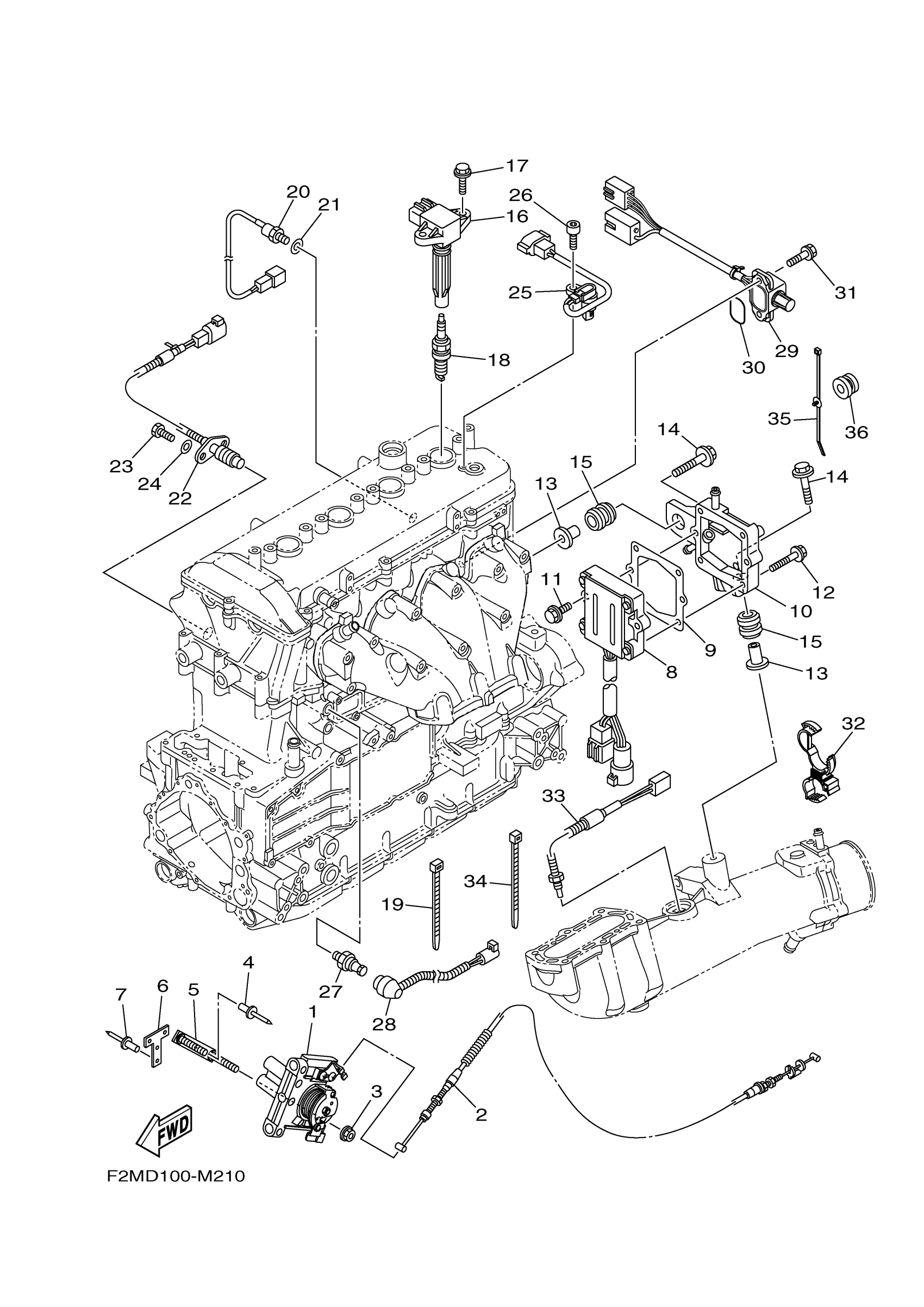

Yamaha VX1800AM (VXR) F2MD 2013 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

$437.30

2

CABLE, THROTTLE 1

6BU-26311-00-00

$98.49

3

NUT, NYLON (6J8)

95780-08300-00

$11.48

4

RIVET (EU0)

90267-48938-00

$4.72

5

BRACKET, THROTTLE

F2N-U7254-00-00

$11.18

6

PLATE

F2P-U8376-00-00

Unavailable

7

RIVET (EU0)

90267-48938-00

$4.72

8

RECTIFIER & REGULATOR ASSY

6S5-81960-11-00

$397.00

9

PLATE, RECTIFIER FITTING

6S5-81975-00-00

$11.93

10

COVER, RECTIFIER

6S5-81972-01-94

$146.25

11

BOLT, WITH WASHER

90119-06MA3-00

$2.80

12

BOLT, WITH WASHER

90119-06048-00

$2.24

13

COLLAR

90387-08M37-00

$10.28

14

BOLT, WITH WASHER

90119-08187-00

$3.02

15

GROMMET

90480-22M15-00

$11.01

16

IGNITION COIL ASSY

6S5-82310-10-00

Unavailable

17

BOLT,FLANGE (EW2)

90105-06903-00

Unavailable

18

PLUG, SPARK (NGK LFR6A-00)

LFR-6A000-00-00

$7.43

19

CLAMP

90465-13M18-00

$1.79

20

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

21

WASHER, PLATE

92990-10600-00

$2.66

22

THERMO SWITCH ASSY

6CR-82560-00-00

$73.71

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable

25

SENSOR, CAM POSITION

60E-85896-02-00

$150.79

26

BOLT,SOCKET

91380-06016-00

Unavailable

27

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$30.45

28

LEAD WIRE ASSY

6S5-81315-01-00

$50.73

29

EARTH PLATE COMP.

6CS-8273J-11-00

$177.60

30

O-RING (341)

93210-32172-00

Unavailable

31

BOLT, WITH WASHER

90119-06MA3-00

$2.80

32

CLAMP

90464-20008-00

Unavailable

33

THERMOSENSOR ASSY

6AA-85790-00-00

$103.73

34

CLAMP

90464-20005-00

$2.16

35

CLAMP

90464-31002-00

Unavailable

36

GROMMET 437147470000

90480-20132-00

Unavailable
