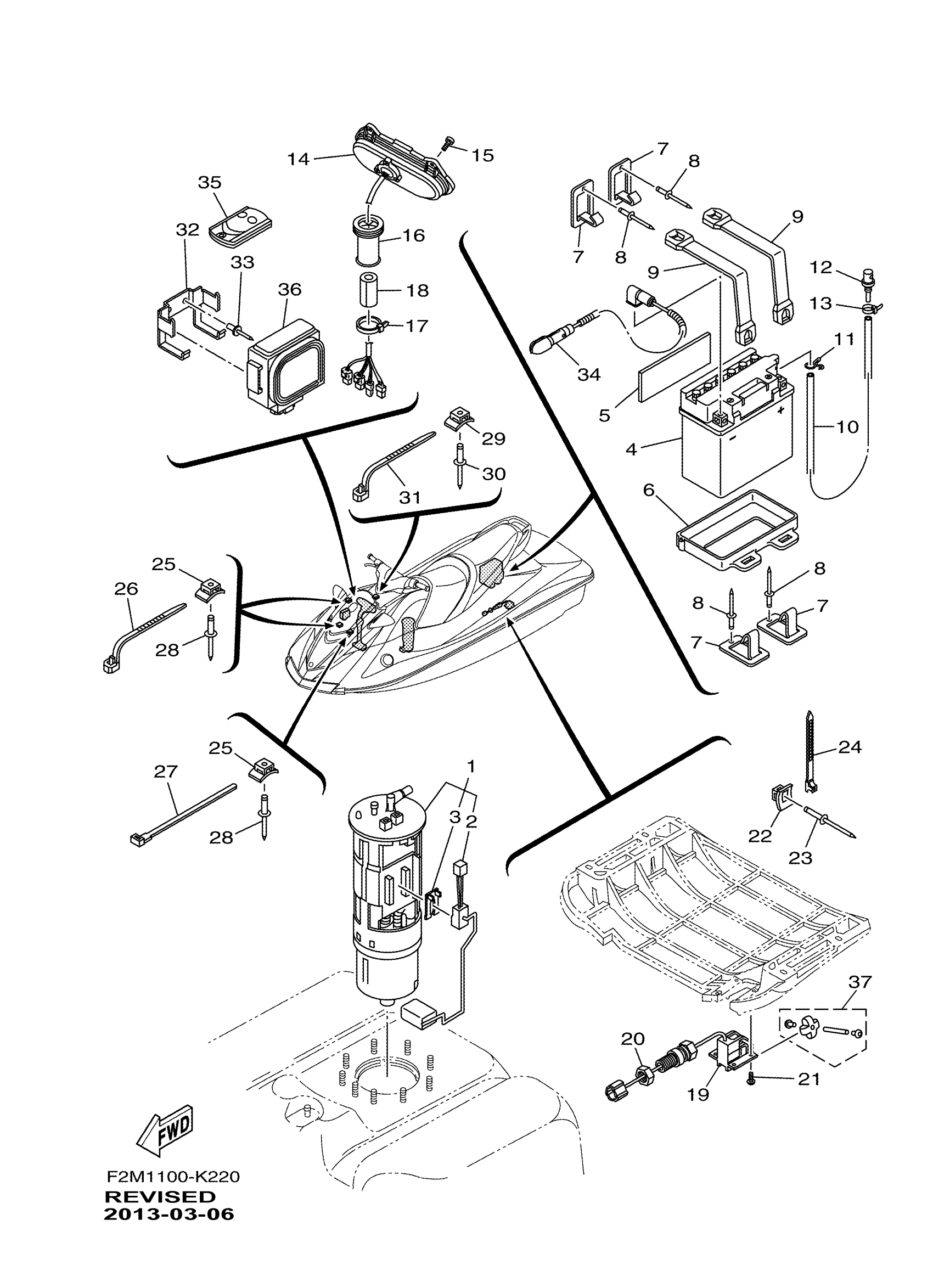

Yamaha VX1800AL (VXR) F2M7 2012 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

BATTERY ASSY

EU0-82110-08-00

Unavailable

5

PAD, BATTERY

F1K-U8221-00-00

$2.66

6

CASE, BATTERY

F1K-U8211-01-00

$21.20

7

HOOK A

F1K-U5772-04-00

$6.29

8

RIVET (EU0)

90267-48938-00

$5.00

9

BAND, BATTERY 1

F1K-U821D-01-00

$5.54

10

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

11

CLIP

90467-089U1-00

$1.44

12

NIPPLE

GJ3-6215F-00-00

$9.08

13

CLAMP

90465-10098-00

$1.68

14

METER ASSY

F1K-6820A-20-00

$856.05

15

BOLT,HEX. SOCKET BUTTON

90111-05009-00

$2.27

16

GROMMET

GU2-6822E-01-00

$24.98

17

CLAMP

90464-32801-00

$1.23

18

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

19

SENSOR SPEED

F1S-U8K31-03-00

$142.18

20

NUT

F2C-U151S-00-00

$1.59

21

SCREW, ROUND HEAD

90150-05807-00

$0.79

22

BASE, CLAMP

F1W-U828M-00-00

$1.23

23

RIVET, BLIND

90267-489U6-00

$1.37

24

CLAMP

90464-32801-00

$1.23

25

BASE, CLAMP

F1W-U828M-00-00

$1.23

26

CLAMP

90464-32801-00

$1.23

27

BAND

90601-200U2-00

$3.16

28

RIVET, BLIND

90267-489U6-00

$1.37

29

BASE, CLAMP

F1W-U828M-00-00

$1.23

30

RIVET, BLIND

90267-489U6-00

$1.37

31

CLAMP

90464-32801-00

$1.23

32

BRACKET

F1W-U826C-00-00

$18.17

33

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

34

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14

35

XMTR. COMP.

6B6-86261-00-00

$228.48

36

RECEIVER COMPLETE

6B6-86265-00-00

$427.26

37

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63
