2012 Yamaha VXR (VX1800AL) Control Cable Diagram

← All diagrams

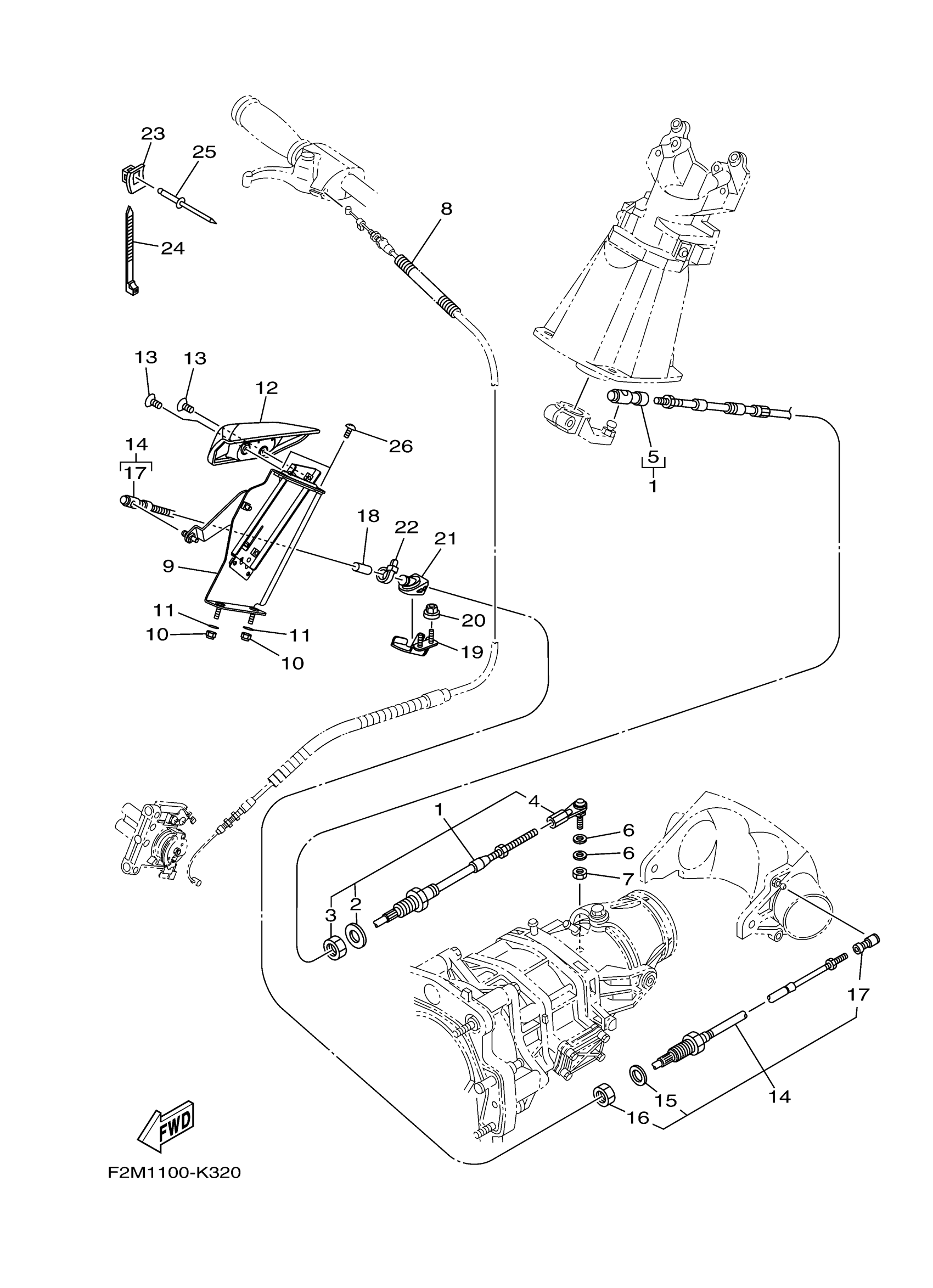

Find the part on the Control Cable diagram for your 2012 Yamaha VXR (VX1800AL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha VXR (VX1800AL) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F2N-61481-02-00

1
Out of stock

2

. PACKING C

F1B-61438-00-00

1
Out of stock

3

NUT

F1B-6151S-01-00

1
Out of stock

4

. STUD, JOINT BALL

F1B-61461-02-00

1
Out of stock

5

. BALL JOINT ASSY

F2N-61460-00-00

1
Out of stock

6

WASHER, PLATE

90201-06906-00

1
Out of stock

7

NUT

9538R-06700-00

1
Out of stock

8

TUBE

90447-06803-00

1
Out of stock

9

REMOCON. LEVER ASSY.

F2N-U134A-00-00

1
Out of stock

10

NUT, NYLON

9572R-06300-00

1
Out of stock

11

WASHER

9299R-06200-00

1
Out of stock

12

GRIP

F2N-U2714-01-00

1
Out of stock

13

SCREW, COUNTERSUNK

90151-06815-00

1
Out of stock

14

CABLE,REVERSE

F2N-6149C-01-00

1
Out of stock

15

. PACKING C

F1B-61438-00-00

1
Out of stock

16

NUT

F1B-6151S-01-00

1
Out of stock

17

. BALL JOINT ASSY

F1B-61460-00-00

1
Out of stock

18

PACKING, CABLE

F1W-U146G-00-00

1
Out of stock

19

BRACKET,STOPPER CABLE

F2N-U1467-00-00

1
Out of stock

20

NUT, LOCK

F2N-U142L-00-00

1
Out of stock

21

PACKING, CABLE

F2N-U146G-00-00

1
Out of stock

22

CLAMP

90465-10098-00

1
Out of stock

23

BASE, CLAMP

F1W-U828M-00-00

1
Out of stock

24

CLAMP

90464-32801-00

1
Out of stock

25

RIVET, BLIND

90267-489U6-00

1
Out of stock

26

SCREW

F2N-67823-10-00

1
Out of stock
