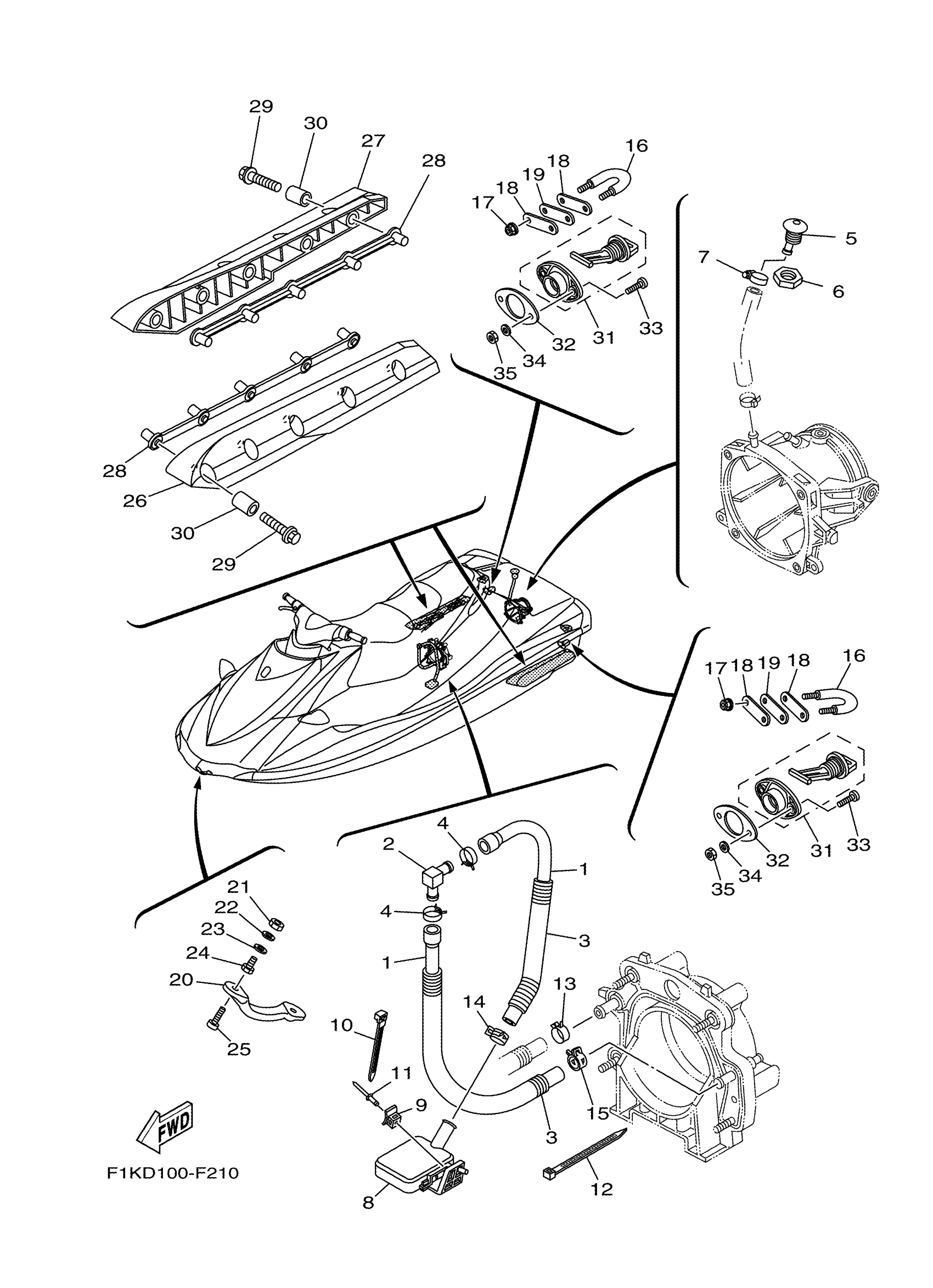

Yamaha VX1100G (WaveRunner VX) F1KV 2008 HULL DECK Diagram

#

Description
Price

1

HOSE (L710)

90445-20805-00

$5.15

2

JOINT, HOSE

61X-51162-00-00

$18.92

3

HOSE(63M)

90446-27M55-00

$14.36

4

CLIP

90467-18804-00

$2.72

5

SPOUT

FN8-6269B-00-00

$22.49

6

NUT

EU0-61652-00-00

$11.48

7

BAND, HOSE 18

90601-118UF-00

$2.07

8

STRAINER, BILGE

F1B-U761D-02-00

$5.15

9

CLAMP COMP (EU0)

90600-91736-00

$6.22

10

CLAMP

90464-32801-00

$1.23

11

RIVET, BLIND

90267-489U8-00

$0.99

12

BAND

90601-200U1-00

$2.77

13

CLIP

90467-21800-00

$2.87

14

CLIP

90467-200A0-00

$7.40

15

CLIP

90467-210A0-00

$5.45

16

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

17

NUT, NYLON (6J8)

95780-08300-00

$10.55

18

PLATE A

GP7-U4953-10-00

$3.52

19

PACKING

F1B-U1653-03-00

Unavailable

20

BOWEYE 1

F0X-61624-00-00

$60.49

20

BOW EYE 1

F1K-61624-00-00

$42.60

21

NUT.HEX.(COARS)

99780-12600-00

$2.80

22

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

23

WASHER

F0X-61637-00-00

$1.29

24

NUT

F0X-61652-01-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

26

STABILIZER LH

F1S-U883N-01-00

$33.32

27

STABILIZER RH

F1S-U883P-01-00

$33.32

28

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

29

BOLT,WASHER BASED

90105-088F9-00

$2.91

30

SPACER

F1K-U8169-00-00

Unavailable

31

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

32

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

33

SCREW, PAN HEAD

9788R-05025-00

$2.52

34

WASHER

9299R-05200-00

$3.16

35

NUT, FLANGE

9572R-05300-00

$1.43
