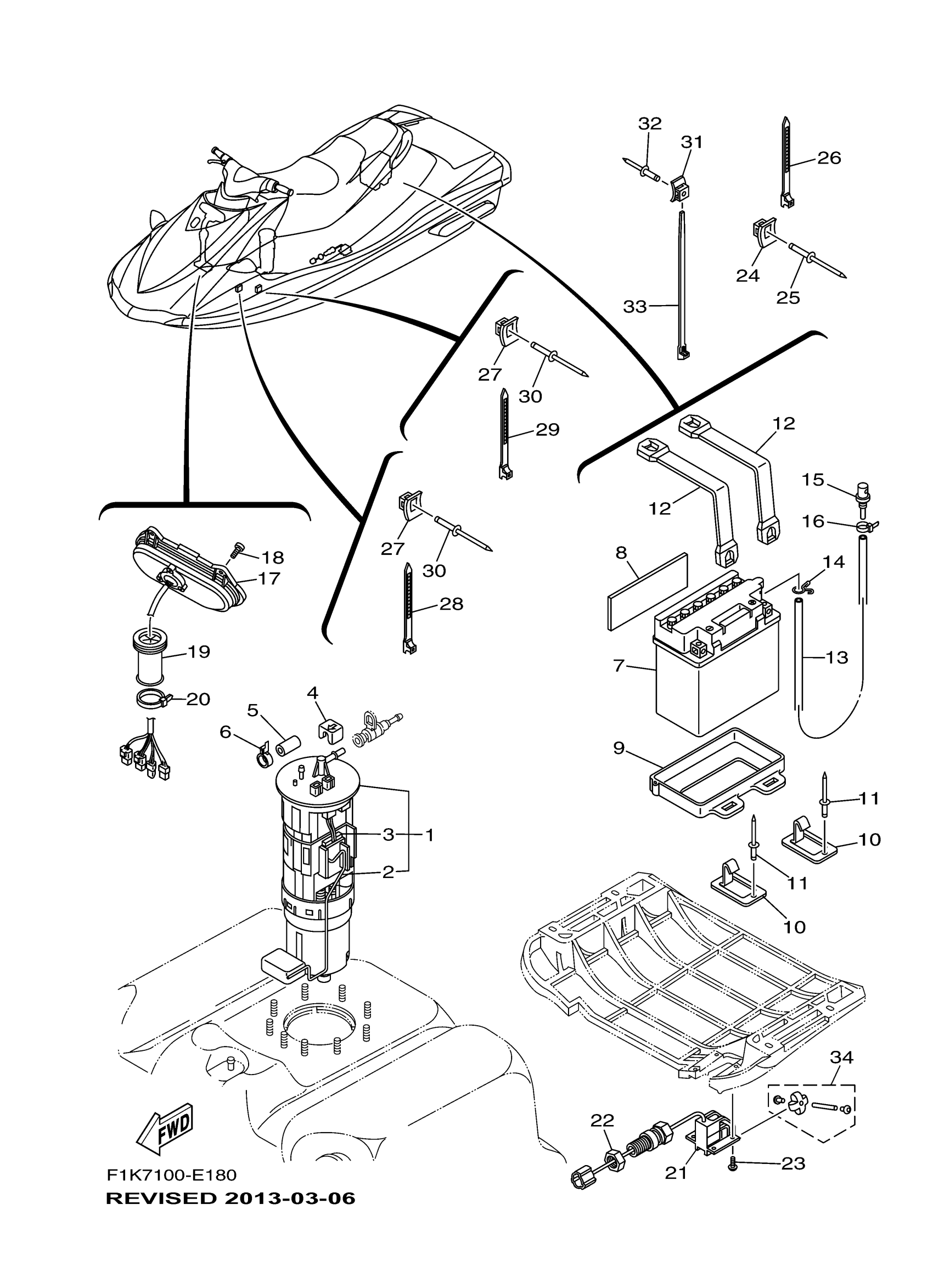

Yamaha VX1100F (WaveRunner VX) F1KK 2007 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

$243.92

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

COVER

60E-24474-00-00

$3.64

5

PLUG

6D3-24481-00-00

$5.45

6

CLIP

6D3-24387-00-00

$6.82

7

BATTERY ASSY

EU0-82110-08-00

Unavailable

8

PAD, BATTERY

F1K-U8221-00-00

$2.66

9

CASE, BATTERY

F1K-U8211-01-00

$21.20

10

HOOK A

F1K-U5772-01-00

Unavailable

11

RIVET (EU0)

90267-48938-00

$5.00

12

BAND, BATTERY 1

F1K-U821D-01-00

$5.54

13

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

14

CLIP

90467-089U1-00

$1.44

15

NIPPLE

GJ3-6215F-00-00

$9.08

16

CLAMP

90465-10098-00

$1.68

17

METER ASSY

F1K-6820A-12-00

$915.14

18

BOLT,HEX. SOCKET BUTTON

90111-05009-00

$2.27

19

GROMMET

GU2-6822E-01-00

$24.98

20

CLAMP

90464-32801-00

$1.23

21

SENSOR SPEED

F1S-U8K31-03-00

$142.18

22

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

23

SCREW, ROUND HEAD

90150-05807-00

$0.79

24

CLAMP COMP (EU0)

90600-91736-00

Unavailable

25

RIVET, BLIND

90267-489U6-00

$1.37

26

CLAMP

90464-32801-00

$1.23

27

CLAMP COMP (EU0)

90600-91736-00

Unavailable

28

CLAMP

90464-32801-00

$1.23

29

BAND

90601-200U2-00

$3.16

30

RIVET, BLIND

90267-489U6-00

$1.37

31

CLAMP COMP (EU0)

90600-91736-00

Unavailable

32

RIVET, BLIND

90267-489U6-00

$1.37

33

CLAMP

90464-32801-00

$1.23

34

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63
