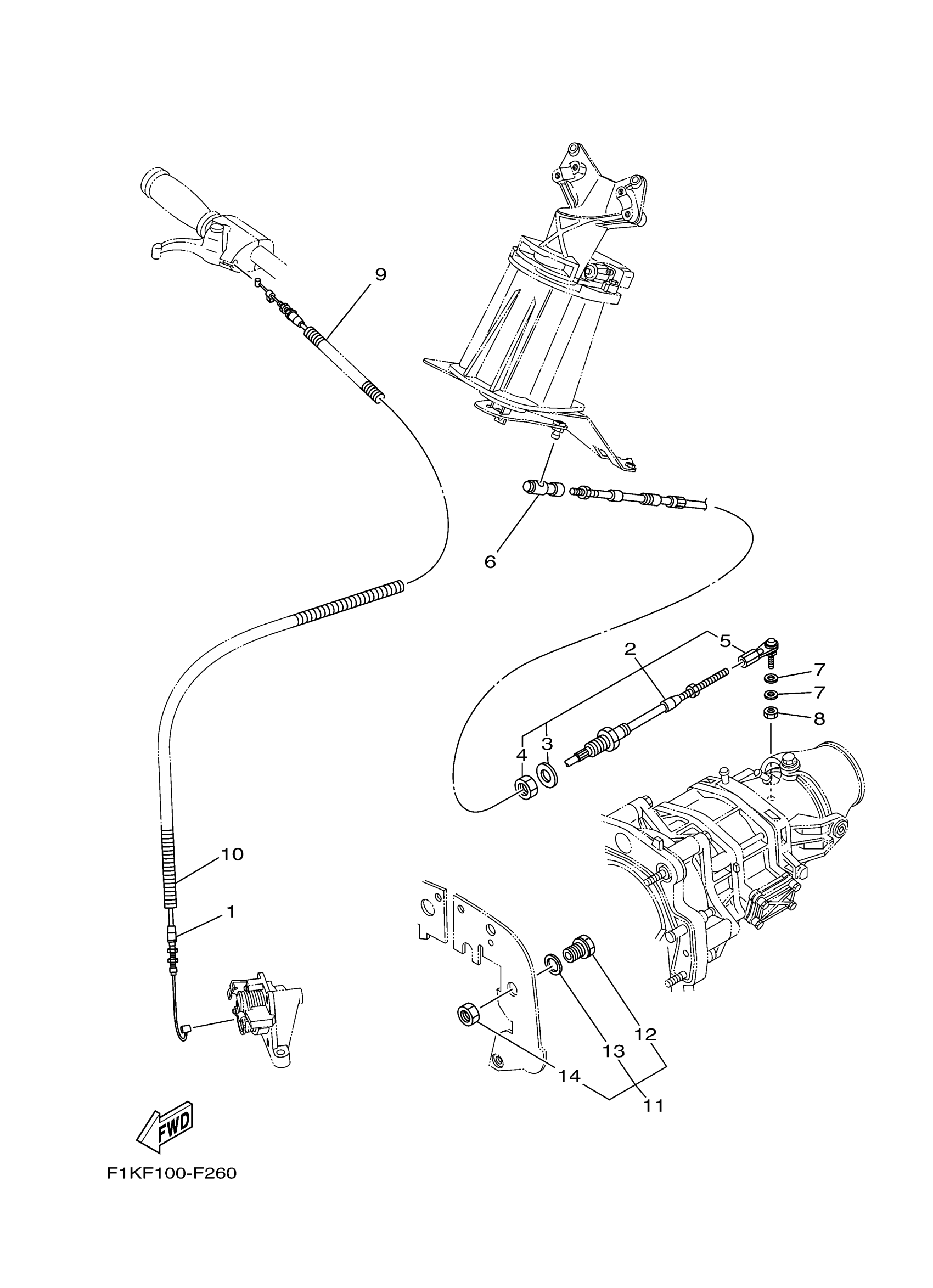

Yamaha VX1100F (WaveRunner VX) F1KK 2007 CONTROL CABLE Diagram

#

Description

Price

1

CABLE, THROTTLE 1

6D3-26311-02-00

$113.62

2

CABLE, STEERING

F1K-61481-03-00

Unavailable

3

. PACKING C

F1B-61438-00-00

$2.72

4

NUT

F1B-6151S-01-00

$14.31

5

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

6

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

7

WASHER, PLATE

90201-06906-00

$2.80

8

NUT

9538R-06700-00

$1.01

9

TUBE

90447-06802-00

Unavailable

10

TUBE

90447-06800-00

Unavailable

11

CONNECTOR, CABLE

F1K-67267-00-00

$46.95

12

. BODY

F1K-61436-00-00

$53.99

13

. PACKING C

F1B-61438-00-00

$2.72

14

NUT

F1B-6151S-01-00

$14.31
