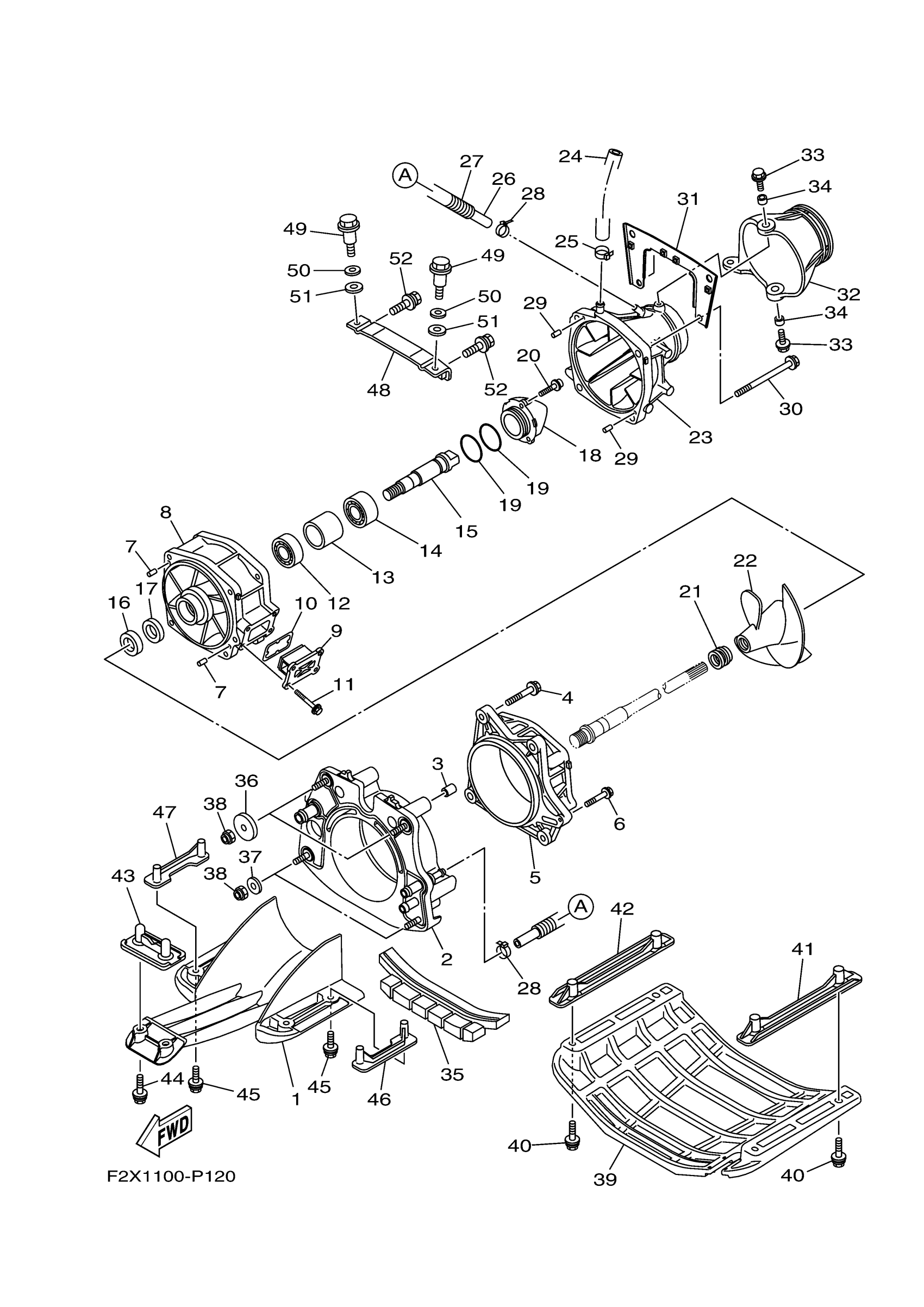

Yamaha VX1100CP (VX) F2X7 2015 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6EX-R1333-00-00

$73.35

2

PLATE, TRANSOM

6CS-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$3.41

4

BOLT, WITH WASHER

90119-10811-00

$1.37

5

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

6

BOLT, WITH WASHER

90119-06894-00

$1.37

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

6EX-G6882-00-00

$6.59

10

. O-RING

66V-42414-00-00

$5.18

11

BOLT,WITH WASHER

90119-06890-00

$1.07

12

BEARING

93306-27211-00

$37.41

13

SPACER 1

6EX-G5538-00-00

$8.32

14

BEARING (6K8)

93306-205U1-00

$19.73

15

SHAFT, DRIVE 4

6EX-45514-00-00

$128.77

16

. OIL SEAL

93101-21001-00

$19.63

17

. OIL SEAL

93101-21002-00

$19.63

18

CAP

6EX-R1326-00-00

$12.11

19

. O-RING

93210-464A3-00

$2.95

20

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

21

CAP, IMPELLER

6D3-R1319-00-00

$2.00

22

IMPELLER

6D3-R1321-03-00

Unavailable

23

NOZZLE

6EX-R1318-01-00

$78.77

24

HOSE 1

6CN-U72M2-00-00

$5.44

25

BAND, HOSE 18

90601-118UF-00

$2.07

26

HOSE (L355)

90445-14807-00

$1.74

27

HOSE (L320)

90446-20MF5-00

$4.57

28

CLAMP

90465-10098-00

$1.68

29

PIN, DOWEL (614)

93606-12019-00

$3.05

30

BOLT, WITH WASHER

90119-10807-00

$5.44

31

BRACKET 1

6EX-R1341-00-00

$15.14

32

NOZZLE, DEFLECTOR

6EX-R1313-00-00

$20.81

33

BOLT, WITH WASHER

90119-08841-00

$1.01

34

COLLAR(6R7)

90387-08M06-00

Unavailable

35

SPACER

F2X-U72C0-00-00

$15.07

36

WASHER

F1S-U725E-01-00

$7.89

37

WASHER, PLATE

90201-10801-00

$3.52

38

NUT, NYLON

9572R-10300-00

$3.37

39

PLATE 2

F2X-U273B-00-00

$171.20

40

BOLT, WITH WASHER

90119-08829-00

$3.88

41

BRACKET 2

F2X-U8572-00-00

$12.91

42

BRACKET 2

F2X-U8572-00-00

$12.91

43

BRACKET, 3

F2S-U8577-00-00

$15.07

44

BOLT, WITH WASHER

90119-08829-00

$3.88

45

BOLT, WITH WASHER

90119-08829-00

$3.88

46

BRACKET 1

F2X-U8571-00-00

$12.91

47

BRACKET 1

F2X-U8571-00-00

$12.91

48

BRACKET

F2C-U7557-01-00

$30.29

49

BOLT

90109-08043-00

$4.09

50

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

51

GASKET

90430-12002-00

$1.81

52

BOLT, WITH WASHER

90119-08800-00

$4.09
