2015 Yamaha VX (VX1100CP) Intake Diagram

← All diagrams

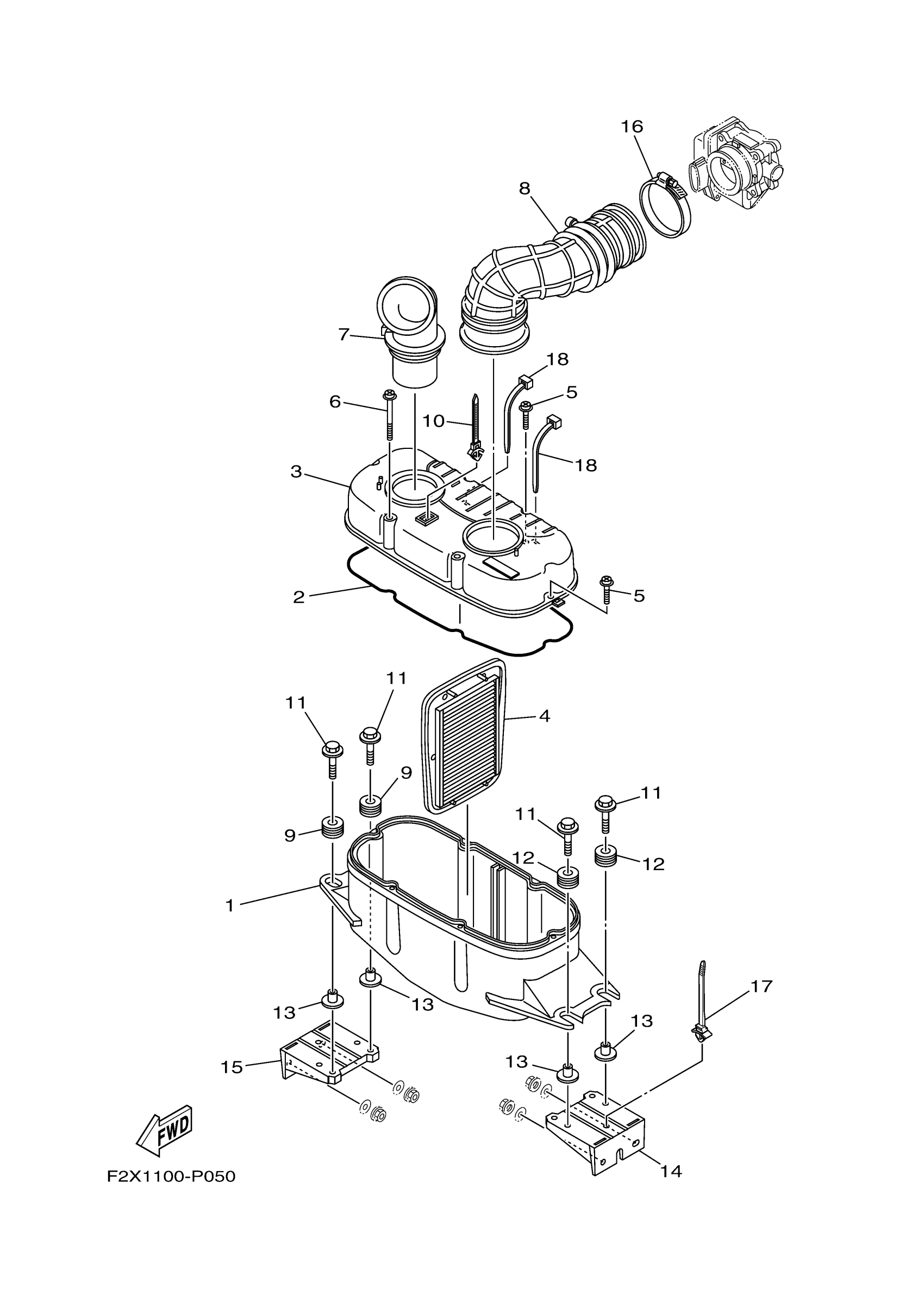

Find the part on the Intake diagram for your 2015 Yamaha VX (VX1100CP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha VX (VX1100CP) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

6D3-14411-01-00

1
Out of stock

2

SEAL

1VJ-14462-00-00

1

$16.08

In stock

3

CASE, AIR CLEANER 2

6D3-14421-03-00

1
Out of stock

4

ELEMENT, AIR CLEANER

6D3-14451-00-00

1

$80.77

In stock

5

SCREW, WITH WASHER

90159-05013-00

1

$2.22

In stock

6

SCREW, WITH WASHER

90159-05014-00

1

$2.22

In stock

7

DUCT

6D3-14437-00-00

1

$27.99

In stock

8

PIPE

6D3-14419-01-00

1

$92.49

In stock

9

GROMMET

90480-22M15-00

1

$11.47

In stock

10

CLAMP(2TV)

90464-10112-00

1

$6.18

In stock

11

BOLT, WITH WASHER

90119-08187-00

1

$2.94

In stock

12

GROMMET

90480-22M15-00

1

$11.47

In stock

13

COLLAR

90387-08M37-00

1

$10.09

In stock

14

BRACKET 2

F2N-U8572-00-00

1

$16.91

In stock

15

BRACKET 2

F2N-U8572-00-00

1

$16.91

In stock

16

BAND, HOSE 75

90601-175UR-00

1
Out of stock

17

CLAMP

90464-38800-00

—

$4.28

In stock

18

CLAMP(JN6)

90464-40825-00

—

$1.77

In stock
