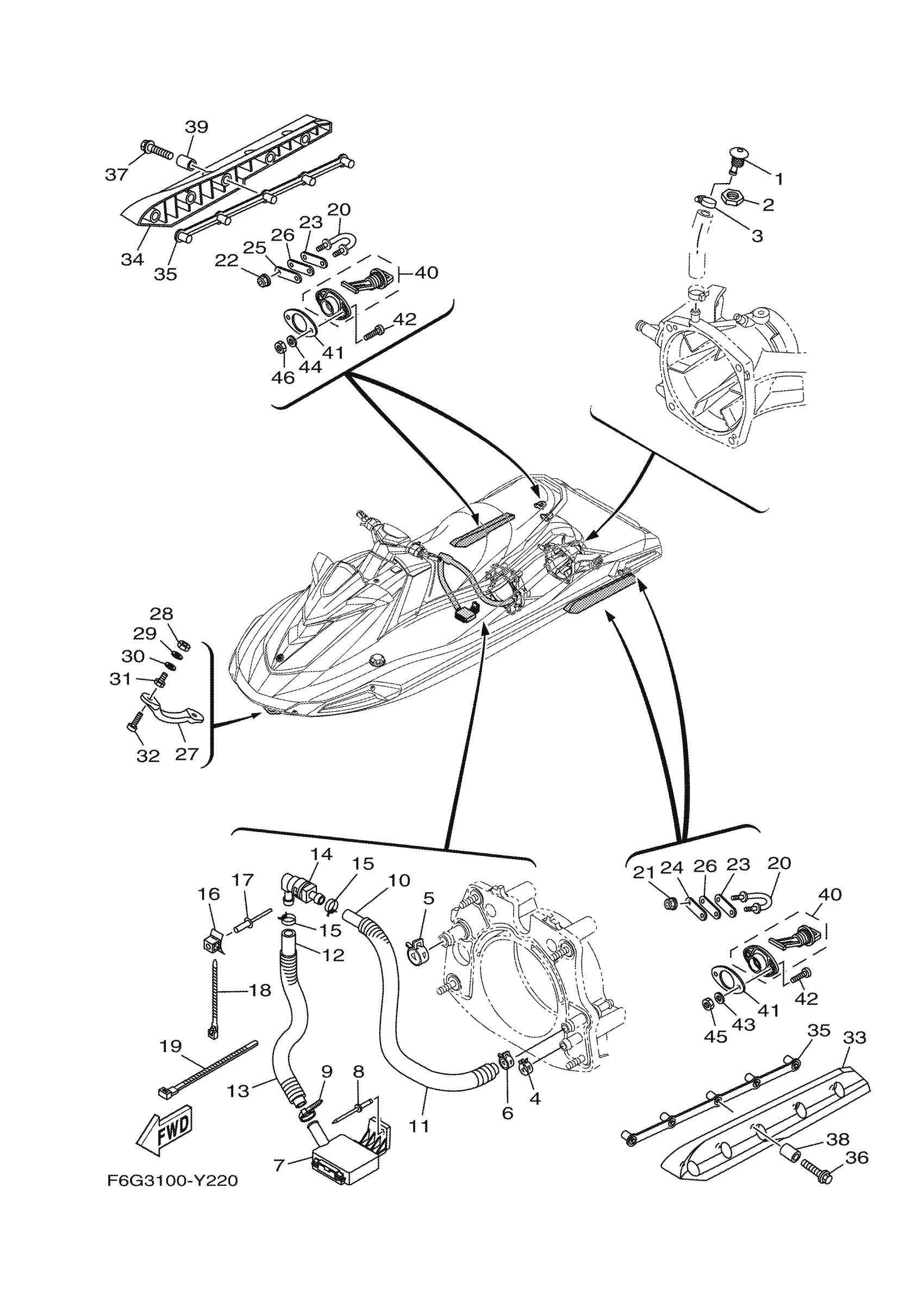

Yamaha VX1050GY (VX-C) F6G3 2023 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.87

2

NUT

EU0-61652-00-00

$11.77

3

BAND, HOSE 18

90601-118UF-00

$2.22

4

CLIP

90467-200A3-00

$6.07

5

CLIP

90467-240A3-00

$2.58

6

CLIP

90467-190A2-00

$3.02

7

STRAINER, BILGE

F1B-U761D-02-00

$5.35

8

RIVET, BLIND

90267-489U8-00

$1.37

9

CLAMP

90465-10098-00

$2.24

10

HOSE 2

6EY-U771G-00-00

$11.93

11

TUBE,2

6EY-U773E-00-00

$6.04

12

HOSE (L860)

90445-20804-00

$12.67

13

TUBE,2

6EX-U773E-00-00

$5.97

14

JOINT, HOSE

68N-5112T-00-00

$47.39

15

CLIP

90467-190A2-00

$3.02

16

BASE, CLAMP

F1W-U828M-00-00

$1.29

17

RIVET, BLIND

90267-48802-00

$1.98

18

CLAMP

F2C-U4256-00-00

$3.21

19

CLAMP

90464-32801-00

$1.29

20

STERN EYE

F2N-U1628-02-00

$5.17

21

NUT, NYLON (6J8)

95780-08300-00

$11.48

22

NUT, NYLON (6J8)

95780-08300-00

$11.48

23

PLATE A

GP7-U4953-10-00

$3.65

24

PLATE A

GP7-U4953-10-00

$3.65

25

PLATE A

GP7-U4953-10-00

$3.65

26

PACKING

F1B-U1653-03-00

Unavailable

27

BOW EYE 1

F1K-61624-00-00

$43.69

28

NUT.HEX.(COARS)

99780-12600-00

$2.80

29

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

30

WASHER

F0X-61637-00-00

$1.24

31

NUT

F0X-61652-01-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.02

33

STABILIZER LH

F1S-U883N-01-00

$32.82

34

STABILIZER RH

F1S-U883P-01-00

$32.82

35

BRACKET,STABILIZER

F1X-U883T-02-00

$43.27

36

BOLT,WASHER BASED

90105-088F9-00

$2.91

37

BOLT,WASHER BASED

90105-088F9-00

$2.91

38

SPACER

F2N-U8169-10-00

$1.23

39

SPACER

F2N-U8169-10-00

$1.23

40

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.91

41

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

42

SCREW, PAN HEAD

9788R-05025-00

$2.66

43

WASHER

9299R-05200-00

$4.60

44

WASHER

9299R-05200-00

$4.60

45

NUT, FLANGE

9572R-05300-00

$1.51

46

NUT, FLANGE

9572R-05300-00

$1.51
