2019 Yamaha VX-C (VX1050GU) Graphics Diagram

← All diagrams

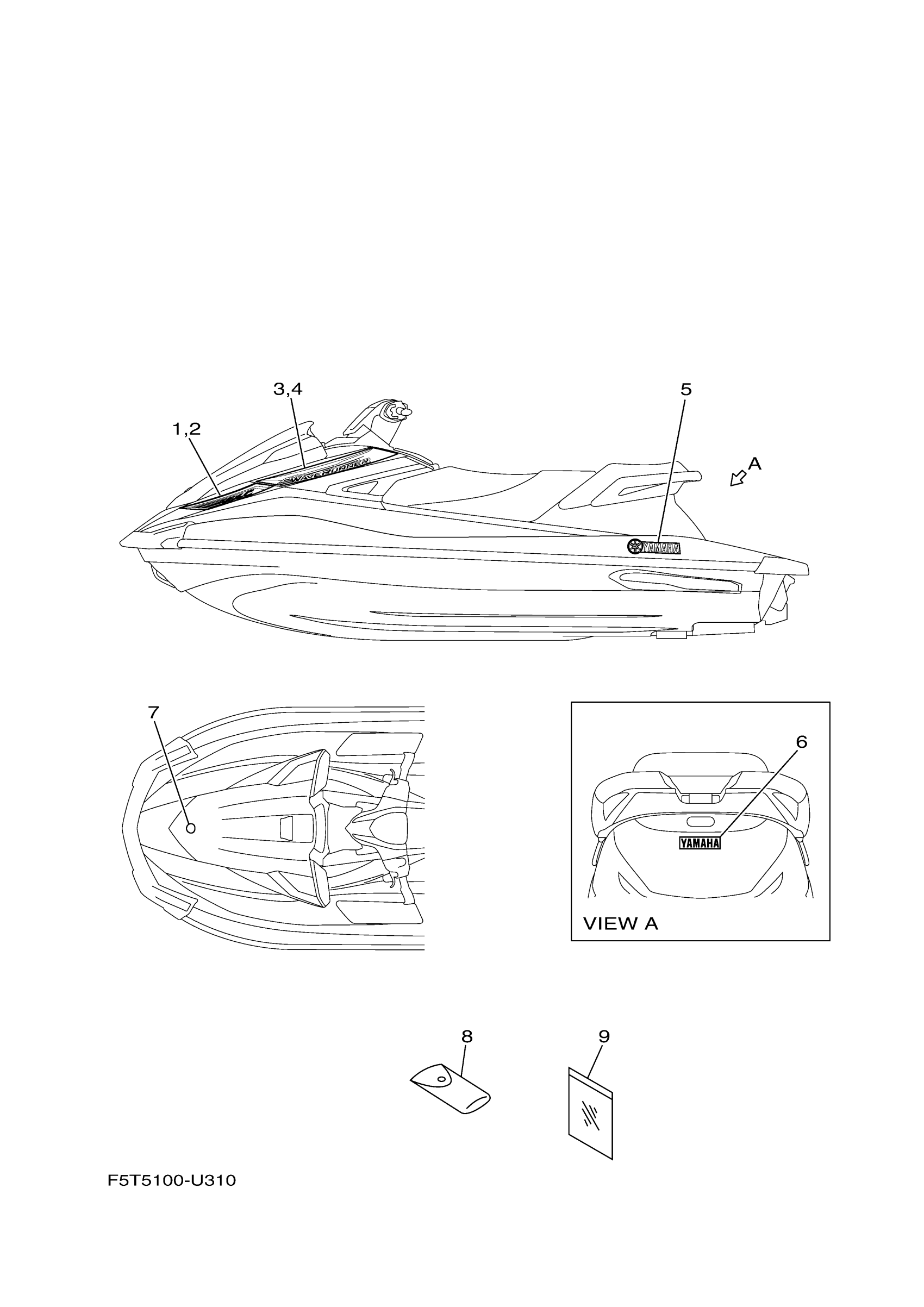

Find the part on the Graphics diagram for your 2019 Yamaha VX-C (VX1050GU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Yamaha VX-C (VX1050GU) Graphics Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 3

F5T-U417D-60-00

1
Out of stock

2

GRAPHIC 4

F5T-U417E-60-00

1
Out of stock

3

GRAPHIC 5

F5T-U417F-60-00

1
Out of stock

4

GRAPHIC 6

F5T-U417G-60-00

1
Out of stock

5

EMBLEM, YAMAHA

F2N-U411C-00-00

1
Out of stock

6

EMBLEM, YAMAHA

F1B-U411C-02-00

1
Out of stock

7

EMBLEM, TUNING FORK

F3Y-U411H-02-00

1
Out of stock

8

TOOL SET

F1B-65986-13-00

1
Out of stock

9

BAG, VINYL

F3Y-U5901-00-00

1
Out of stock
