2019 Yamaha VX-C (VX1050GU) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2019 Yamaha VX-C (VX1050GU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

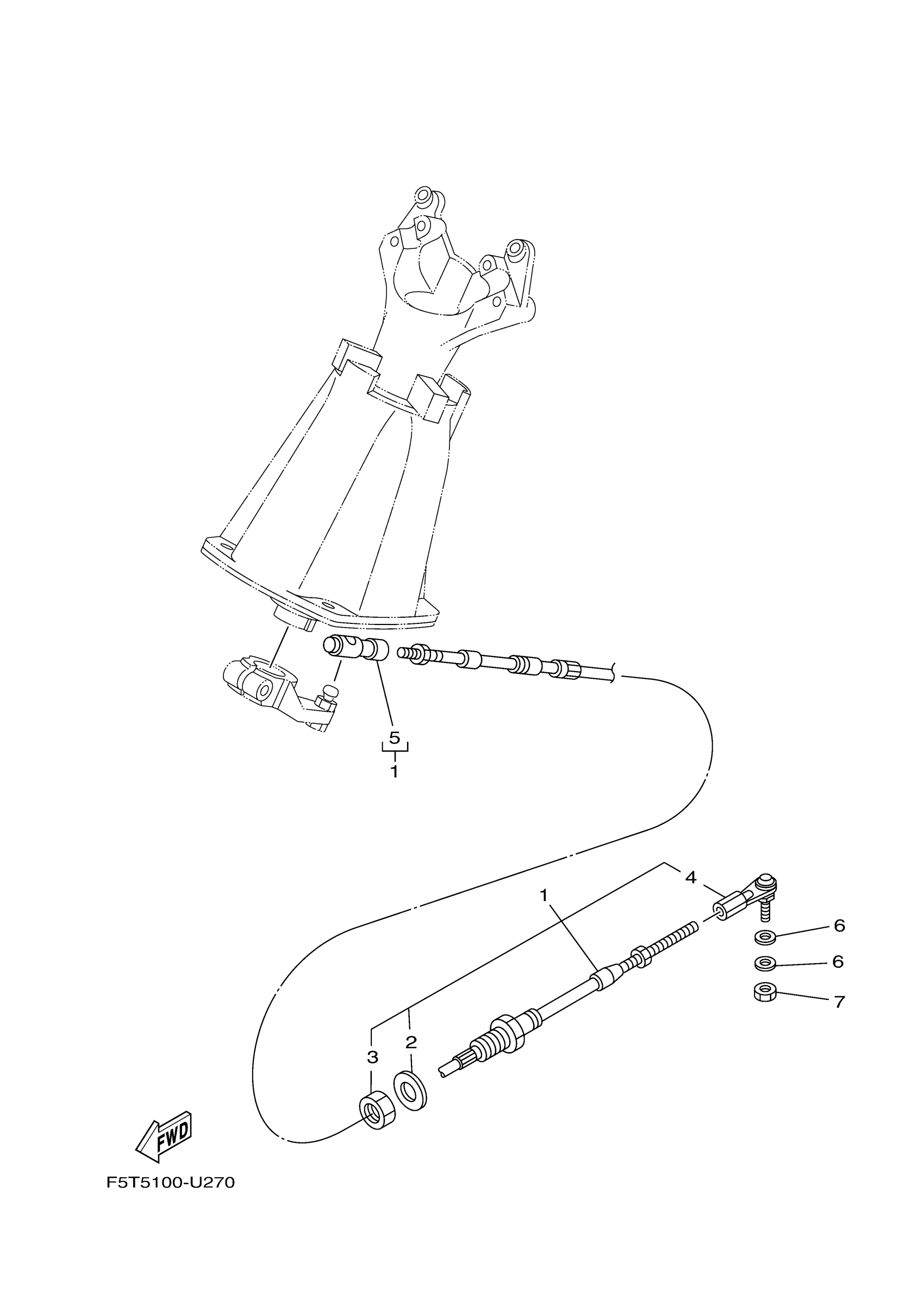

2019 Yamaha VX-C (VX1050GU) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F2N-61481-02-00

1
Out of stock

2

. PACKING C

F1B-61438-00-00

1

$2.57

In stock

3

NUT

F1B-6151S-01-00

1

$14.49

In stock

4

. STUD, JOINT BALL

F1B-61461-02-00

1

$85.53

In stock

5

. BALL JOINT ASSY

F2N-61460-00-00

1

$48.49

In stock

6

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

7

NUT

9538R-06700-00

1
Out of stock
