Partiron

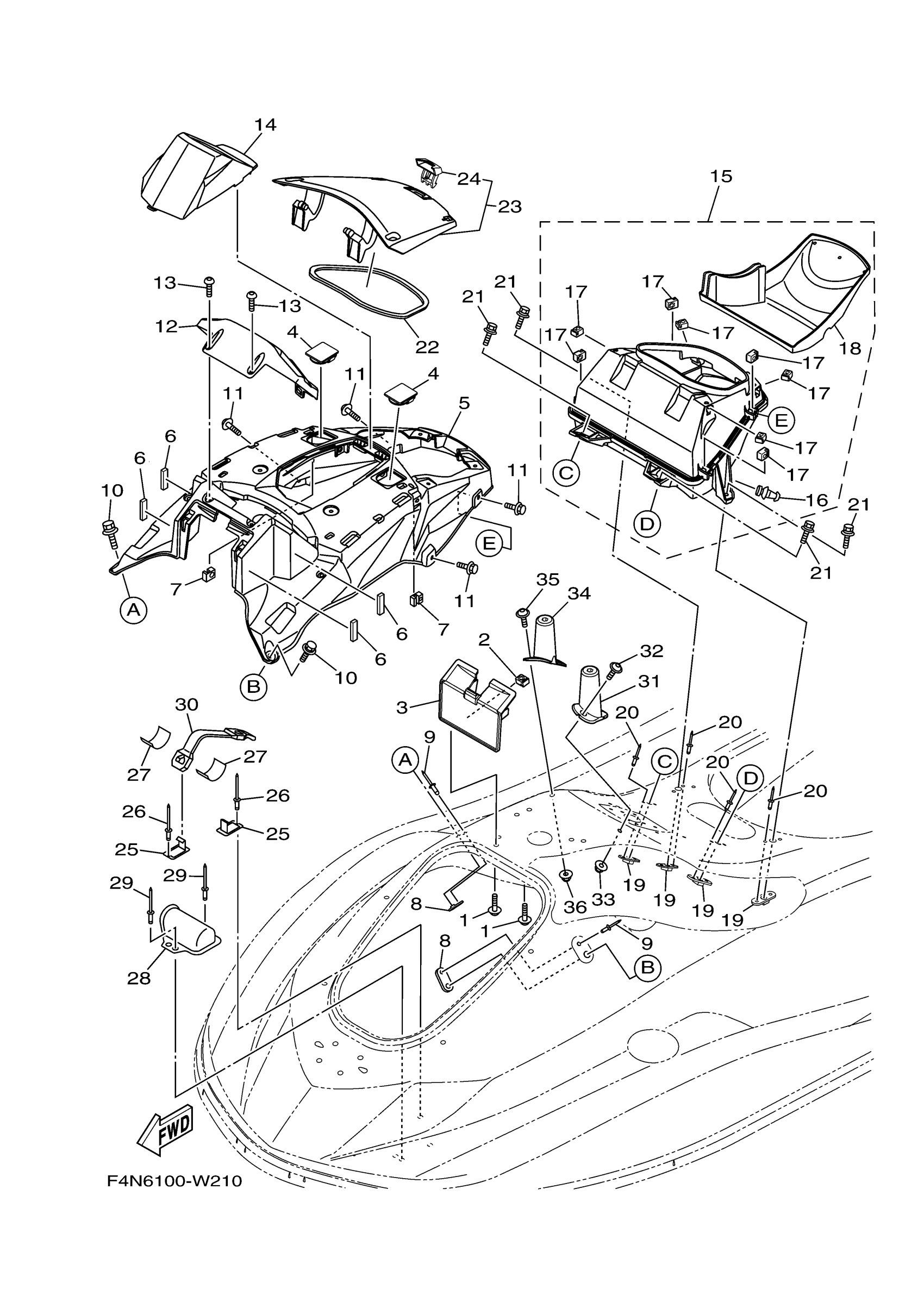

Yamaha VX1050GA (VX-C) F6G4 2024 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06880-00

$3.52

2

NUT

F3X-U517E-00-00

$1.23

3

HOOK,LID LOCK

F4P-U517F-00-00

$21.20

4

CAP

F4P-U5568-00-00

$2.52

5

COVER, CENTER

F4N-U5554-00-00

$111.88

6

. PACKING 3

F1K-U266B-00-00

$1.15

7

NUT

F3X-U517E-00-00

$1.23

8

PLATE, FIX

F2X-U5175-00-00

$1.80

9

RIVET (EU0)

90267-48938-00

$5.00

10

BOLT, WITH WASHER

90119-06878-00

$3.43

11

BOLT

F4P-U1355-00-00

$0.86

12

COVER METER

F6G-U8262-00-00

$18.92

13

SCREW

F2S-U13C1-00-00

$2.36

14

COVER, FRONT

F4N-U513M-00-00

$14.35

15

GLOVE BOX HATCH AS

F4N-U1708-01-00

$124.23

16

. SEAL

F3X-U2723-00-00

$2.16

17

NUT

F3X-U517E-00-00

$1.23

18

INNER, CASE

F4N-U591L-00-00

Unavailable

19

BRACKET

F2C-U826C-00-00

$3.79

20

RIVET 1

F4P-U516R-01-00

$4.87

21

BOLT, WITH WASHER

90119-08828-00

$2.30

22

PACKING CASE

F4N-U519D-02-00

$46.95

23

GLOVE BOX COVER ASSY

F4N-U4705-01-00

$41.63

24

. LOCK

F4N-U2875-00-00

$3.95

25

HOOK A

F1K-U5772-04-00

$6.29

26

RIVET (EU0)

90267-48938-00

$5.00

27

MAT 2

F1K-U759C-00-00

$1.72

28

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

$4.39

29

RIVET, BLIND

90267-48802-00

$1.98

30

BAND 1

F2P-U828K-00-00

$5.87

31

RFM.,DASH BOARD 1

F4N-U974A-00-00

$12.86

32

SCREW

F3X-U7823-12-00

$1.25

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

RFM.,DASH BOARD 2

F4N-U974B-00-00

$12.86

35

SCREW

F3X-U7823-12-00

$1.25

36

NUT, LOCK

F2N-U142L-00-00

$1.00
