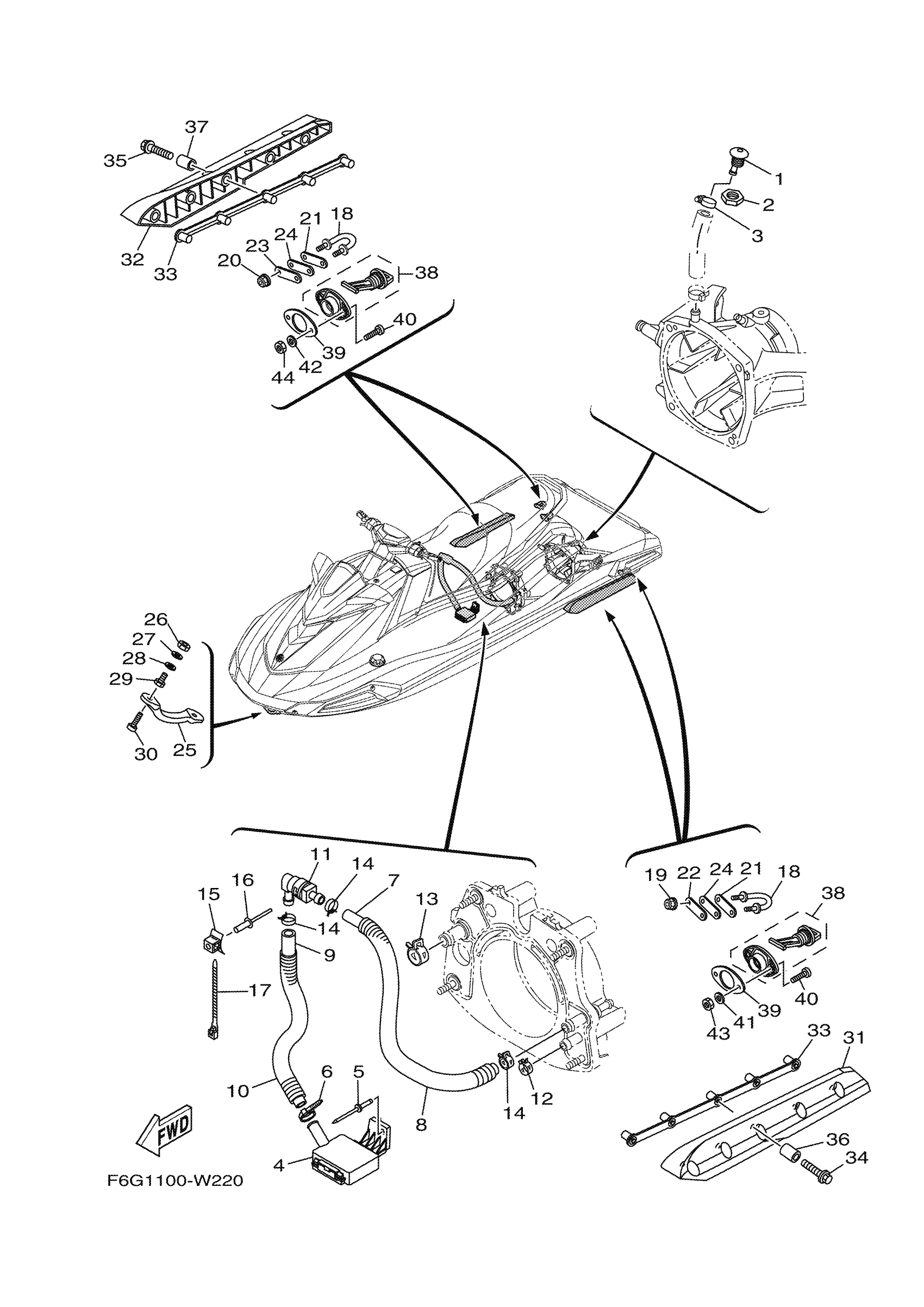

Yamaha VX1050G-X (VX-C) F6G2 2022 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

STRAINER, BILGE

F1B-U761D-02-00

$5.15

5

RIVET, BLIND

90267-489U8-00

$0.99

6

CLAMP

90465-10098-00

$1.68

7

HOSE 2

6EY-U771G-00-00

$12.11

8

TUBE,2

6EY-U773E-00-00

$6.14

9

HOSE (L860)

90445-20804-00

$12.86

10

TUBE,2

6EX-U773E-00-00

$6.06

11

JOINT, HOSE

68N-5112T-00-00

$48.96

12

CLIP

90467-200A3-00

$5.92

13

CLIP

90467-240A3-00

$2.69

14

CLIP

90467-190A2-00

$3.18

15

BASE, CLAMP

F1W-U828M-00-00

$1.23

16

RIVET, BLIND

90267-48802-00

$1.98

17

CLAMP

F2C-U4256-00-00

$3.26

18

STERN EYE

F2N-U1628-02-00

$4.96

19

NUT, NYLON (6J8)

95780-08300-00

$10.55

20

NUT, NYLON (6J8)

95780-08300-00

$10.55

21

PLATE A

GP7-U4953-10-00

$3.52

22

PLATE A

GP7-U4953-10-00

$3.52

23

PLATE A

GP7-U4953-10-00

$3.52

24

PACKING

F1B-U1653-03-00

Unavailable

25

BOW EYE 1

F1K-61624-00-00

$42.60

26

NUT.HEX.(COARS)

99780-12600-00

$2.80

27

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

28

WASHER

F0X-61637-00-00

$1.29

29

NUT

F0X-61652-01-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

31

STABILIZER LH

F1S-U883N-01-00

$33.32

32

STABILIZER RH

F1S-U883P-01-00

$33.32

33

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

34

BOLT,WASHER BASED

90105-088F9-00

$2.91

35

BOLT,WASHER BASED

90105-088F9-00

$2.91

36

SPACER

F2N-U8169-10-00

$1.15

37

SPACER

F2N-U8169-10-00

$1.15

38

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

39

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

40

SCREW, PAN HEAD

9788R-05025-00

$2.52

41

WASHER

9299R-05200-00

$3.16

42

WASHER

9299R-05200-00

$3.16

43

NUT, FLANGE

9572R-05300-00

$1.43

44

NUT, FLANGE

9572R-05300-00

$1.43
