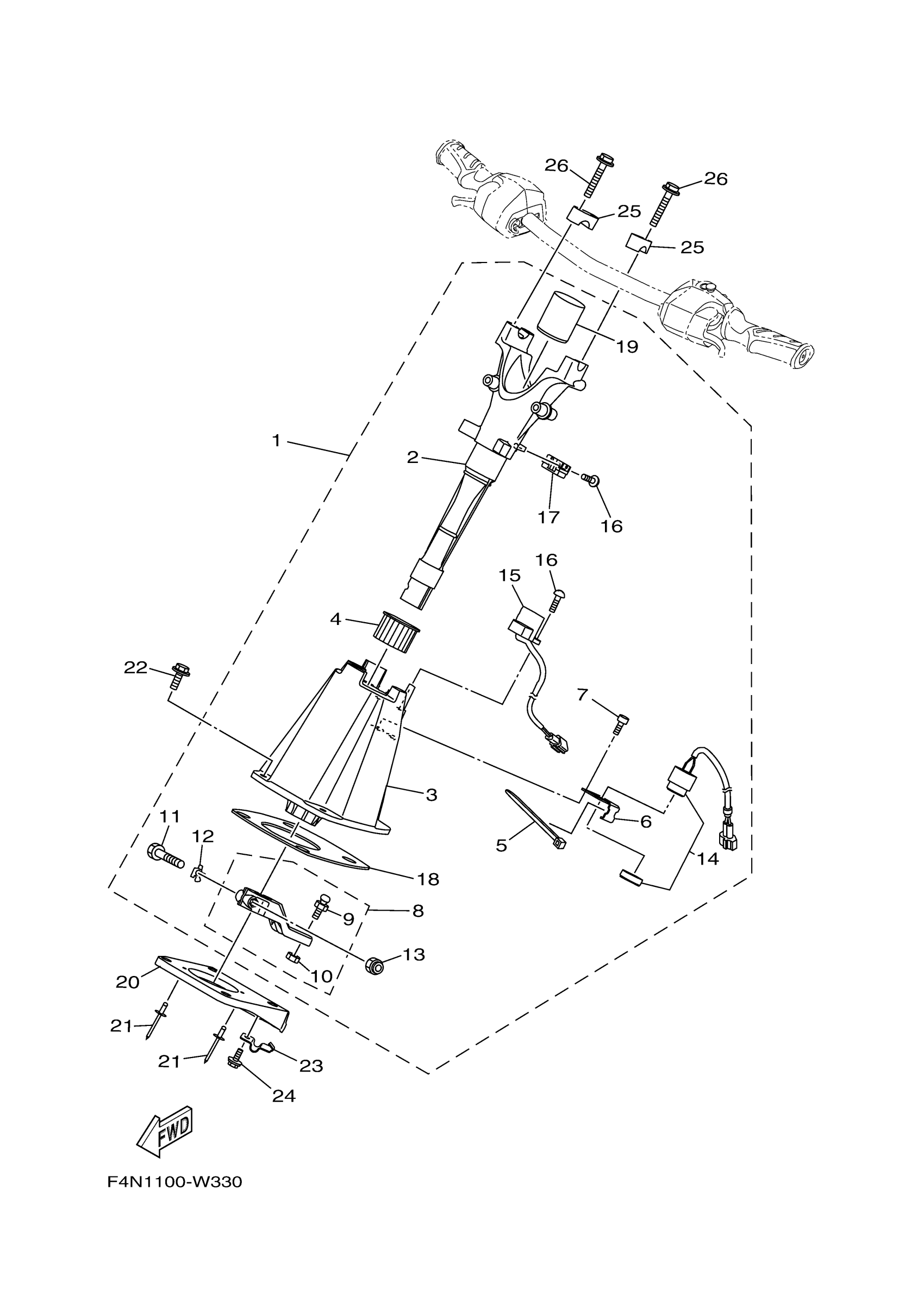

Find the part on the Steering 2 diagram for your 2022 Yamaha VX (VX1050FX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Yamaha VX (VX1050FX) Steering 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING MASTER ASSY

F4N-61400-01-00

1
Out of stock

2

. SHAFT

F3Y-6152D-00-00

1
Out of stock

3

HOUSING ASSY

F2X-6152M-02-00

1
Out of stock

4

. BUSH

F1K-6134M-00-00

1
Out of stock

5

BAND

1UA-82591-00-00

1
Out of stock

6

. SPACER, BRKT

F2P-6146H-00-00

1
Out of stock

7

SCREW

F1B-613C1-10-00

1
Out of stock

8

ARM ASSY.

F1K-6153R-01-00

1
Out of stock

9

STUD, JOINT BALL

EU0-61461-02-00

1
Out of stock

10

NUT, SELF-LOCKING

95720-06300-00

1
Out of stock

11

.. BOLT

F1K-61355-00-00

1
Out of stock

12

. PLATE, RETAINING

F1K-6142B-00-00

1
Out of stock

13

. NUT, SELF-LOCKING

95720-08300-00

1
Out of stock

14

BUZZER

F1S-68341-00-00

1
Out of stock

15

SENSOR, MAGNET

F2X-6838B-02-00

1
Out of stock

16

. SCREW

F2X-613C1-00-00

1
Out of stock

17

MAGNET

F2X-6838C-01-00

1
Out of stock

18

. SEAL, RUBBER

F1K-6143C-00-00

1
Out of stock

19

.. PIPE, SEAL

F2X-61435-00-00

1
Out of stock

20

BRACKET,STOPPER CABLE

F3Y-U1467-00-00

1
Out of stock

21

RIVET, BLIND

90267-489U2-00

1
Out of stock

22

BOLT,WITH WASHER

90119-08870-00

1
Out of stock

23

STOPPER, CABLE

F1K-U1468-03-00

1
Out of stock

24

BOLT, WITH WASHER

90119-06830-00

—
Out of stock

25

HOLDER, HANDLE UPPER

EU0-23814-32-00

1
Out of stock

26

BOLT, WITH WASHER

90119-08844-00

1
Out of stock
