2022 Yamaha VX (VX1050FX) Intake 2 Diagram

← All diagrams

Find the part on the Intake 2 diagram for your 2022 Yamaha VX (VX1050FX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

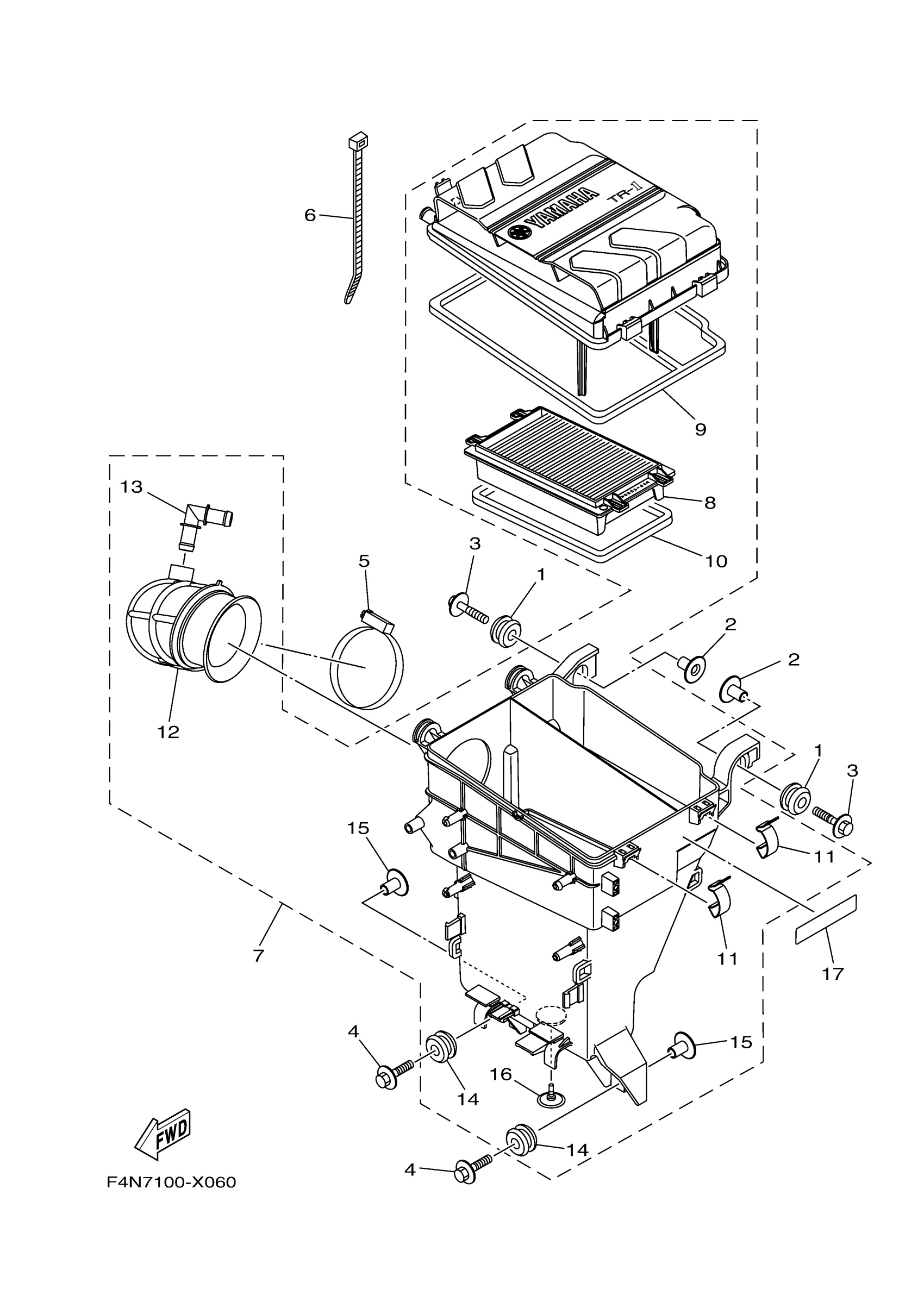

2022 Yamaha VX (VX1050FX) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GROMMET

90480-22M15-00

1
Out of stock

2

COLLAR

90387-08M37-00

1
Out of stock

3

BOLT, WITH WASHER

90119-08169-00

1
Out of stock

4

BOLT, WITH WASHER

90119-08187-00

1
Out of stock

5

HOSE CLAMP ASSY

90450-90002-00

1
Out of stock

6

CLAMP

90465-13M18-00

1
Out of stock

7

AIR CLEANER ASSY.

6EY-14410-10-00

1
Out of stock

8

ELEMENT, AIR CLEANER

6EY-14451-00-00

1
Out of stock

9

. SEAL

6EY-14462-00-00

1
Out of stock

10

. SEAL

6EY-14452-00-00

1
Out of stock

11

. HOOK

6EY-14436-00-00

1
Out of stock

12

. PIPE

6EY-14419-00-00

1
Out of stock

13

. PIPE, JOINT

6EY-14485-00-00

1
Out of stock

14

GROMMET

90480-22M15-00

1
Out of stock

15

COLLAR

90387-08M37-00

1
Out of stock

16

. VALVE

6EY-14470-01-00

1
Out of stock

17

LABEL, CAUTION 7

60E-83627-00-00

1
Out of stock
