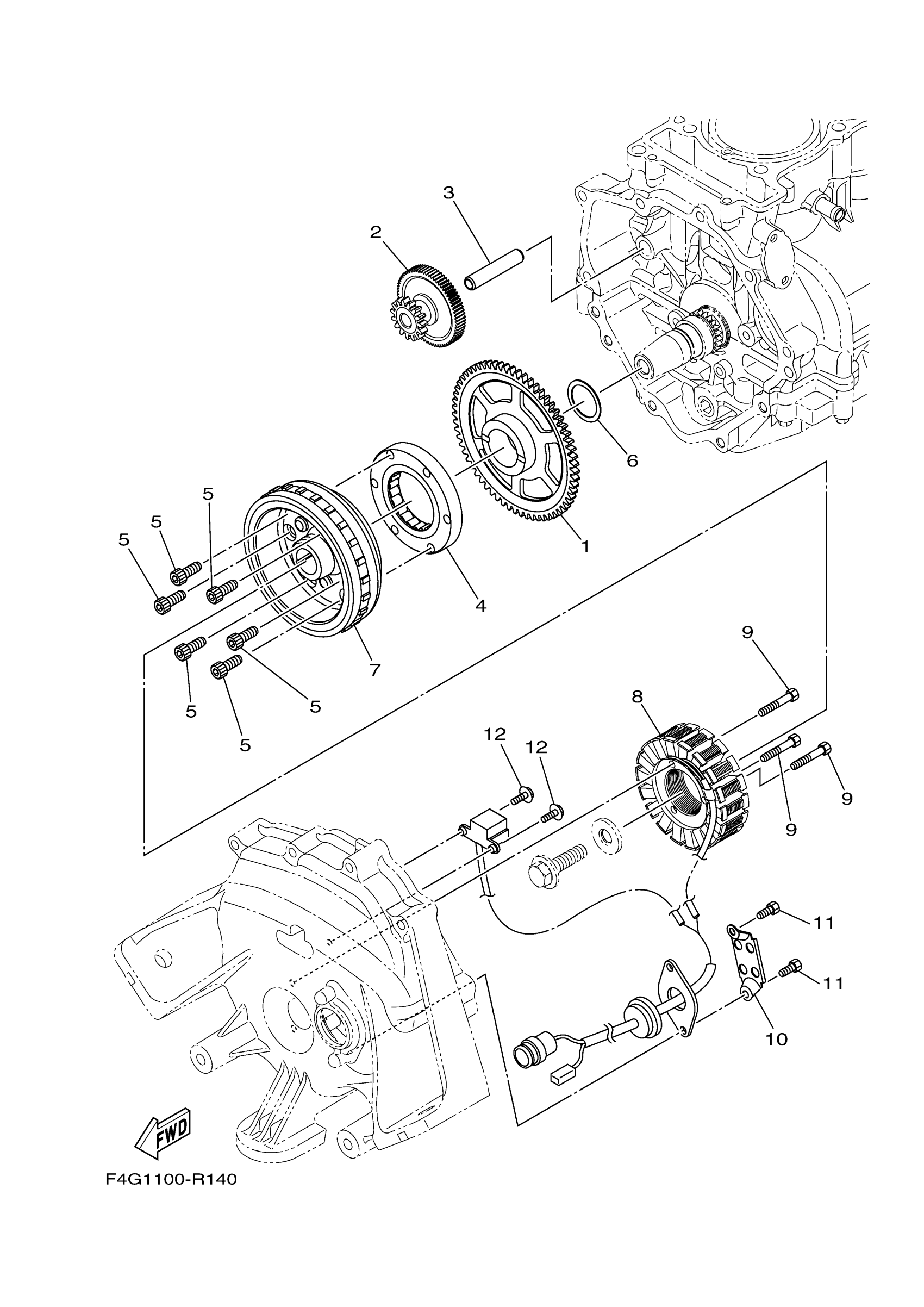

Yamaha VX1050FX (VX) F4NC 2022 GENERATOR Diagram

#

Description
Price

1

GEAR 3

8FA-15515-00-00

$142.87

2

GEAR, IDLER 1

2HC-15512-00-00

$94.31

3

SHAFT 1

8ES-15521-00-00

$7.07

4

STARTER ONE-WAY ASSY

6EY-15590-00-00

$120.57

5

BOLT, SOCKET

91317-08020-00

$2.19

6

WASHER, PLATE

90201-30013-00

$3.25

7

ROTOR ASSY

6EY-81450-01-00

$402.93

8

STATOR ASSY

6EY-81410-00-00

$355.87

9

BOLT,SOCKET

91317-06035-00

$3.33

10

CLAMP

60E-81328-00-00

$7.06

11

BOLT,SOCKET

91317-06014-00

$6.57

12

BOLT, WITH WASHER

97513-05514-00

$3.53
