2025 Yamaha VX (VX1050FB) Electrical 2 Diagram

← All diagrams

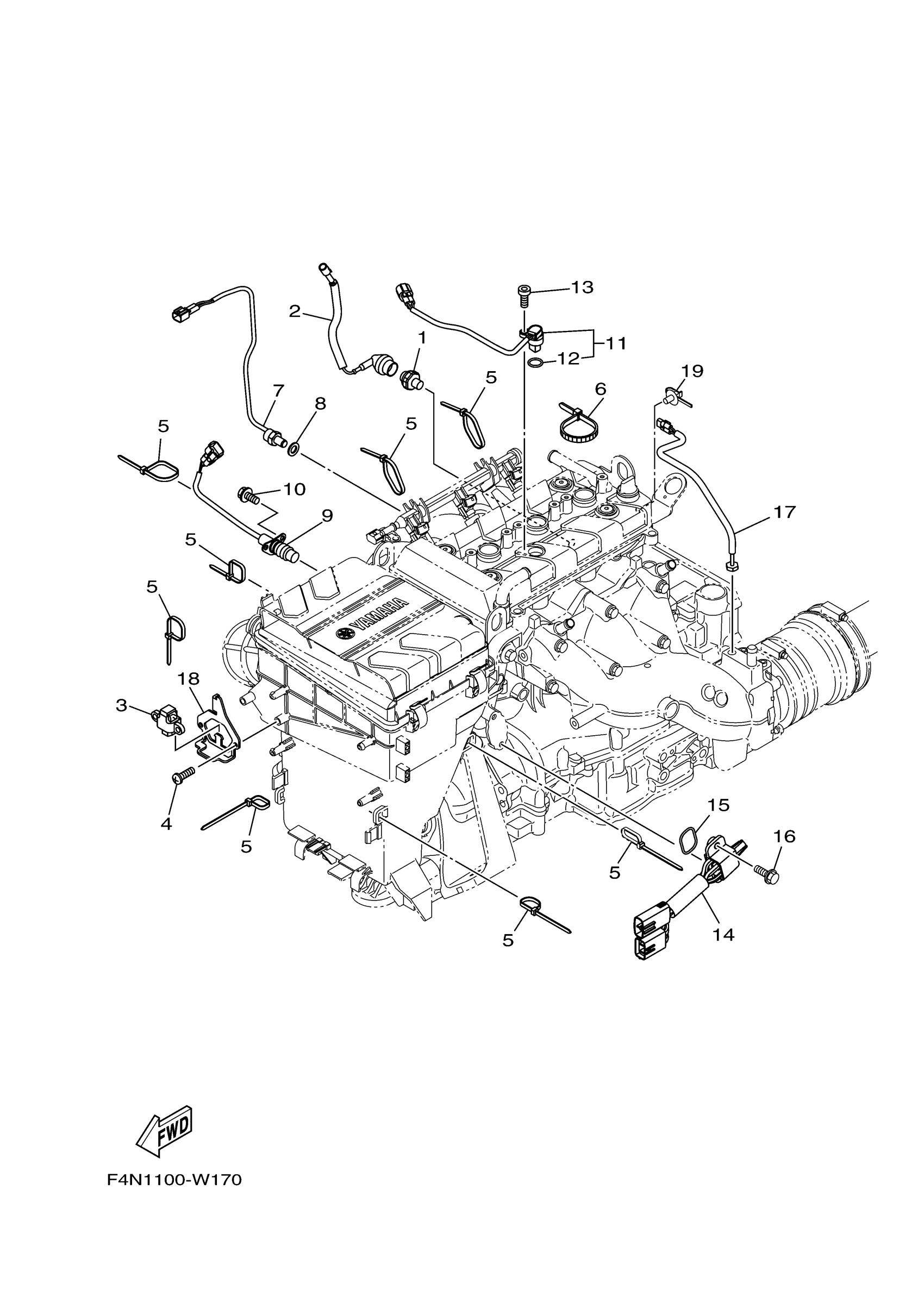

Find the part on the Electrical 2 diagram for your 2025 Yamaha VX (VX1050FB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Yamaha VX (VX1050FB) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

1
Out of stock

2

LEAD WIRE ASSY

60E-81315-01-00

1
Out of stock

3

SENSOR, LEAN ANGLE

6ET-82576-00-00

1
Out of stock

4

SCREW, TAPPING

97780-60520-00

1
Out of stock

5

CLAMP(3XW)

90464-35132-00

1
Out of stock

6

CLAMP(6E8)

90465-13M39-00

1
Out of stock

7

THERMOSENSOR ASSY

61A-85790-01-00

1
Out of stock

8

WASHER, PLATE

92990-10600-00

1
Out of stock

9

THERMO SWITCH ASSY

6CR-82560-00-00

1
Out of stock

10

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

1
Out of stock

11

SENSOR, CAM POSITI

2S3-85896-02-00

1
Out of stock

12

O-RING

4D9-81168-00-00

1
Out of stock

13

BOLT,SOCKET

91380-06016-00

—
Out of stock

14

EARTH PLATE COMP.

6CS-8273J-11-00

1
Out of stock

15

O-RING (341)

93210-32172-00

1
Out of stock

16

BOLT, WITH WASHER

90119-06MA3-00

1
Out of stock

17

THERMOSENSOR ASSY

6DE-85790-00-00

1
Out of stock

18

PLATE

6EY-83618-10-00

1
Out of stock

19

CLAMP

90464-20005-00

1
Out of stock
