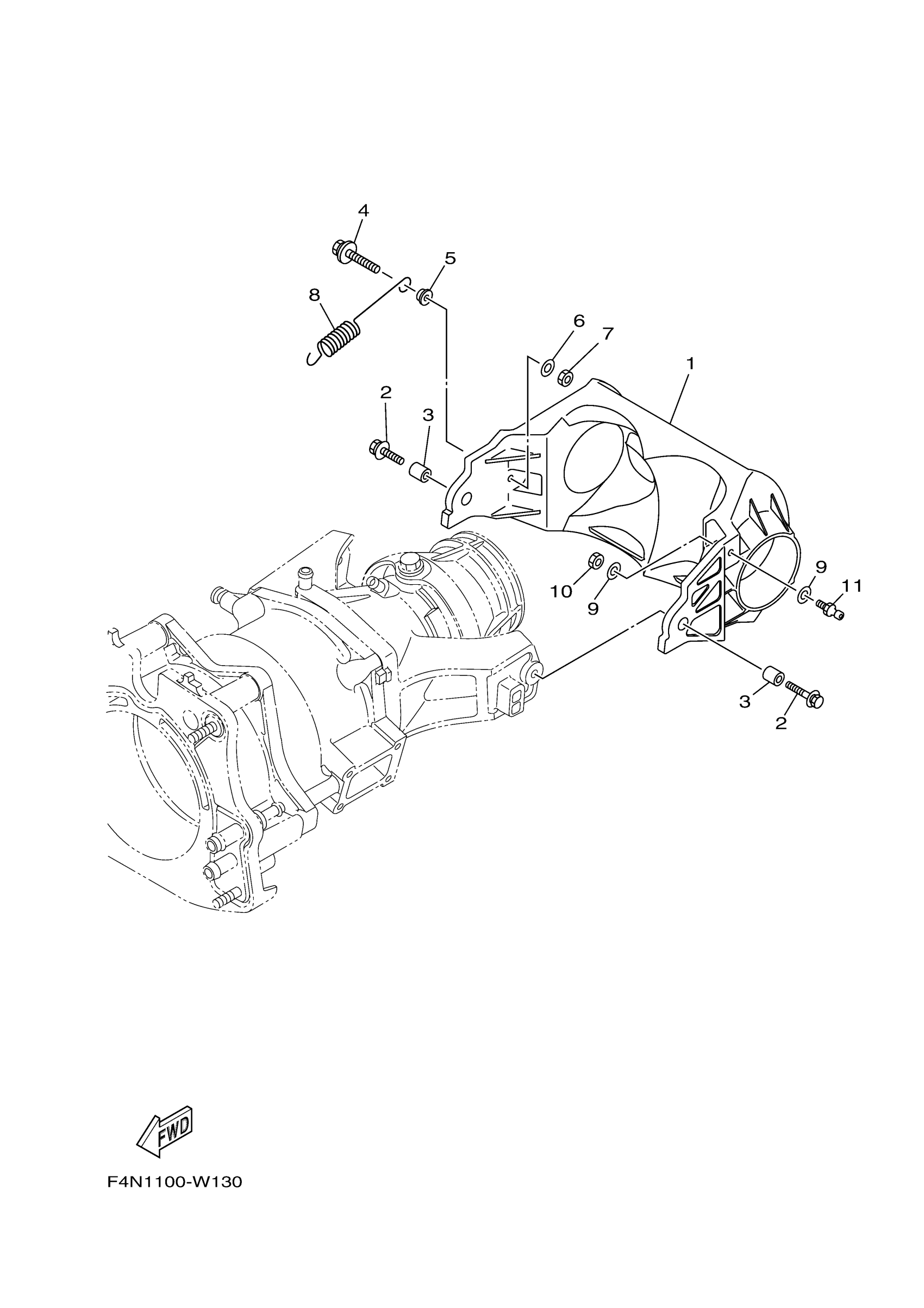

Yamaha VX1050FA (VX) F4NR 2024 JET UNIT 3 Diagram

#

Description

Price

1

GATE, REVERSE

6ET-R1314-10-00

$30.17

2

BOLT, WITH WASHER

90119-08841-00

$1.07

3

COLLAR

90387-08M30-00

$7.59

4

BOLT, WITH WASHER

90119-069UX-00

$2.80

5

COLLAR

90387-06319-00

Unavailable

6

WASHER, PLATE

90201-06020-00

$5.86

7

NUT, HEXAGON

95380-06600-00

$4.20

8

SPRING, RETAINER

6S5-R2358-00-00

$2.40

9

WASHER, PLATE

90201-06020-00

$5.86

10

NUT, HEXAGON

95380-06600-00

$4.20

11

STUD, JOINT BALL

6GA-U1461-10-00

Unavailable
