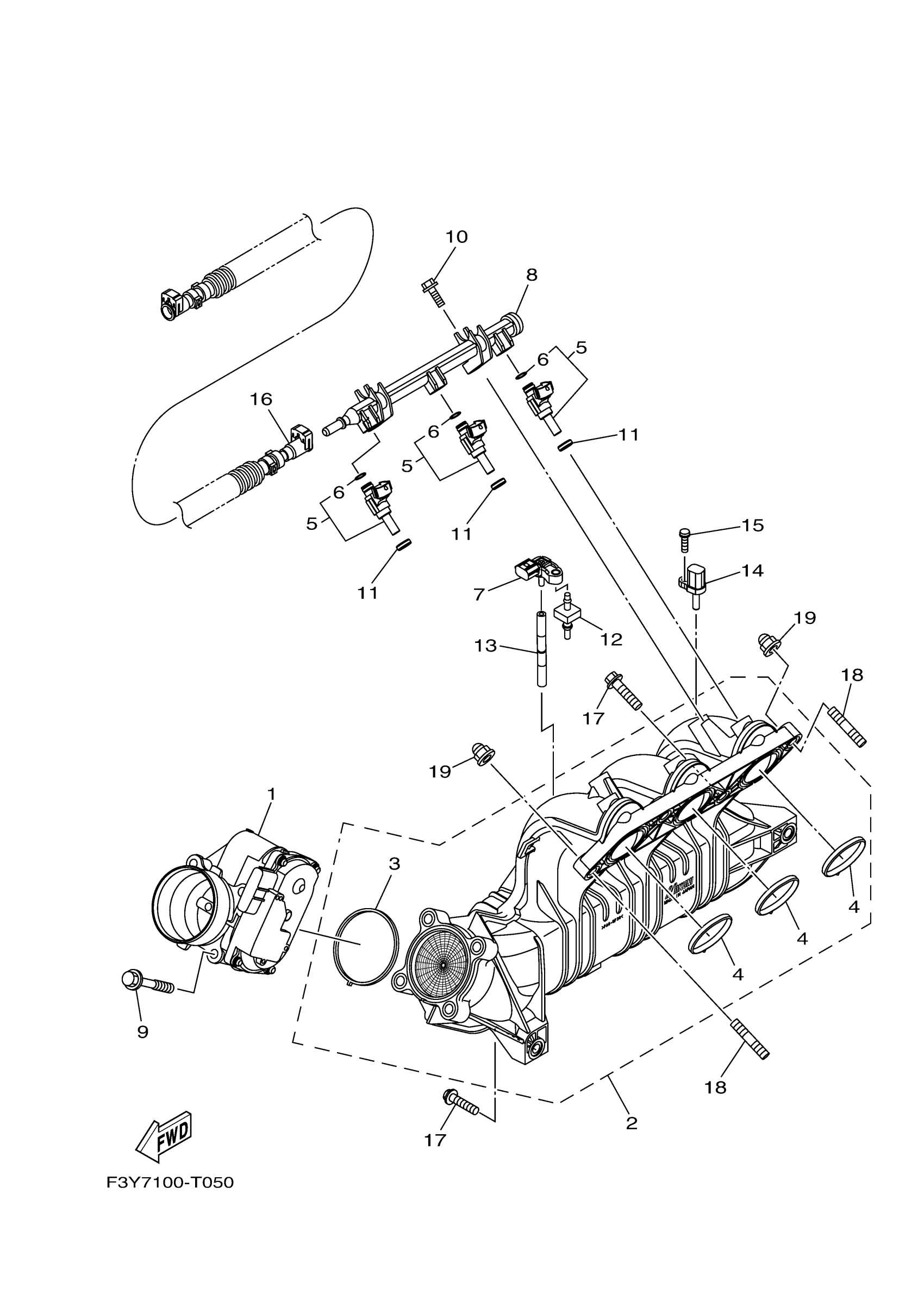

Find the part on the Intake diagram for your 2024 Yamaha VX (VX1050FA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Yamaha VX (VX1050FA) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

6EY-13750-01-00

1
Out of stock

2

MANIFOLD, INTAKE 1

6EY-13641-03-00

—

$1,228.49

In stock

3

. GASKET, INSULATING

6EY-14156-00-00

1

$50.99

In stock

4

. GASKET

6EY-14126-00-00

1

$15.43

In stock

5

INJECTOR

2HC-13761-00-00

1

$124.90

In stock

6

. O-RING

68V-1416A-00-00

1

$11.47

In stock

7

SENSOR, PRESSURE

5S7-82380-00-00

1

$161.56

In stock

8

DELIVERY PIPE

6EY-12880-01-00

1

$258.94

In stock

9

BOLT, FLANGE

90105-08243-00

1

$1.77

In stock

10

BOLT, FLANGE

95814-06020-00

1

$6.68

In stock

11

. GASKET, MANIFOLD

8FP-13556-10-00

1

$5.93

In stock

12

GROMMET

6BH-14445-00-00

1

$20.99

In stock

13

HOSE, VACUUM SENSING 3

6EY-13532-00-00

1

$13.99

In stock

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

1

$49.83

In stock

15

SCREW, PANHEAD TAPPING

97702-50520-00

1

$0.28

In stock

16

FUEL HOSE ASSY

6JS-2450B-00-00

1

$121.22

In stock

17

BOLT, WITH WASHER

97513-08535-00

1

$1.77

In stock

18

BOLT, STUD

95612-08625-00

—

$4.69

In stock

19

NUT, CROWN(4BR)

90176-08080-00

—

$2.71

In stock
