2016 Yamaha V1 (VX1050ER) Ventilation Diagram

← All diagrams

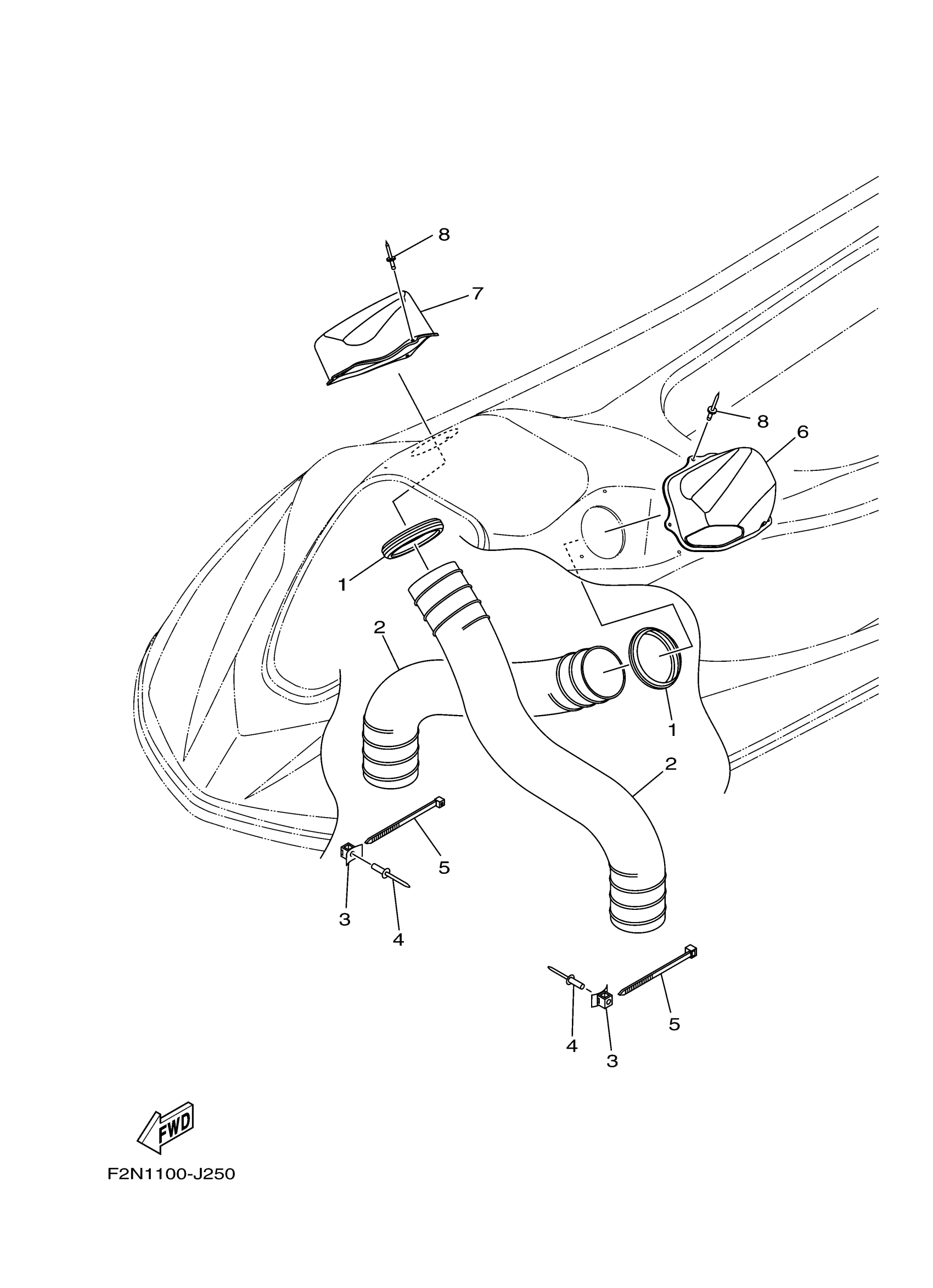

Find the part on the Ventilation diagram for your 2016 Yamaha V1 (VX1050ER), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha V1 (VX1050ER) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BASE, AIR INTAKE

F2N-U2127-00-00

1

$4.85

In stock

2

HOSE, VENTILATOR 2

F2N-U213G-02-00

1

$39.98

In stock

3

BASE, CLAMP

F1W-U828M-00-00

1

$1.38

In stock

4

RIVET, BLIND

90267-489U6-00

1

$1.54

In stock

5

CLAMP

90464-99804-00

1

$4.23

In stock

6

BOX, INDUCTION 1

F2N-U2187-00-00

1
Out of stock

7

BOX, INDUCTION 2

F2N-U2188-00-00

1
Out of stock

8

RIVET, BLIND

90267-48806-00

1

$2.31

In stock
