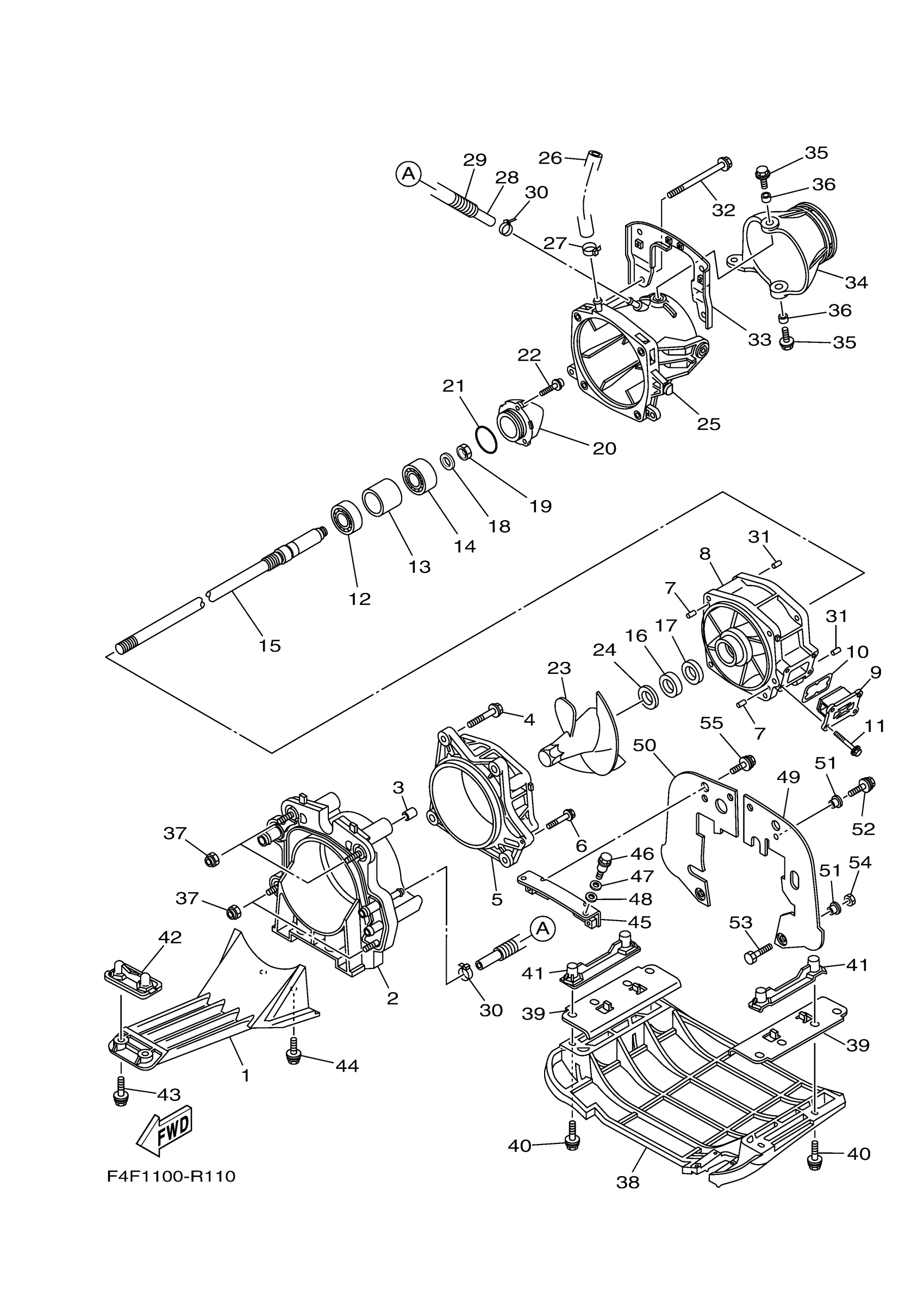

Yamaha VX1050ER (V1) F4F4 2016 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6D3-R1333-01-00

$81.78

2

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$3.41

4

BOLT, WITH WASHER

90119-10811-00

$1.37

5

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

6

BOLT, WITH WASHER

90119-06894-00

$1.37

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

6EX-G6882-00-00

$6.59

10

. O-RING

66V-42414-00-00

$5.18

11

BOLT,WITH WASHER

90119-06890-00

$1.07

12

BEARING (6K8)

93306-205U1-00

$19.73

13

SPACER 1

65V-45538-00-00

$29.88

14

BEARING

93306-304XB-00

$17.22

15

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

16

OIL SEAL

93101-28M66-00

Unavailable

17

OIL SEAL

93101-28002-00

$13.40

18

WASHER

9299R-16600-00

Unavailable

19

NUT

95317-16700-00

$4.55

20

CAP

6B6-51326-10-00

$40.89

21

. O-RING

93210-44003-00

$2.61

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

IMPELLER

6EY-R1321-01-00

$137.84

24

SPACER

66V-R1348-10-00

$12.91

25

NOZZLE

6BU-R1318-01-00

$60.27

26

HOSE (L260)

90445-16006-00

$10.99

27

BAND, HOSE 18

90601-118UF-00

$2.07

28

HOSE (L355)

90445-14807-00

$1.74

29

HOSE (L320)

90446-20MF5-00

$4.57

30

CLAMP

90465-10098-00

$1.68

31

PIN, DOWEL (614)

93606-12019-00

$3.05

32

BOLT, WITH WASHER

90119-10807-00

$5.44

33

BRACKET 1

6D3-R1341-00-00

$48.47

34

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$43.06

35

BOLT, WITH WASHER

90119-08841-00

$1.01

36

COLLAR(6R7)

90387-08M06-00

Unavailable

37

NUT, NYLON

9572R-10300-00

$3.37

38

PLATE 2

F2N-U273B-10-00

$219.68

39

SPACER

F2M-U143G-00-00

$31.80

40

BOLT, WITH WASHER

90119-08829-00

$3.88

41

BRACKET 2

F1G-U8572-02-00

$18.66

42

BRACKET, 3

F1K-U8577-01-00

$22.97

43

BOLT, WITH WASHER

90119-06896-00

$5.03

44

BOLT, WITH WASHER

90119-10809-00

Unavailable

45

BRACKET

F1K-U7557-01-00

$28.02

46

BOLT

90109-08043-00

$4.09

47

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

48

GASKET

90430-12002-00

$1.81

49

PLATE, RUBBER 1

F1K-U757E-01-00

$14.38

50

PLATE, RUBBER 2

F1K-U757F-01-00

$17.22

51

COLLAR

90387-06080-00

$7.27

52

BOLT, WITH WASHER

90119-06878-00

$3.43

53

BOLT

90101-069U0-00

$1.23

54

NUT, NYLON

9572R-06300-00

$2.80

55

BOLT, WITH WASHER

90119-08800-00

$4.09
