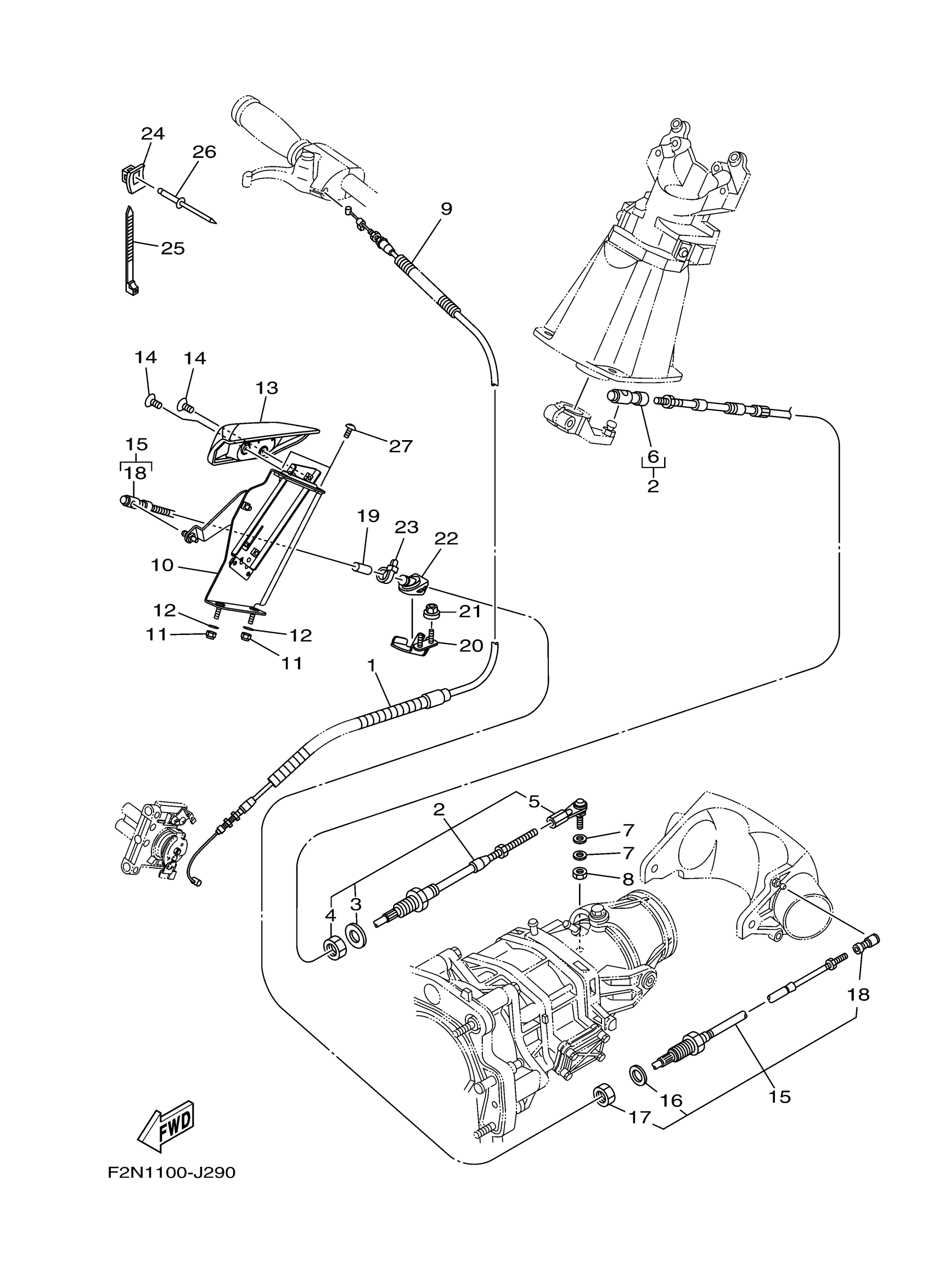

Yamaha VX1050DR (V1 SPORT) F4F1 2016 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE 1

6BU-26311-00-00

$98.49

2

CABLE, STEERING

F2N-61481-02-00

Unavailable

3

. PACKING C

F1B-61438-00-00

$2.47

4

NUT

F1B-6151S-01-00

$13.63

5

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

6

. BALL JOINT ASSY

F2N-61460-00-00

$47.75

7

WASHER, PLATE

90201-06906-00

$2.80

8

NUT

9538R-06700-00

$1.07

9

TUBE

90447-06803-00

$1.94

10

REMOCON. LEVER ASSY.

F2N-U134A-00-00

$143.27

11

NUT, NYLON

9572R-06300-00

$2.93

12

WASHER

9299R-06200-00

$0.43

13

GRIP

F2N-U2714-01-00

$56.70

14

SCREW, COUNTERSUNK

90151-06815-00

$1.29

15

CABLE,REVERSE

F2N-U149C-01-00

Unavailable

16

. PACKING C

F2S-U1438-00-00

$1.42

17

. NUT

F2S-U151S-00-00

$1.64

18

. STUD, JOINT BALL

F0V-U1461-00-00

$43.27

19

PACKING, CABLE

F1W-U146G-00-00

$1.51

20

BRACKET,STOPPER CABLE

F2N-U1467-00-00

$14.91

21

NUT, LOCK

F2N-U142L-00-00

$1.00

22

PACKING, CABLE

F2N-U146G-00-00

$3.51

23

CLAMP

90465-10098-00

$2.24

24

BASE, CLAMP

F1W-U828M-00-00

$1.29

25

CLAMP

90464-32801-00

$1.29

26

RIVET, BLIND

90267-489U6-00

Unavailable

27

SCREW

F2N-67823-10-00

$2.16
