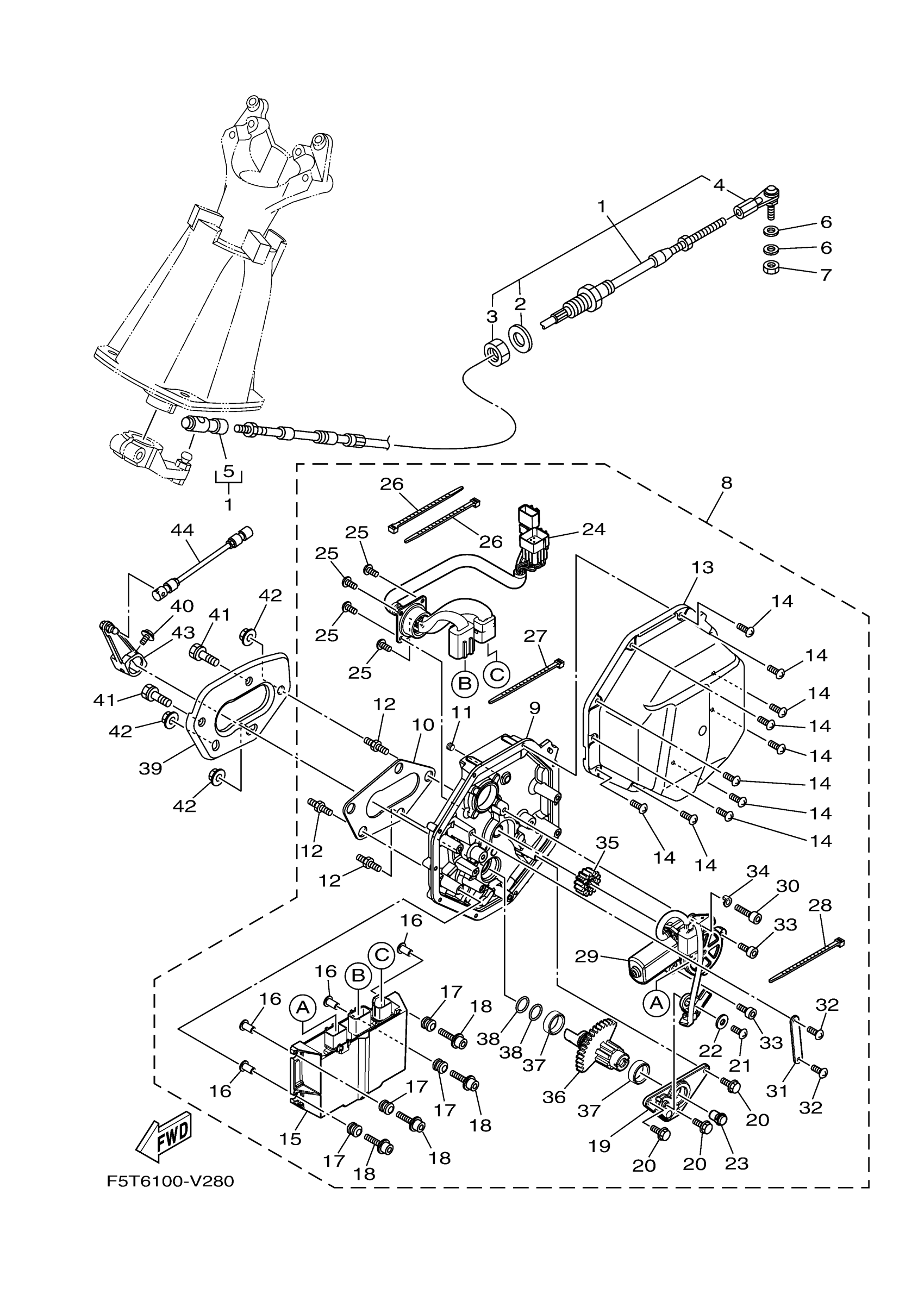

Find the part on the Control Cable diagram for your 2020 Yamaha VX (VX1050CV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Yamaha VX (VX1050CV) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F2N-61481-02-00

1
Out of stock

2

. PACKING C

F1B-61438-00-00

1

$2.57

In stock

3

NUT

F1B-6151S-01-00

1

$14.49

In stock

4

. STUD, JOINT BALL

F1B-61461-02-00

1

$85.53

In stock

5

. BALL JOINT ASSY

F2N-61460-00-00

1

$48.49

In stock

6

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

7

NUT

9538R-06700-00

1
Out of stock

8

Motor Assy

F4G-6140B-04-00

1
Out of stock

9

HOUSING

99999-04522-00

1
Out of stock

10

. SEAL

F3Y-63262-00-00

1

$16.99

In stock

11

. PLUG

F3J-613D0-00-00

1

$11.99

In stock

12

. BOLT, STUD

F3J-67369-00-00

1

$6.46

In stock

13

. COVER

F3Y-6143J-00-00

1

$52.99

In stock

14

. SCREW

F3Y-68198-00-00

1

$3.69

In stock

15

CONTROL UNIT

F4G-68197-02-00

1

$645.99

In stock

16

. COLLAR

90387-06119-00

1

$4.13

In stock

17

DAMPER, IGNITION C

6A0-82317-01-00

1

$6.31

In stock

18

. BOLT

F3J-613B4-20-00

1

$4.62

In stock

19

. PLATE

F3Y-61256-00-00

1

$30.99

In stock

20

. BOLT, HEXAGON

F3Y-613B3-00-00

1

$4.62

In stock

21

. SCREW

F3J-68198-20-00

1

$3.69

In stock

22

. WASHER, PLAIN

F3J-613C3-10-00

1

$3.95

In stock

23

. MAGNET, SENSOR

F3J-60428-00-00

1

$25.49

In stock

24

WIRE HARNESS ASSY.

F4G-68270-01-00

1

$340.99

In stock

25

. SCREW

F3J-68198-00-00

1

$3.16

In stock

26

. CLAMP, WIRE

F3J-68273-00-00

1

$3.23

In stock

27

. CLAMP, WIRE

F3J-68273-00-00

1

$3.23

In stock

28

. CLAMP, WIRE

F3J-68273-00-00

1

$3.23

In stock

29

. MOTOR

F3Y-68352-00-00

1

$204.72

In stock

30

. BOLT

F3J-613B4-00-00

1

$4.62

In stock

31

. PLATE

F3Y-61348-00-00

1

$4.62

In stock

32

. SCREW

F3J-68198-20-00

1

$3.69

In stock

33

. BOLT

F3J-613B4-10-00

1

$2.19

In stock

34

. SPACER

F3J-61492-00-00

1

$7.38

In stock

35

. ,GEAR 1

F3Y-60211-00-00

1

$101.99

In stock

36

SHAFT, 1

F3Y-60221-10-00

1

$21.37

In stock

37

. BUSH

F3Y-61344-00-00

1

$3.95

In stock

38

O-RING

F4P-613A5-00-00

1

$3.55

In stock

39

PLATE

F3Y-U8285-00-00

1

$15.37

In stock

40

BOLT, WITH WASHER

90119-06894-00

1

$1.54

In stock

41

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

42

NUT, LOCK

F3Y-U142L-00-00

1

$2.85

In stock

43

SHIFT ARM ASSY

F3Y-6150F-00-00

1

$52.26

In stock

44

ROD ASSY 2

F3J-6150D-00-00

1

$41.17

In stock
