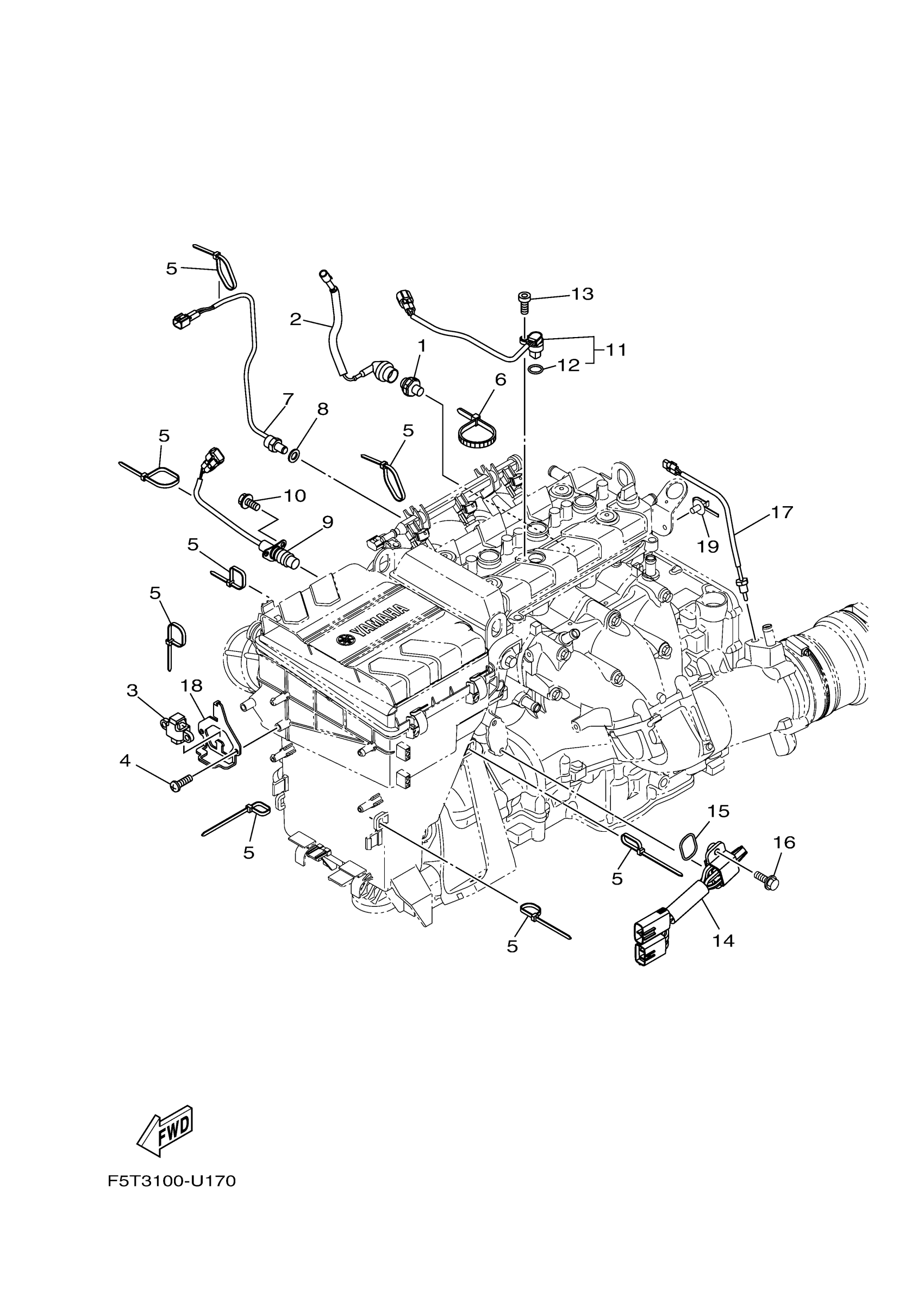

Yamaha VX1050CU (VX) F5T3 2019 ELECTRICAL 2 Diagram

#

Description
Price

1

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

2

LEAD WIRE ASSY

60E-81315-01-00

$41.99

3

SENSOR, LEAN ANGLE

6ET-82576-00-00

$50.01

4

SCREW, TAPPING

97780-60520-00

$4.09

5

CLAMP(3XW)

90464-35132-00

$6.77

6

CLAMP(6E8)

90465-13M39-00

$4.47

7

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

8

WASHER, PLATE

92990-10600-00

$2.57

9

THERMO SWITCH ASSY

6CR-82560-00-00

$72.41

10

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

11

SENSOR, CAM POSITI

2S3-85896-02-00

$83.10

12

O-RING

4D9-81168-00-00

$4.04

13

BOLT,SOCKET

91380-06016-00

Unavailable

14

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

15

O-RING (341)

93210-32172-00

$5.39

16

BOLT, WITH WASHER

90119-06MA3-00

$2.80

17

THERMOSENSOR ASSY

6DE-85790-00-00

$91.95

18

PLATE

6EY-83618-10-00

$16.99

19

CLAMP

90464-20005-00

$2.11
