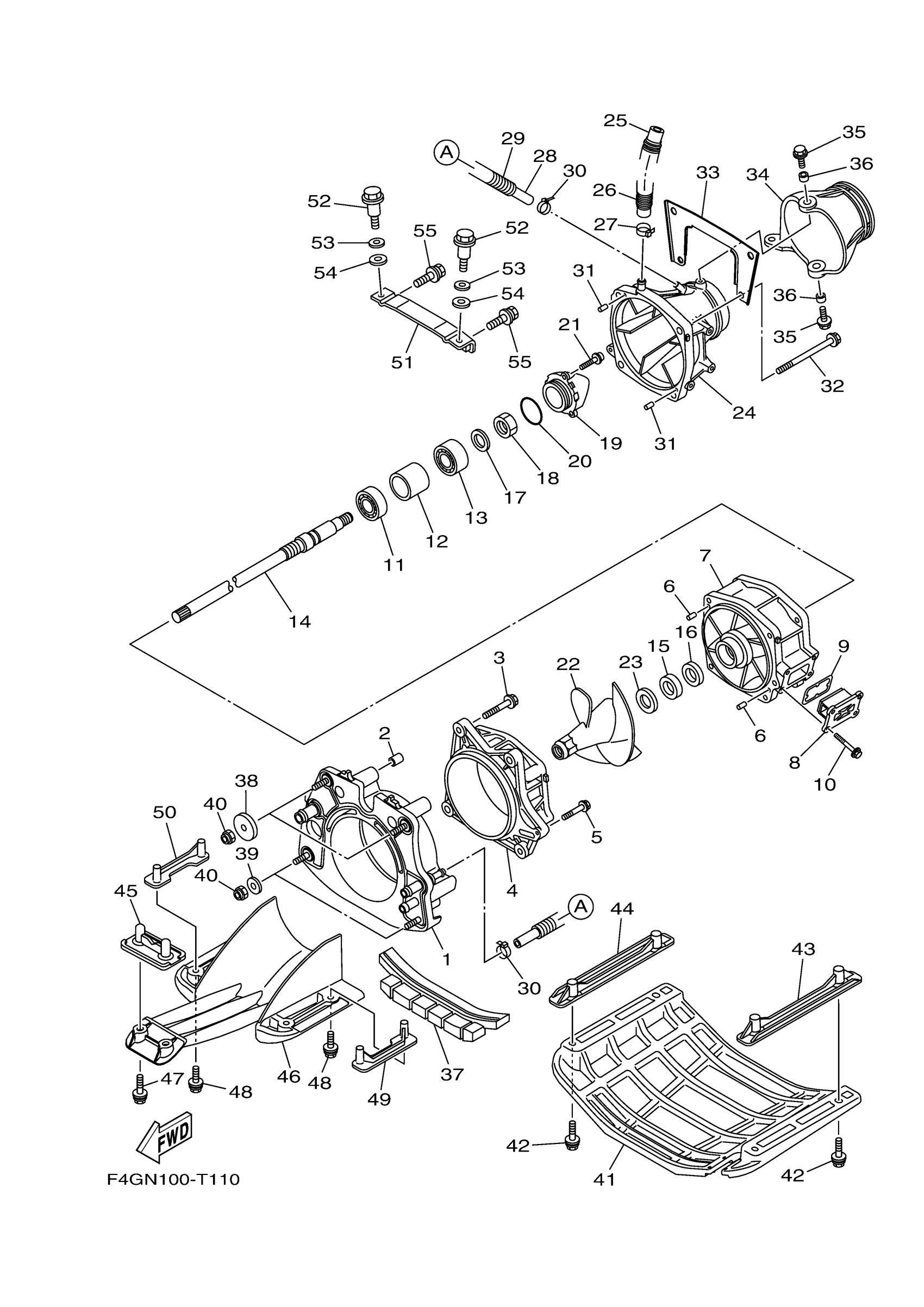

Yamaha VX1050CT (VX) F4GT 2018 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-20-00

$124.23

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6EY-R1315-00-00

$108.40

8

FILTER

6EX-G6882-10-00

$7.18

9

. O-RING

66V-42414-00-00

$5.18

10

BOLT,WITH WASHER

90119-06890-00

$1.07

11

BEARING (6K8)

93306-205U1-00

$19.73

12

SPACER 1

65V-G5538-00-00

$5.22

13

BEARING

93306-304XB-00

$17.22

14

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

15

OIL SEAL

93101-28M66-00

Unavailable

16

OIL SEAL

93101-28002-00

$13.40

17

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

18

NUT

95317-16700-00

$4.55

19

CAP

6EY-R1326-00-00

$16.45

20

. O-RING

93210-44003-00

$2.61

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

22

IMPELLER

6EY-R1321-01-00

$137.84

23

SPACER

6EY-R1348-00-00

$6.38

24

NOZZLE

6EX-R1318-01-00

$78.77

25

HOSE 1

6CN-U72M2-00-00

$5.44

26

HOSE (L175)

90446-24M46-00

$1.36

27

BAND, HOSE 18

90601-118UF-00

$2.07

28

HOSE (L355)

90445-14807-00

$1.74

29

HOSE (L320)

90446-20MF5-00

$4.57

30

CLAMP

90465-10098-00

$1.68

31

PIN, DOWEL (614)

93606-12019-00

$3.05

32

BOLT, WITH WASHER

90119-10807-00

$5.44

33

BRACKET

6EY-R1959-00-00

$14.35

34

NOZZLE, DEFLECTOR

6EX-R1313-00-00

$20.81

35

BOLT, WITH WASHER

90119-08841-00

$1.01

36

COLLAR(6R7)

90387-08M06-00

Unavailable

37

SPACER

F2X-U72C0-00-00

$15.07

38

WASHER

F1S-U725E-01-00

$7.89

39

WASHER, PLATE

90201-10801-00

$3.52

40

NUT, NYLON

9572R-10300-00

$3.37

41

PLATE 2

F2X-U273B-00-00

$171.20

42

BOLT, WITH WASHER

90119-08829-00

$3.88

43

BRACKET 2

F2X-U8572-00-00

$12.91

44

BRACKET 2

F2X-U8572-00-00

$12.91

45

BRACKET, 3

F2S-U8577-00-00

$15.07

46

SCREEN, INTAKE

6EX-R1333-00-00

$73.35

47

BOLT, WITH WASHER

90119-08829-00

$3.88

48

BOLT, WITH WASHER

90119-08829-00

$3.88

49

BRACKET 1

F2X-U8571-00-00

$12.91

50

BRACKET 1

F2X-U8571-00-00

$12.91

51

BRACKET

F2C-U7557-01-00

$30.29

52

BOLT

90109-08043-00

$4.09

53

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

54

GASKET

90430-12002-00

$1.81

55

BOLT, WITH WASHER

90119-08800-00

$4.09
