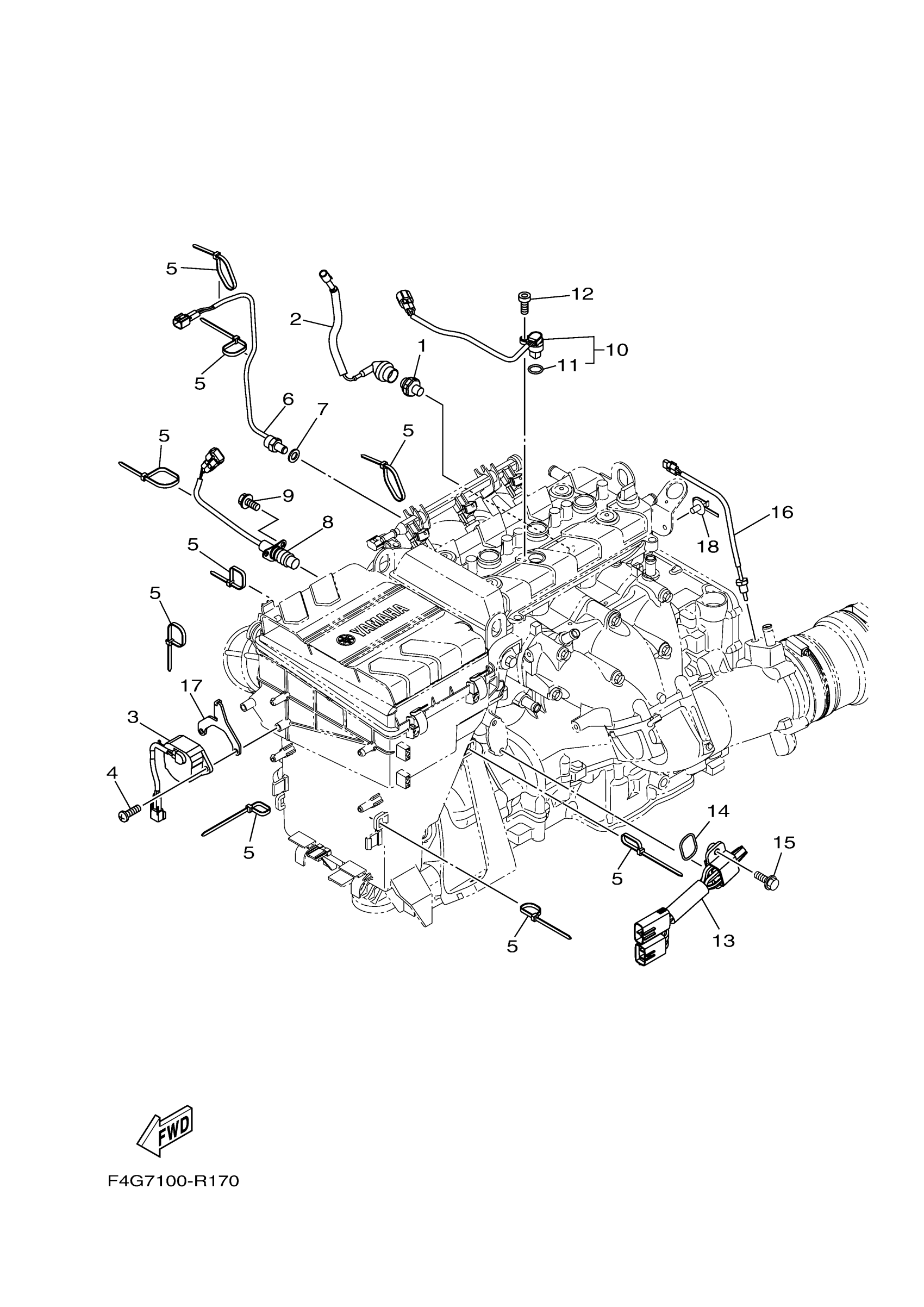

Yamaha VX1050CT (VX) F4GT 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

2

LEAD WIRE ASSY

60E-81315-01-00

$41.99

3

SWITCH ASSY

60E-8259E-00-00

$142.53

4

SCREW, TAPPING

97780-60520-00

$4.09

5

CLAMP

90465-13M18-00

$1.71

6

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

7

WASHER, PLATE

92990-10600-00

$2.57

8

THERMO SWITCH ASSY

6CR-82560-00-00

$72.41

9

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

10

SENSOR, CAM POSITI

2S3-85896-02-00

$83.10

11

O-RING

4D9-81168-00-00

$4.04

12

BOLT,SOCKET

91380-06016-00

Unavailable

13

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

14

O-RING (341)

93210-32172-00

$5.39

15

BOLT, WITH WASHER

90119-06MA3-00

$2.80

16

THERMOSENSOR ASSY

6DE-85790-00-00

$91.95

17

PLATE

6EY-83618-00-00

$7.27

18

CLAMP

90464-20005-00

$2.11
