2018 Yamaha VX (VX1050CT) Crankcase Diagram

← All diagrams

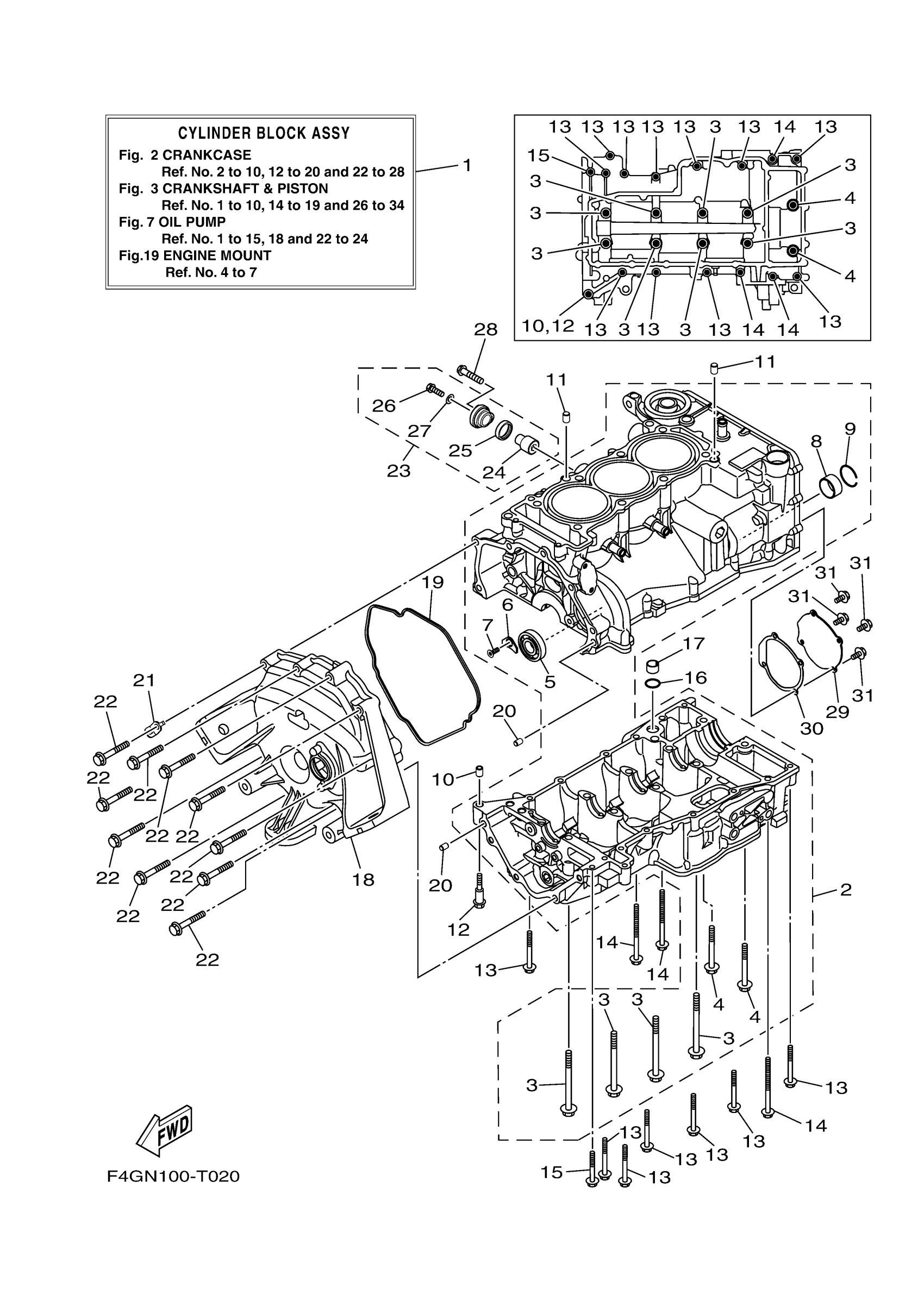

Find the part on the Crankcase diagram for your 2018 Yamaha VX (VX1050CT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha VX (VX1050CT) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER BLOCK ASSY

99999-04611-00

1
Out of stock

2

CRANKCASE ASSY

99999-04612-00

1
Out of stock

3

BOLT, WITH WASHER

90119-09004-00

1
Out of stock

4

BOLT, FLANGE(JN5)

95817-08070-00

1
Out of stock

5

BEARING

93306-30323-00

1
Out of stock

6

PLATE, BEARING COVER

4JT-15381-01-00

1
Out of stock

7

SCREW, COUNTERSUNK

90151-06023-00

1
Out of stock

8

BEARING 1

8ES-11428-01-00

1
Out of stock

9

CIRCLIP

93450-32152-00

1
Out of stock

10

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

11

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

12

BOLT

90109-06308-00

1
Out of stock

13

BOLT, FLANGE

95814-06055-00

1
Out of stock

14

BOLT, FLANGE

95814-06085-00

1
Out of stock

15

BOLT, FLANGE(4EB)

95814-06045-00

1
Out of stock

16

. O-RING

93210-17010-00

1
Out of stock

17

PIPE

8ES-13284-00-00

—
Out of stock

18

COVER, CRANKCASE 2

6EY-15421-00-00

1
Out of stock

19

. GASKET, CRANKCASE COVER 2

6EY-15461-00-00

1
Out of stock

20

PIN, DOWEL

99590-08012-00

—
Out of stock

21

BRACKET

6EY-15199-00-00

1
Out of stock

22

BOLT, WITH WASHER

97513-08555-00

1
Out of stock

23

ANODE COVER ASSY

69J-11301-11-00

—
Out of stock

24

. ANODE

68V-11325-02-00

1
Out of stock

25

GROMMET, ANODE

67F-11328-01-00

1
Out of stock

26

BOLT (689)

90105-06M07-00

—
Out of stock

27

. GASKET

90430-06M03-00

1
Out of stock

28

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

1
Out of stock

29

PLATE

6EY-15589-00-00

1
Out of stock

30

PLATE AND GASKET, 2

99999-04357-00

1
Out of stock

31

BOLT, FLANGE(2UJ)

95024-06012-00

—
Out of stock
