2017 Yamaha VX (VX1050CS) Jet Unit 2 Diagram

← All diagrams

Find the part on the Jet Unit 2 diagram for your 2017 Yamaha VX (VX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

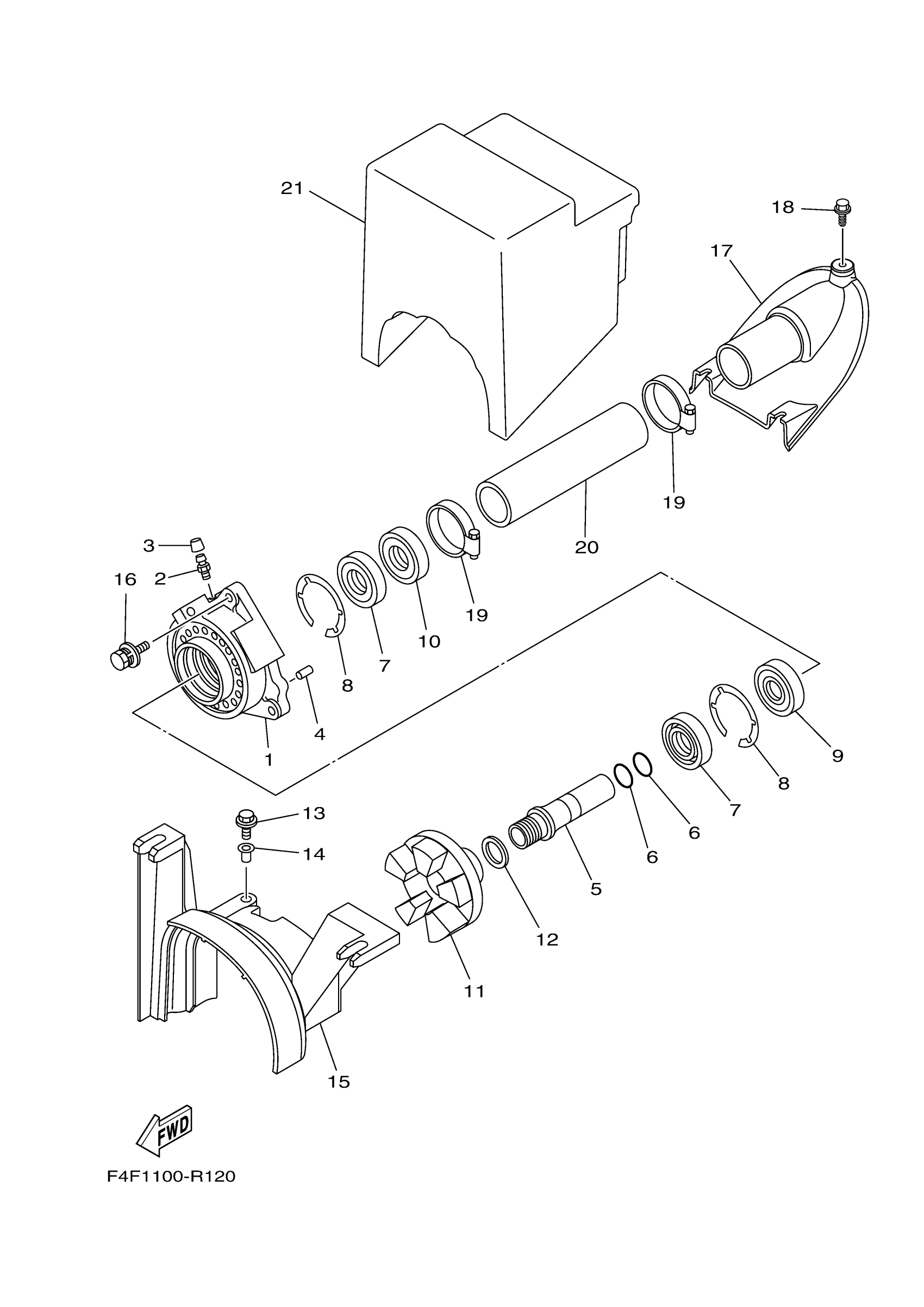

2017 Yamaha VX (VX1050CS) Jet Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, BEARING

61X-G5332-00-00

1
Out of stock

2

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

3

CAP, GREASE NIPPLE

663-45119-01-00

1
Out of stock

4

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

5

SHAFT, COUPLER

60E-R1323-01-00

1
Out of stock

6

O-RING

93210-19001-00

1
Out of stock

7

OIL SEAL(62T)

93101-25M55-00

1
Out of stock

8

CIRCLIP

93430-47M04-00

1
Out of stock

9

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

1
Out of stock

10

. OIL SEAL

93102-25009-00

1
Out of stock

11

FLANGE, COUPLING 1

6EY-45593-00-00

1
Out of stock

12

WASHER, PLATE

90201-27008-00

1
Out of stock

13

BOLT, WITH WASHER

90119-06892-00

1
Out of stock

14

COLLAR

90387-06289-00

1
Out of stock

15

COVER

6EY-R1381-00-00

1
Out of stock

16

BOLT

F4G-U1369-00-00

1
Out of stock

17

JOINT, PIPE

F2N-U883E-00-00

1
Out of stock

18

BOLT

90109-06832-00

1
Out of stock

19

BAND, HOSE 55

90601-155U4-00

1
Out of stock

20

PIPE 1

F2N-U883B-00-00

1
Out of stock

21

PAD

F1K-U892D-00-00

1
Out of stock
