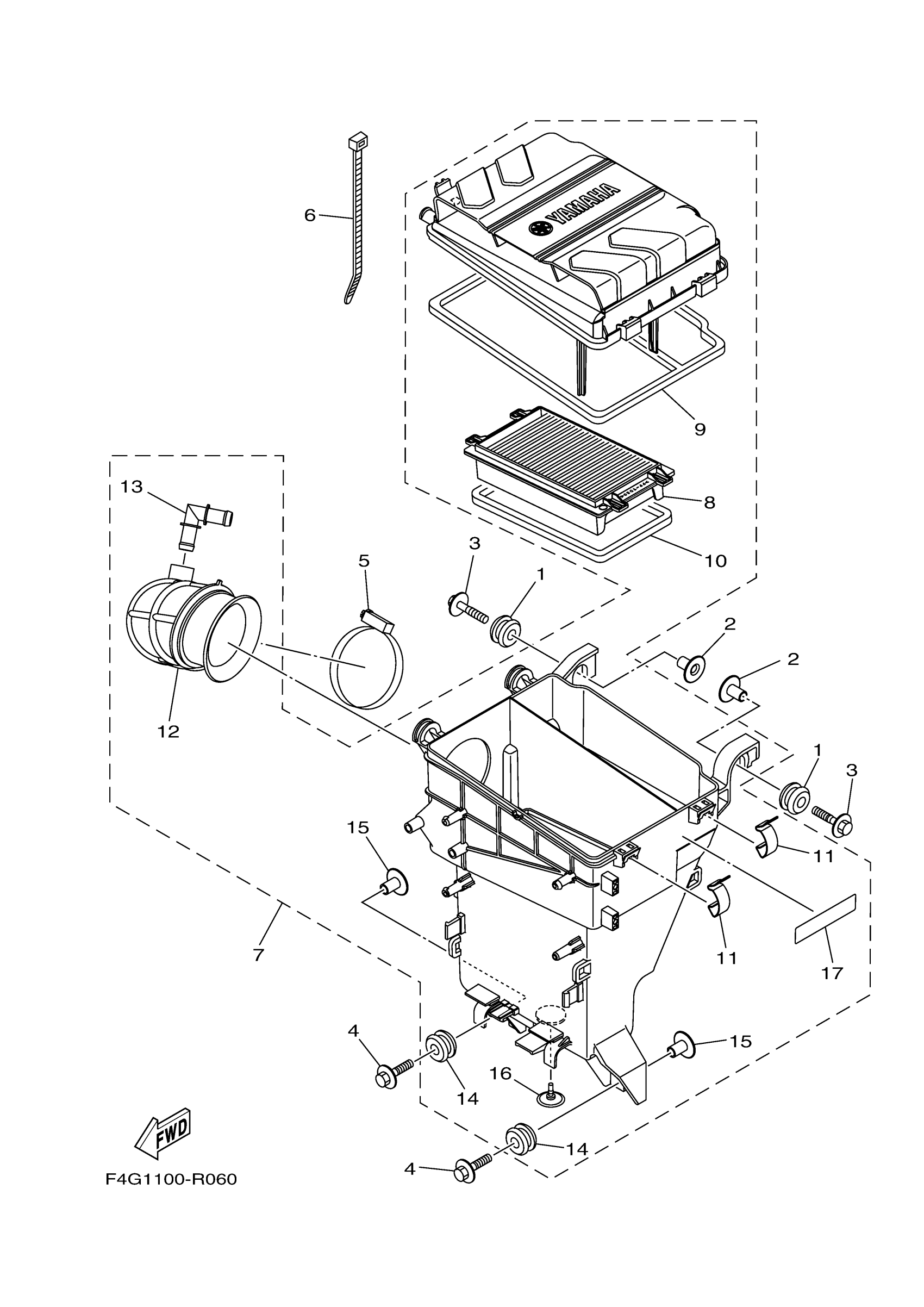

Find the part on the Intake 2 diagram for your 2017 Yamaha VX (VX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha VX (VX1050CS) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GROMMET

90480-22M15-00

1

$11.47

In stock

2

COLLAR

90387-08M37-00

1

$10.09

In stock

3

BOLT, WITH WASHER

90119-08169-00

1

$2.54

In stock

4

BOLT, WITH WASHER

90119-08187-00

1

$2.94

In stock

5

HOSE CLAMP ASSY

90450-90002-00

1

$16.99

In stock

6

CLAMP

90465-13M18-00

1

$1.59

In stock

7

AIR CLEANER ASSY.

6EY-14410-10-00

1

$258.99

In stock

8

ELEMENT, AIR CLEANER

6EY-14451-00-00

1

$43.55

In stock

9

. SEAL

6EY-14462-00-00

1

$10.99

In stock

10

. SEAL

6EY-14452-00-00

1

$6.46

In stock

11

. HOOK

6EY-14436-00-00

1

$6.33

In stock

12

. PIPE

6EY-14419-00-00

1

$83.99

In stock

13

. PIPE, JOINT

6EY-14485-00-00

1

$9.22

In stock

14

GROMMET

90480-22M15-00

1

$11.47

In stock

15

COLLAR

90387-08M37-00

1

$10.09

In stock

16

. VALVE

6EY-14470-00-00

1

$3.69

In stock

17

LABEL, CAUTION 7

60E-83627-00-00

1

$4.62

In stock
