2017 Yamaha VX (VX1050CS) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2017 Yamaha VX (VX1050CS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

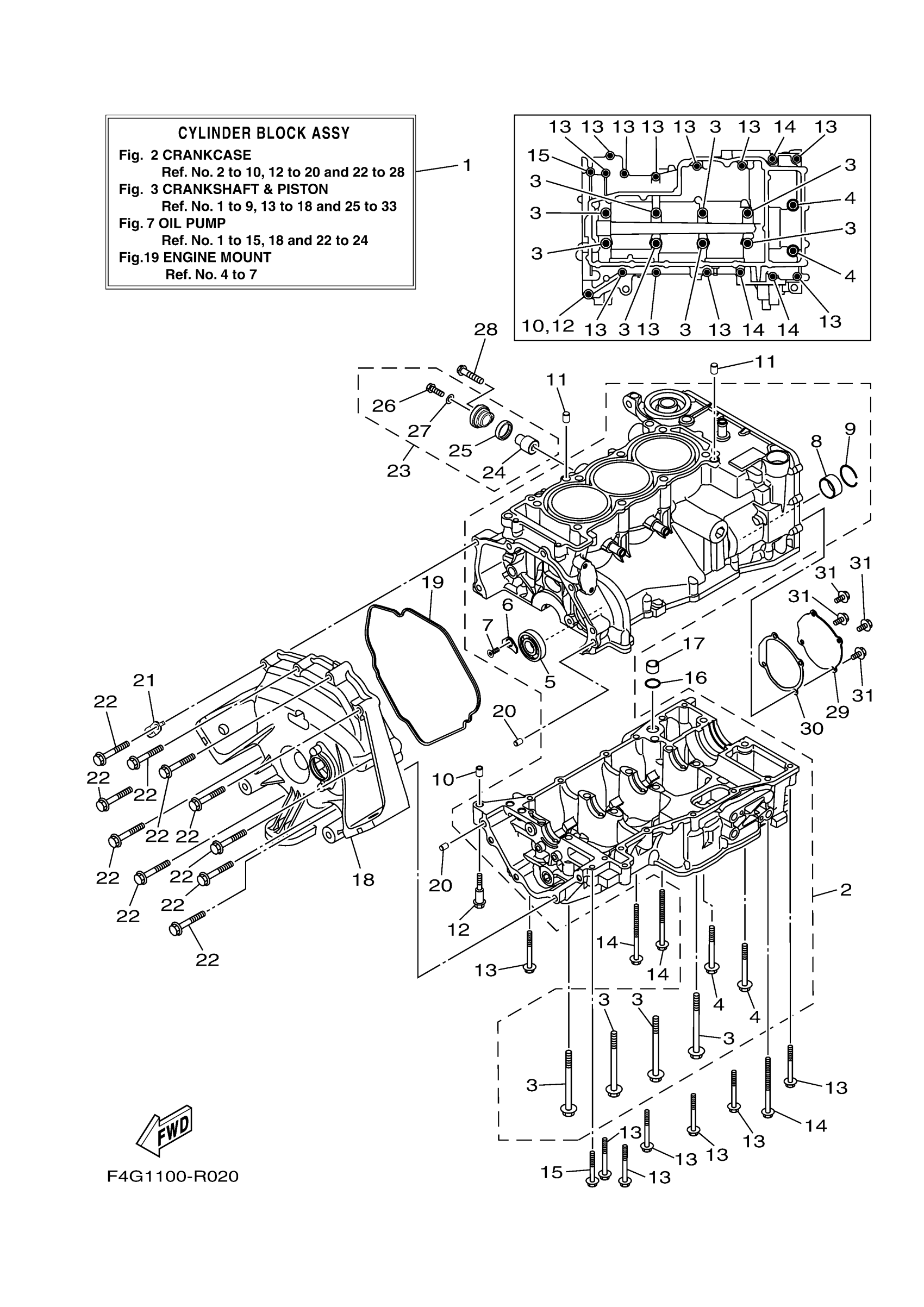

2017 Yamaha VX (VX1050CS) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER BLOCK ASSY

99999-04611-00

1
Out of stock

2

CRANKCASE ASSY

99999-04612-00

1
Out of stock

3

BOLT, WITH WASHER

90119-09004-00

1

$9.17

In stock

4

BOLT, FLANGE(JN5)

95817-08070-00

1

$3.20

In stock

5

BEARING

93306-30323-00

1

$38.51

In stock

6

PLATE, BEARING COVER

4JT-15381-01-00

1
Out of stock

7

SCREW, COUNTERSUNK

90151-06023-00

1

$6.52

In stock

8

BEARING 1

8ES-11428-01-00

1

$41.75

In stock

9

CIRCLIP

93450-32152-00

1

$6.68

In stock

10

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

11

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

12

BOLT

90109-06308-00

1

$3.23

In stock

13

BOLT, FLANGE

95814-06055-00

1
Out of stock

14

BOLT, FLANGE

95814-06085-00

1

$2.77

In stock

15

BOLT, FLANGE(4EB)

95814-06045-00

1

$2.49

In stock

16

. O-RING

93210-17010-00

1

$0.92

In stock

17

PIPE

8ES-13284-00-00

—

$3.49

In stock

18

COVER, CRANKCASE 2

6EY-15421-00-00

1

$167.99

In stock

19

. GASKET, CRANKCASE COVER 2

6EY-15461-00-00

1

$15.83

In stock

20

PIN, DOWEL

99590-08012-00

—

$2.78

In stock

21

BRACKET

6EY-15199-00-00

1

$3.69

In stock

22

BOLT, WITH WASHER

97513-08555-00

1

$1.77

In stock

23

ANODE COVER ASSY

69J-11301-11-00

—

$15.56

In stock

24

. ANODE

68V-11325-02-00

1

$17.38

In stock

25

GROMMET, ANODE

67F-11328-01-00

1

$3.28

In stock

26

BOLT (689)

90105-06M07-00

—

$1.93

In stock

27

. GASKET

90430-06M03-00

1

$2.97

In stock

28

1

$2.00

In stock

29

PLATE

6EY-15589-00-00

1
Out of stock

30

PLATE AND GASKET, 2

99999-04357-00

1
Out of stock

31

BOLT, FLANGE(2UJ)

95024-06012-00

—
Out of stock
