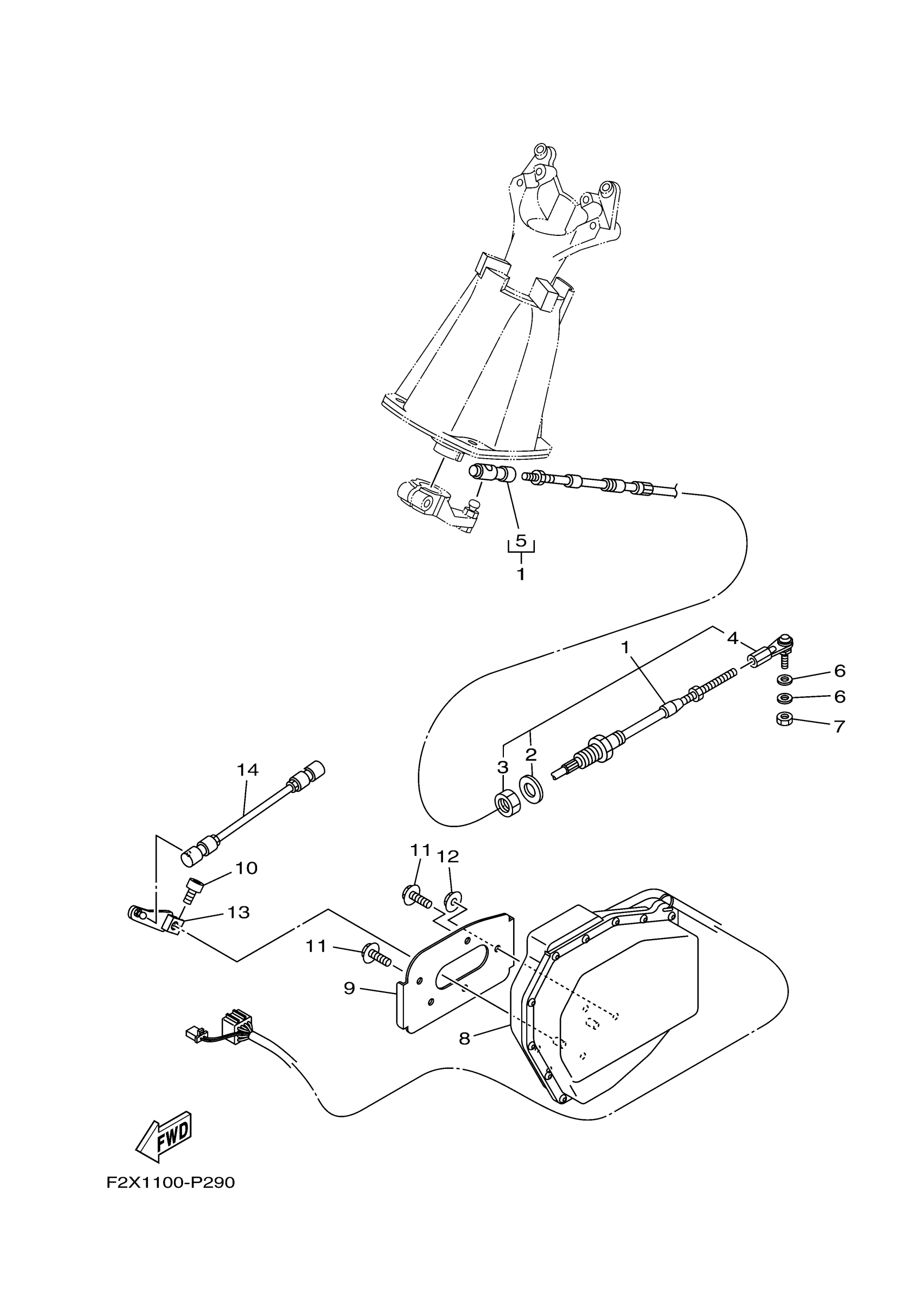

Find the part on the Control Cable diagram for your 2016 Yamaha VX (VX1050CR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha VX (VX1050CR) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F2N-61481-02-00

1
Out of stock

2

. PACKING C

F1B-61438-00-00

1

$2.57

In stock

3

NUT

F1B-6151S-01-00

1

$14.49

In stock

4

. STUD, JOINT BALL

F1B-61461-02-00

1

$85.53

In stock

5

. BALL JOINT ASSY

F2N-61460-00-00

1

$48.49

In stock

6

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

7

NUT

9538R-06700-00

1
Out of stock

8

MOTOR ASSY.

F2X-6140B-05-00

1
Out of stock

9

PLATE

F3Y-U8285-00-00

1

$15.37

In stock

10

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

1

$3.23

In stock

11

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

12

NUT, NYLON (6J8)

95780-08300-00

1

$10.51

In stock

13

SHIFT ARM ASSY

F3J-6150F-00-00

1

$68.49

In stock

14

ROD ASSY 2

F3J-6150D-00-00

1

$41.17

In stock
