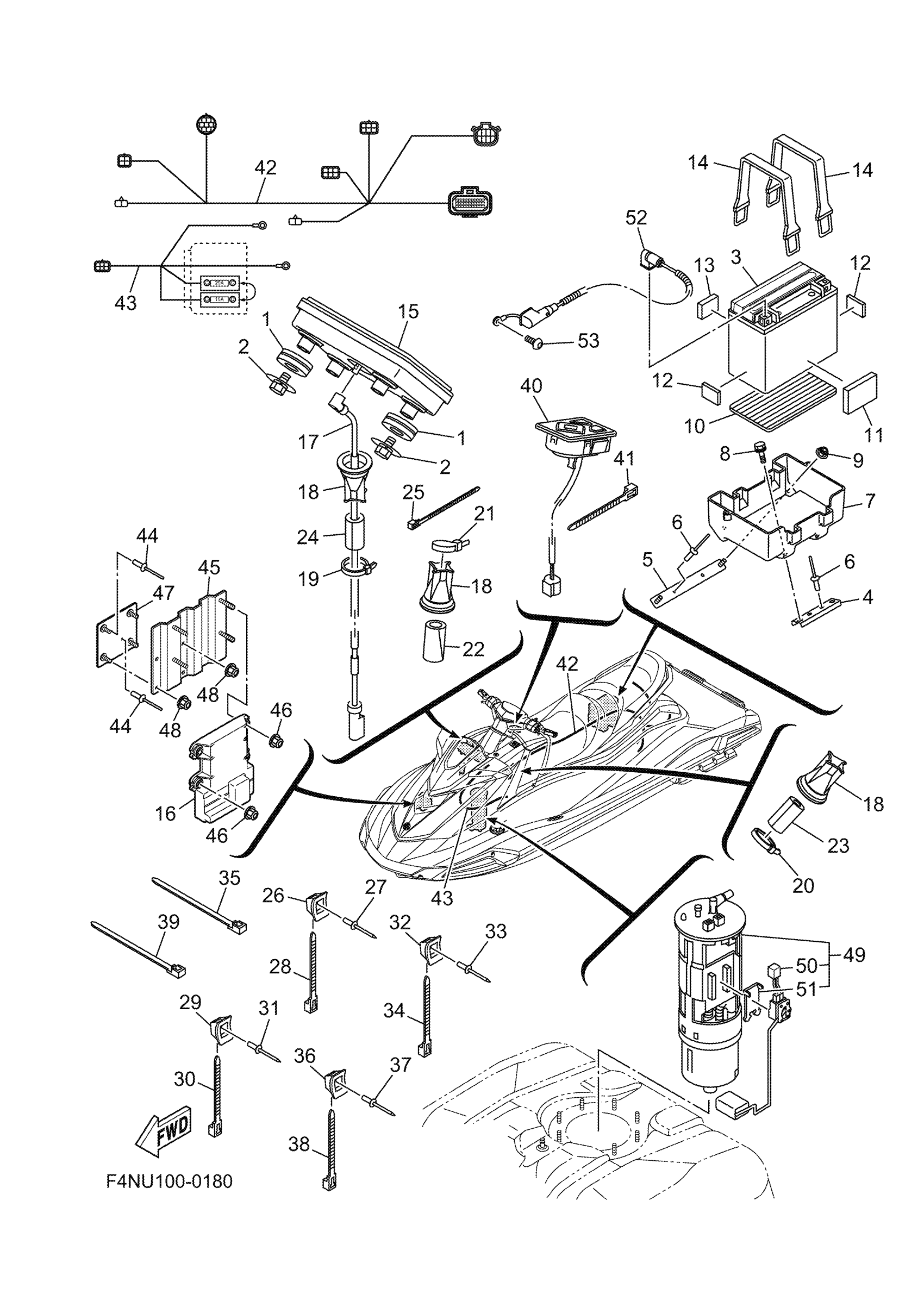

Yamaha VX1050CB (VX CRUISER) F4NU 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

. GROMMET

90480-19800-00

$12.20

2

BOLT, WITH WASHER

90119-05803-00

$4.24

3

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$159.13

4

PLATE, BASE 2

F2S-U8592-00-00

$5.66

5

PLATE, BASE 3

F2S-U8593-00-00

$5.29

6

RIVET (EU0)

90267-48938-00

$4.85

7

CASE, BATTERY

F2S-U8211-00-00

Unavailable

8

BOLT, WITH WASHER

90119-06820-00

$3.65

9

NUT, LOCK

F2N-U142L-00-00

$1.43

10

PAD, BATTERY

F1S-U8221-00-00

$2.88

11

MAT 2

F1W-U759C-01-00

$2.43

12

PAD, BATTERY

EU0-U8221-31-00

$1.80

13

PACKING

F2C-U1743-00-00

$2.00

14

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

15

DISPLAY METER ASSY.

F7M-U820J-00-00

$385.28

16

METER CONTROL UNIT ASSY.

F7M-U820H-00-00

$404.40

17

CABLE,METER

F7M-U823K-00-00

$61.75

18

GROMMET

F3J-U822E-01-00

$6.03

19

CLAMP

90464-32801-00

$1.29

20

CLAMP

90464-32801-00

$1.29

21

CLAMP

90464-32801-00

$1.29

22

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

23

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

24

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

25

CLAMP(JN6)

90464-31827-00

Unavailable

26

BASE, CLAMP

F1W-U828M-00-00

$1.29

27

RIVET, BLIND

90267-48806-00

$2.16

28

CLAMP

90464-32801-00

$1.29

29

BASE, CLAMP

F1W-U828M-00-00

$1.29

30

CLAMP

90464-32801-00

$1.29

31

RIVET, BLIND

90267-48806-00

$2.16

32

BASE, CLAMP

F1W-U828M-00-00

$1.29

33

RIVET, BLIND

90267-48806-00

$2.16

34

CLAMP

90464-32801-00

$1.29

35

CLAMP

F2C-U4256-00-00

$3.16

36

BASE, CLAMP

F1W-U828M-00-00

$1.29

37

RIVET, BLIND

90267-48806-00

$2.16

38

CLAMP

F2C-U4256-00-00

$3.16

39

BAND

90601-200U2-00

$3.29

40

SWITCH ASSY.

F5G-U8090-01-00

Unavailable

41

CLAMP

90464-32801-00

$1.29

42

WIRE HARNESS,1

F7M-60891-10-00

$373.51

43

WIRE, HARNESS

F7M-68275-00-00

$155.87

44

RIVET, BLIND

90267-48806-00

$2.16

45

BRACKET 1

F7M-UFG21-00-00

Unavailable

46

NUT, LOCK

F2N-U142L-00-00

$1.43

47

BRACKET 2

F7M-UFG22-00-00

Unavailable

48

NUT, LOCK

F2N-U142L-00-00

$1.43

49

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

50

FUEL SENDER ASSY

6S5-682E0-10-00

Unavailable

51

DAMPER, STOPPER

60E-82556-10-00

$18.37

52

WIRE, MINUS LEAD

6JS-82116-00-00

$40.81

53

BOLT, WITH WASHER

97513-08514-00

$1.32
