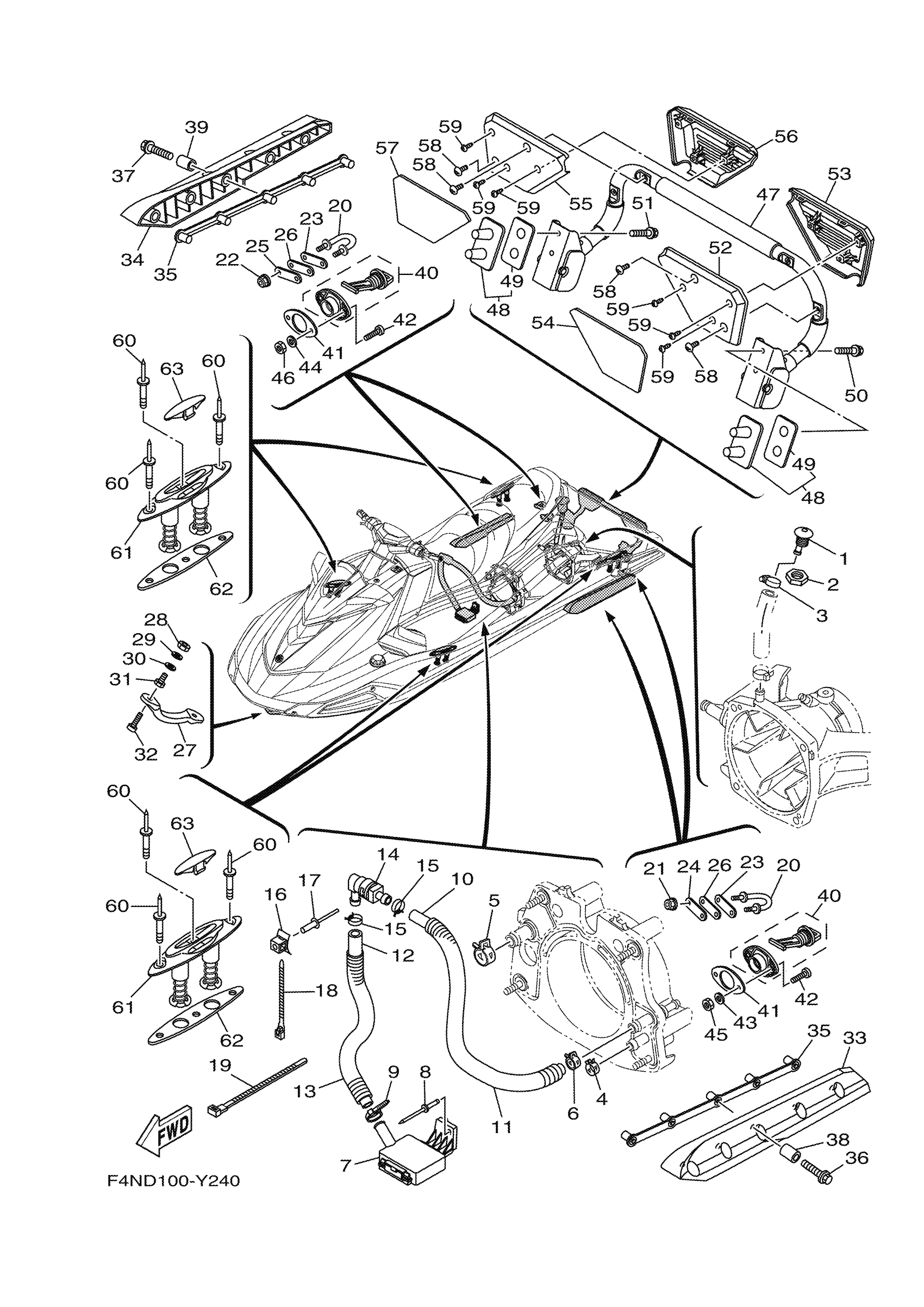

Yamaha VX1050AY (VX LIMITED) F4ND 2023 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

CLIP

90467-200A3-00

$5.92

5

CLIP

90467-240A3-00

$2.69

6

CLIP

90467-190A2-00

$3.18

7

STRAINER, BILGE

F1B-U761D-02-00

$5.15

8

RIVET, BLIND

90267-489U8-00

$0.99

9

CLAMP

90465-10098-00

$1.68

10

HOSE 2

6EY-U771G-00-00

$12.11

11

TUBE,2

6EY-U773E-00-00

$6.14

12

HOSE (L860)

90445-20804-00

$12.86

13

TUBE,2

6EX-U773E-00-00

$6.06

14

JOINT, HOSE

68N-5112T-00-00

$48.96

15

CLIP

90467-190A2-00

$3.18

16

BASE, CLAMP

F1W-U828M-00-00

$1.23

17

RIVET, BLIND

90267-48802-00

$1.98

18

CLAMP

F2C-U4256-00-00

$3.26

19

CLAMP

90464-32801-00

$1.23

20

STERN EYE

F2N-U1628-02-00

$4.96

21

NUT, NYLON (6J8)

95780-08300-00

$10.55

22

NUT, NYLON (6J8)

95780-08300-00

$10.55

23

PLATE A

GP7-U4953-10-00

$3.52

24

PLATE A

GP7-U4953-10-00

$3.52

25

PLATE A

GP7-U4953-10-00

$3.52

26

PACKING

F1B-U1653-03-00

Unavailable

27

BOW EYE 1

F1K-61624-00-00

$42.60

28

NUT.HEX.(COARS)

99780-12600-00

$2.80

29

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

30

WASHER

F0X-61637-00-00

$1.29

31

NUT

F0X-61652-01-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

33

STABILIZER LH

F1S-U883N-01-00

$33.32

34

STABILIZER RH

F1S-U883P-01-00

$33.32

35

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

36

BOLT,WASHER BASED

90105-088F9-00

$2.91

37

BOLT,WASHER BASED

90105-088F9-00

$2.91

38

SPACER

F2N-U8169-10-00

$1.15

39

SPACER

F2N-U8169-10-00

$1.15

40

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

41

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

42

SCREW, PAN HEAD

9788R-05025-00

$2.52

43

WASHER

9299R-05200-00

$3.16

44

WASHER

9299R-05200-00

$3.16

45

NUT, FLANGE

9572R-05300-00

$1.43

46

NUT, FLANGE

9572R-05300-00

$1.43

47

LADDER, STEP ASSY

F4N-U278A-00-00

$234.83

48

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

49

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

50

BOLT, WITH WASHER

90119-08844-00

$1.29

51

BOLT, WITH WASHER

90119-08844-00

$1.29

52

STEP

F4N-U882F-00-00

Unavailable

53

PLATE, STEP 1

F4N-U884R-00-00

$6.36

54

MAT, STEP 7

F4N-U351R-10-00

$3.86

55

STEP

F4N-U882F-10-00

Unavailable

56

PLATE, STEP 1

F4N-U884R-10-00

Unavailable

57

MAT, STEP 8

F4N-U351S-10-00

$3.86

58

BOLT, WITH WASHER

90119-06830-00

Unavailable

59

BOLT

90109-06832-00

$2.44

60

RIVET, BLIND

90267-489U2-00

$1.43

61

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

62

PACKING

F4G-U2284-10-00

$2.87

63

COVER

F1X-U826D-01-00

$1.87
