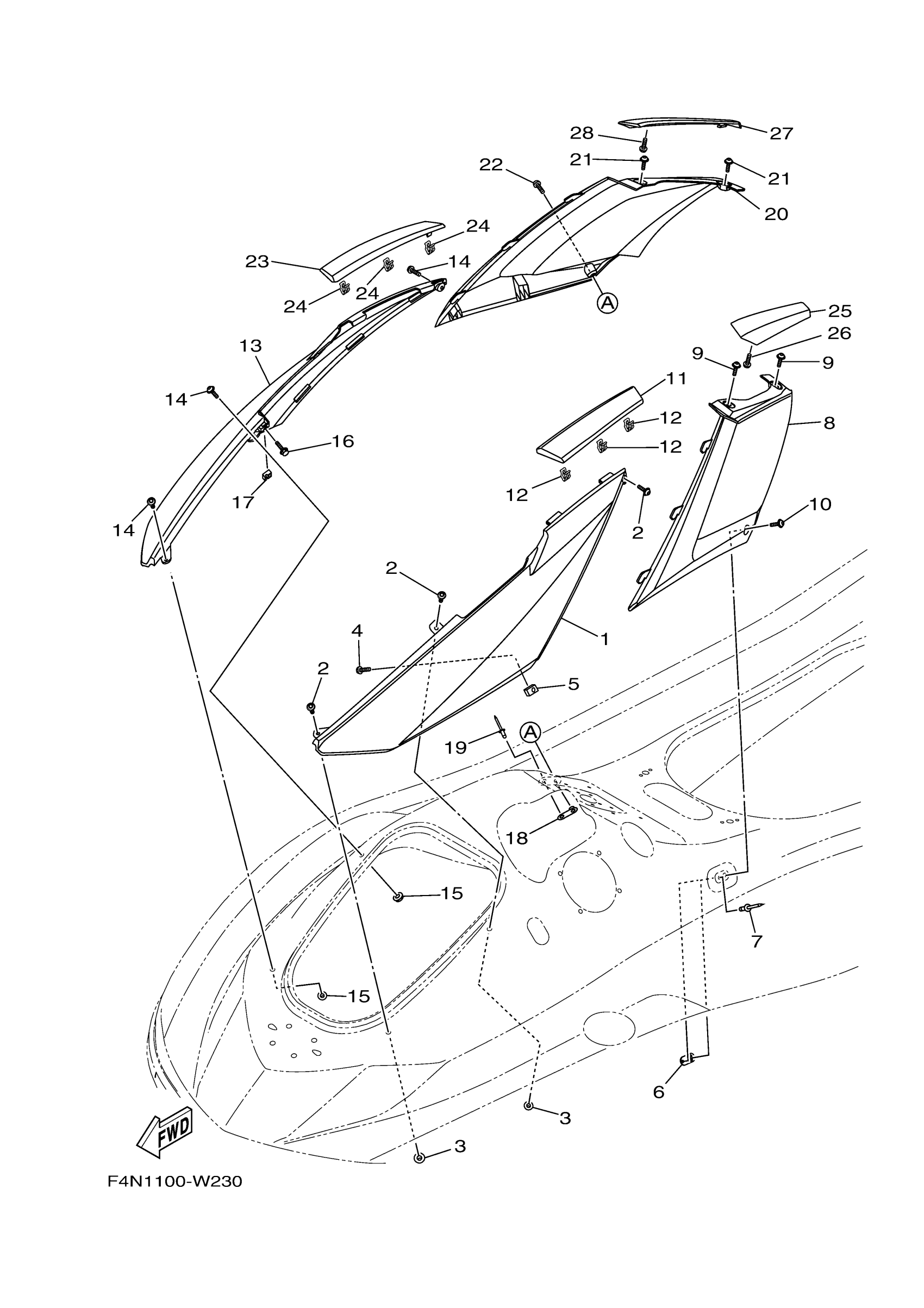

Yamaha VX1050AX (VX LIMITED) F4N7 2022 ENGINE HATCH 3 Diagram

#

Description
Price

1

COVER,SIDE 1 (MDYNS1)

F4N-U377B-00-P5

$382.34

2

SCREW

F3X-U7823-12-00

$1.25

3

NUT, LOCK

F2N-U142L-00-00

$1.43

4

BOLT, WITH WASHER

90119-06880-00

$3.65

5

NUT

F3X-U517E-00-00

$1.29

6

PLATE, FIX

F2X-U5175-00-00

$1.87

7

RIVET (EU0)

90267-48938-00

$4.85

8

PAD, KNEE (MDYNS1)

F4N-U353B-00-P4

$85.28

9

SCREW

F3X-U7823-12-00

$1.25

10

SCREW

F3X-U7823-02-00

$1.43

11

ORNAMENT LH (MDYNS1)

F4N-U517W-00-P4

$58.81

12

CLIP

F3Y-U153K-00-00

$1.37

13

COVER,SIDE 2 (MDYNS1)

F4N-U377C-00-P5

$183.81

14

SCREW

F3X-U7823-12-00

$1.25

15

NUT, LOCK

F2N-U142L-00-00

$1.43

16

BOLT, WITH WASHER

90119-06880-00

$3.65

17

NUT

F3X-U517E-00-00

$1.29

18

PLATE, FIX

F2X-U5175-00-00

$1.87

19

RIVET (EU0)

90267-48938-00

$4.85

20

PAD, KNEE 1 (MDYNS1)

F4N-U353C-00-P4

$107.34

21

SCREW

F3X-U7823-12-00

$1.25

22

SCREW

F3X-U7823-02-00

$1.43

23

ORNAMENT RH

F4N-U517X-01-P4

Unavailable

24

CLIP

F3Y-U153K-00-00

$1.37

25

ORNAMENT, MIDDLE LH (MDYNS1)

F4N-U89AA-00-P4

$61.75

26

SCREW

F2S-U13C1-00-00

$2.52

27

ORNAMENT, MIDDLE RH (MDYNS1)

F4N-U89AB-00-P4

$61.75

28

SCREW

F2S-U13C1-00-00

$2.52
