2023 Kawasaki Vulcan® S CafÉ Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

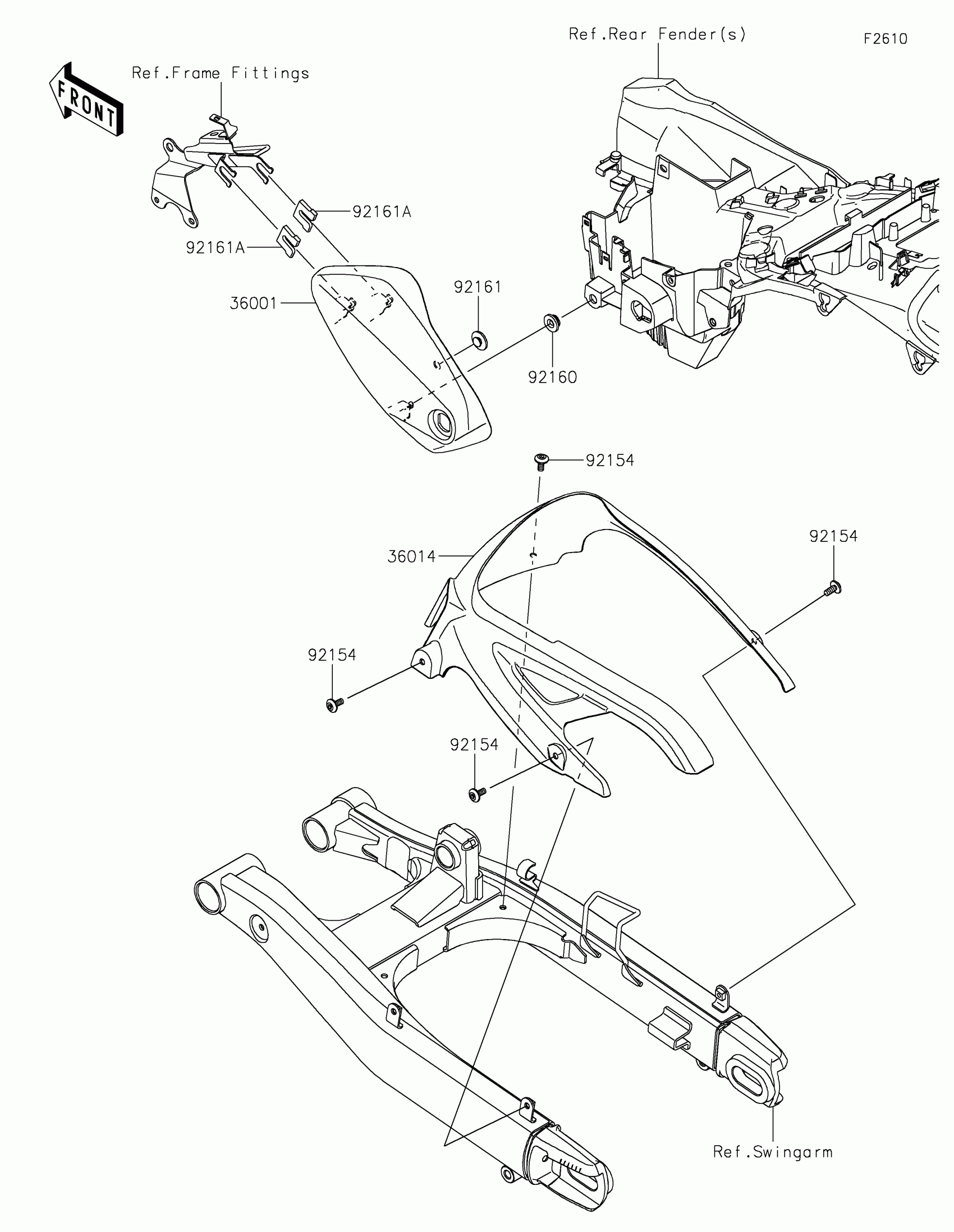

2023 Kawasaki Vulcan® S CafÉ Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,F.S.BLACK

36001-0615-18T

1

$67.01

In stock

36014

CASE-CHAIN

36014-0566

1

$80.06

In stock

92154

BOLT,SOCKET,6X14

92154-1511

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92161A

DAMPER

92161-1764

1

$2.25

In stock
← Rear Wheel/chain Transmission →

More Drive & Transmission diagrams
