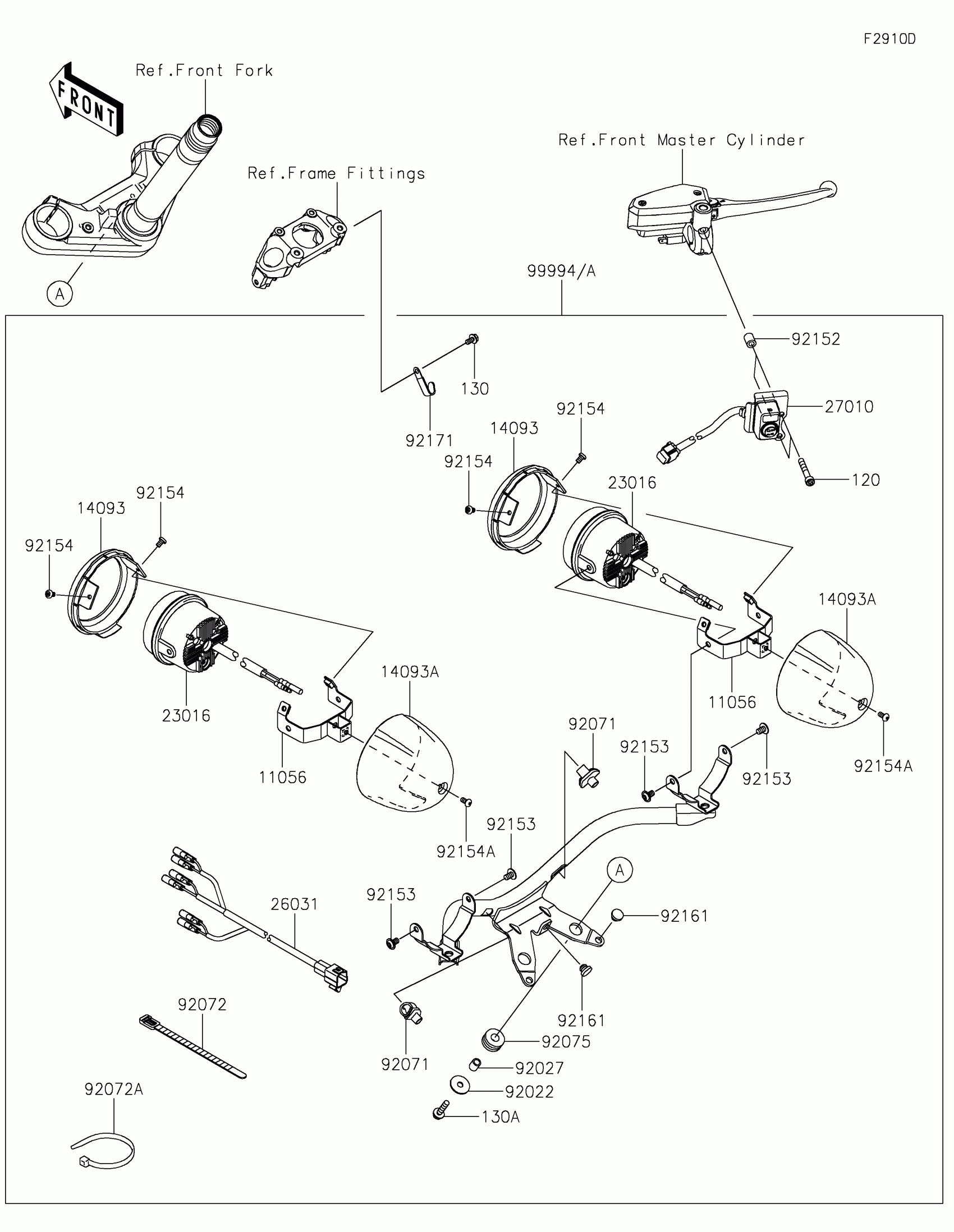

Kawasaki Vulcan® S CAFÉ Accessory(Sub Lamp) Diagram

Description

Price

11056

BRACKET,LAMP COVER

11056-4446

$25.00

14093

COVER,RIM

14093-0162

$32.66

14093A

COVER,BODY

14093-0163

$51.94

23016

LAMP-ASSY,PIAA,LP-530

23016-0576

$402.17

26031

HARNESS

26031-1823

$48.30

27010

SWITCH,SUB LAMP

27010-0761

$77.89

92022

WASHER,7X24X1.6

92022-1160

$2.99

92027

COLLAR,6.8X10X12

92027-162

$4.93

92071

GROMMET,SIGNAL LAMP

92071-0043

$4.81

92072

BAND,L=140

92072-1293

$5.26

92072A

BAND,L=152

92072-3874

$3.75

92075

DAMPER,10X24X12

92075-1690

$3.81

92152

COLLAR,6.3X11X14

92152-1965

$5.08

92153

BOLT,SOCKET,6X10

92153-1527

$1.53

92154

BOLT

92154-0314

$1.10

92154A

BOLT,SOCKET,5X10

92154-1292

$1.32

92161

DAMPER

92161-1084

$1.89

92171

CLAMP

92171-1539

$1.98

99994

KIT-ACCESSORY,SUB-LAMP,BLK

99994-0511

$487.04

99994A

KIT-ACCESSORY,SUB-LAMP,PLT

99994-0555

$914.92

120

BOLT-SOCKET,6X40

120CB0640

$1.32

130

BOLT-FLANGED,5X10

130AA0510

$0.97

130A

BOLT-FLANGED,6X25

130BB0625

$1.84
