2024 Kawasaki Vulcan® S ABS Cylinder Head Diagram

← All diagrams

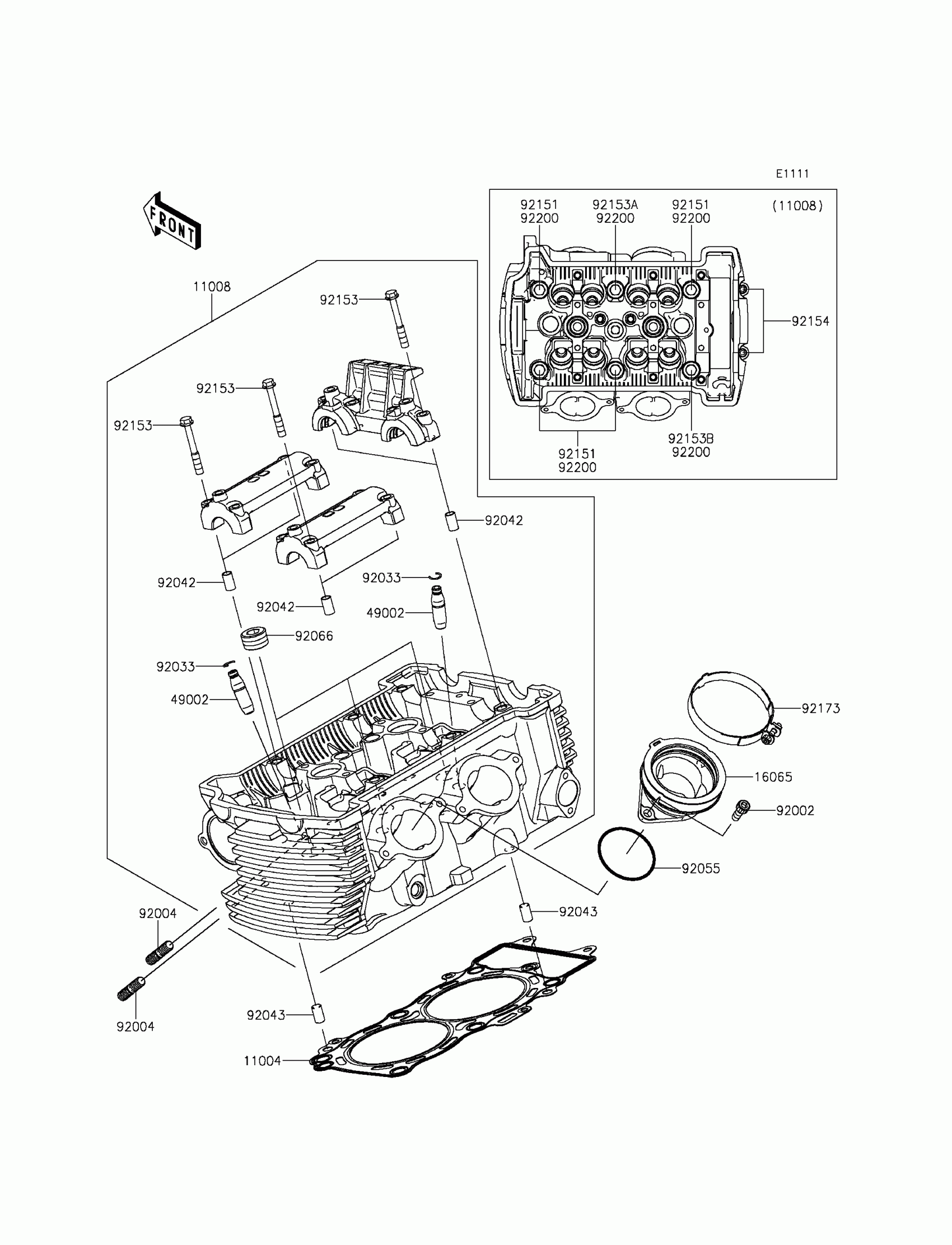

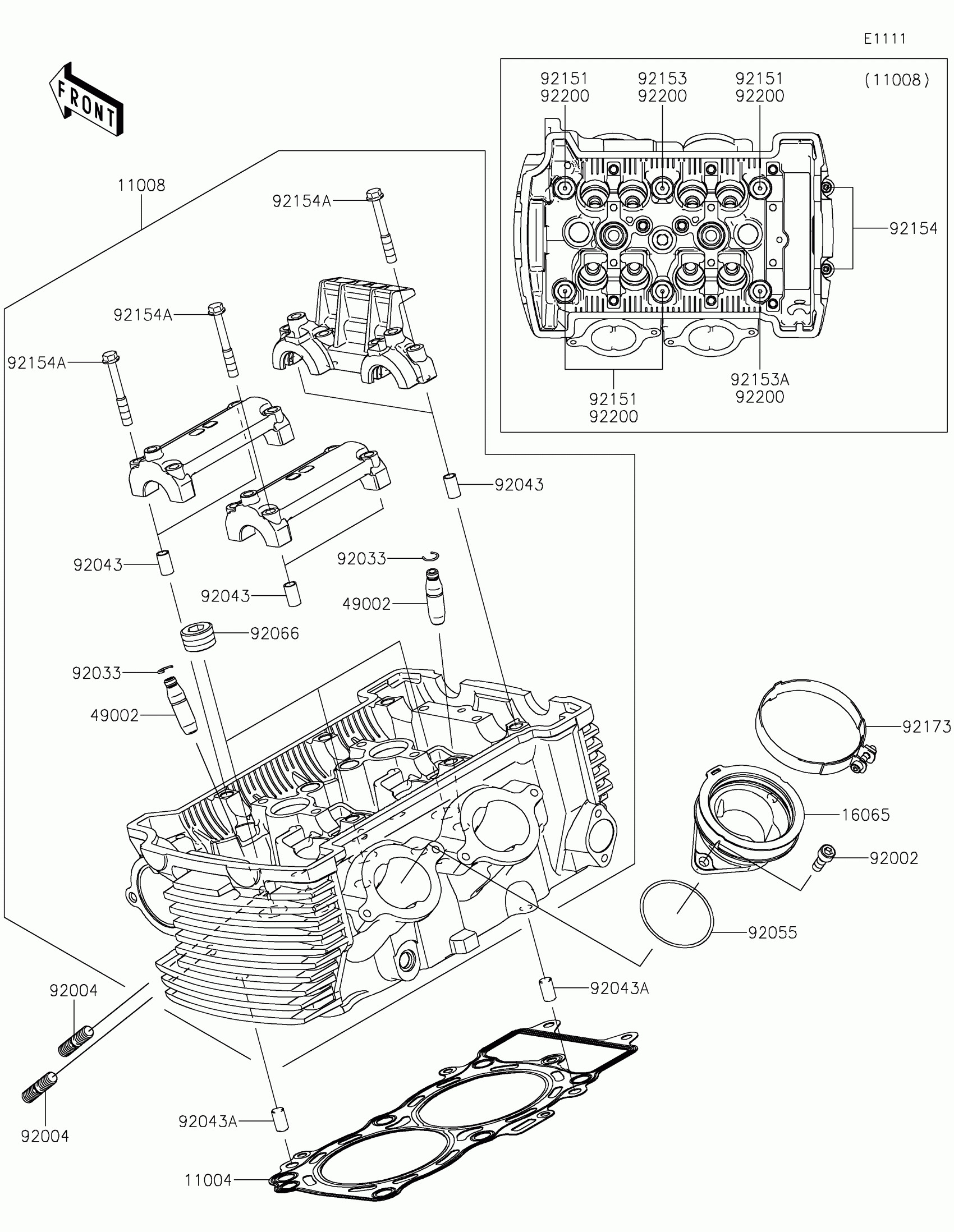

Find the part on the Cylinder Head diagram for your 2024 Kawasaki Vulcan® S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Vulcan® S ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0064

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0992

1
Out of stock

16065

HOLDER-CARBURETOR

16065-0128

1
Out of stock

49002

GUIDE-VALVE

49002-1116

1
Out of stock

92002

BOLT,6X16

92002-1143

1
Out of stock

92004

STUD,8X22

92004-0025

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,8X14

92043-1567

1
Out of stock

92055

RING-O,47X1.9

92055-1600

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92151

BOLT,10X158

92151-1152

1
Out of stock

92153

BOLT,FLANGED-SMALL,10X176

92153-0972

1
Out of stock

92153A

BOLT,FLANGED-SMALL,10X80

92153-1321

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0116

1
Out of stock

92154A

BOLT,FLANGED,6X45

92154-3737

1
Out of stock

92173

CLAMP

92173-0239

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-0363

1
Out of stock
