2024 Kawasaki Vulcan® S ABS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2024 Kawasaki Vulcan® S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

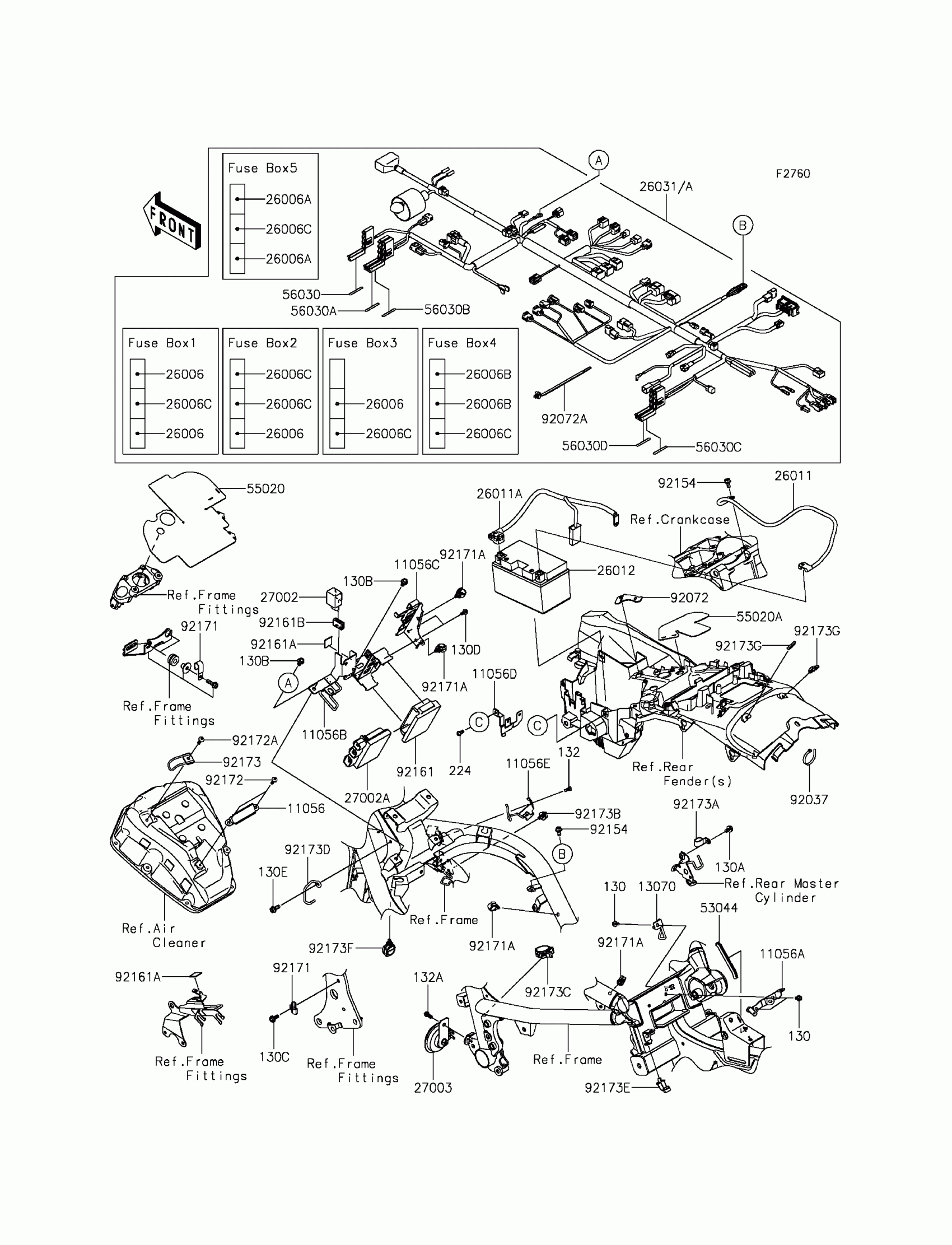

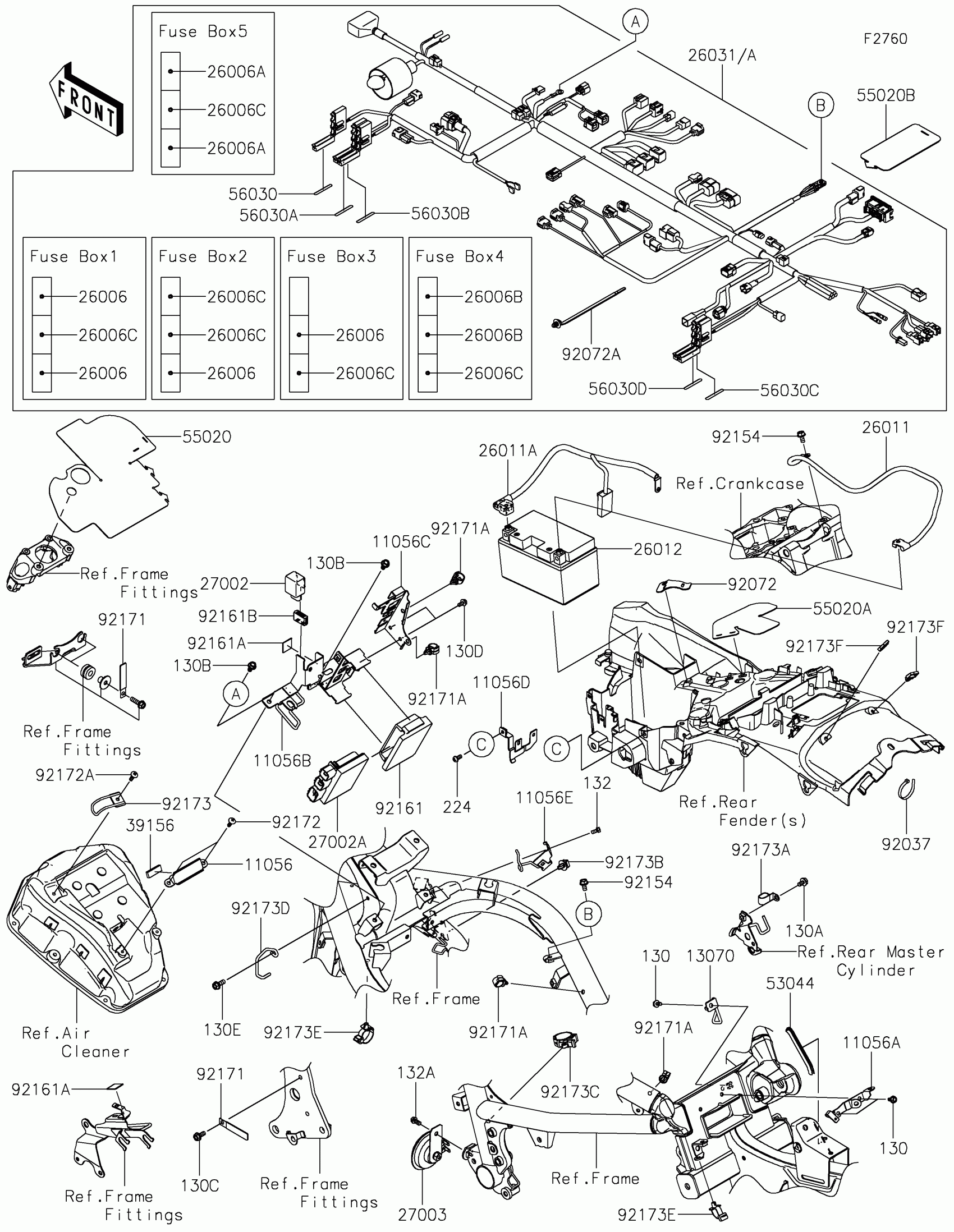

2024 Kawasaki Vulcan® S ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ECU

11056-4283

1
Out of stock

11056A

BRACKET,CNT FRAME

11056-4284

1
Out of stock

11056B

BRACKET,RELAY-ASSY

11056-4287

1
Out of stock

11056C

BRACKET,CONNECTOR,IG. SW.,ETC.

11056-4293

1
Out of stock

11056D

BRACKET,CONNECTOR,ABS

11056-4295

1
Out of stock

11056E

BRACKET,CONNECTOR,SENSOR

11056-4315

1
Out of stock

13070

GUIDE,HARNESS

13070-0800

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

1
Out of stock

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0711

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0870

1
Out of stock

26012

BATTERY,YTZ10,12V 8.6AH

26012-1606

1
Out of stock

26031A

HARNESS,MAIN

26031-2307

1
Out of stock

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

1
Out of stock

27002A

RELAY-ASSY

27002-0050

1
Out of stock

27003

HORN

27003-0111

1
Out of stock

39156

PAD,10X30X4

39156-0927

1

$0.85

In stock

53044

TRIM,L=85

53044-0556

1

$9.96

In stock

55020

GUARD,IG. SWITCH

55020-1833

1
Out of stock

55020A

GUARD,MG. SWITCH

55020-1834

1
Out of stock

55020B

GUARD,HARNESS

55020-2194

1
Out of stock

56030

LABEL,FUSE BOX1

56030-0884

1
Out of stock

56030A

LABEL,FUSE BOX2

56030-0885

1
Out of stock

56030B

LABEL,FUSE BOX3

56030-0886

1
Out of stock

56030C

LABEL,FUSE BOX4

56030-0887

1
Out of stock

56030D

LABEL,FUSE BOX5

56030-0888

1
Out of stock

92037

CLAMP

92037-1173

1
Out of stock

92072

BAND,LEAD WIRE

92072-0768

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT,FLANGED,6X12

92154-1050

1
Out of stock

92161

DAMPER,RELAY BOX

92161-0203

1
Out of stock

92161A

DAMPER,20X20,T1.0

92161-1431

1
Out of stock

92161B

DAMPER,15X25X8.5

92161-1443

1
Out of stock

92171

CLAMP,L=60

92171-0652

1
Out of stock

92171A

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0742

1
Out of stock

92173

CLAMP,AIR CLEANER

92173-0889

1
Out of stock

92173A

CLAMP

92173-0978

1
Out of stock

92173B

CLAMP,CABLE CLIP

92173-1022

1
Out of stock

92173C

CLAMP,CABLE,28MM

92173-1062

1
Out of stock

92173D

CLAMP,WIRE,HEAD PIPE,LH

92173-1334

1
Out of stock

92173E

CLAMP,CABLE STRAP

92173-1336

1
Out of stock

92173F

CLAMP,CLIP,TAIL LAMP,ETC

92173-1429

1
Out of stock

130

BOLT-FLANGED,5X10

130AA0510

1

$0.97

In stock

130A

BOLT-FLANGED,6X10

130AA0610

1

$0.53

In stock

130B

BOLT-FLANGED,6X12

130AA0612

1

$0.73

In stock

130C

BOLT-FLANGED,6X14

130AA0614

1

$0.54

In stock

130D

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock

130E

BOLT-FLANGED,6X16

130BB0616

1

$1.73

In stock

132

1

$1.47

In stock

132A

1

$1.73

In stock

224

SCREW-PAN-WP-CROS,5X12

224AA0512

1
Out of stock
