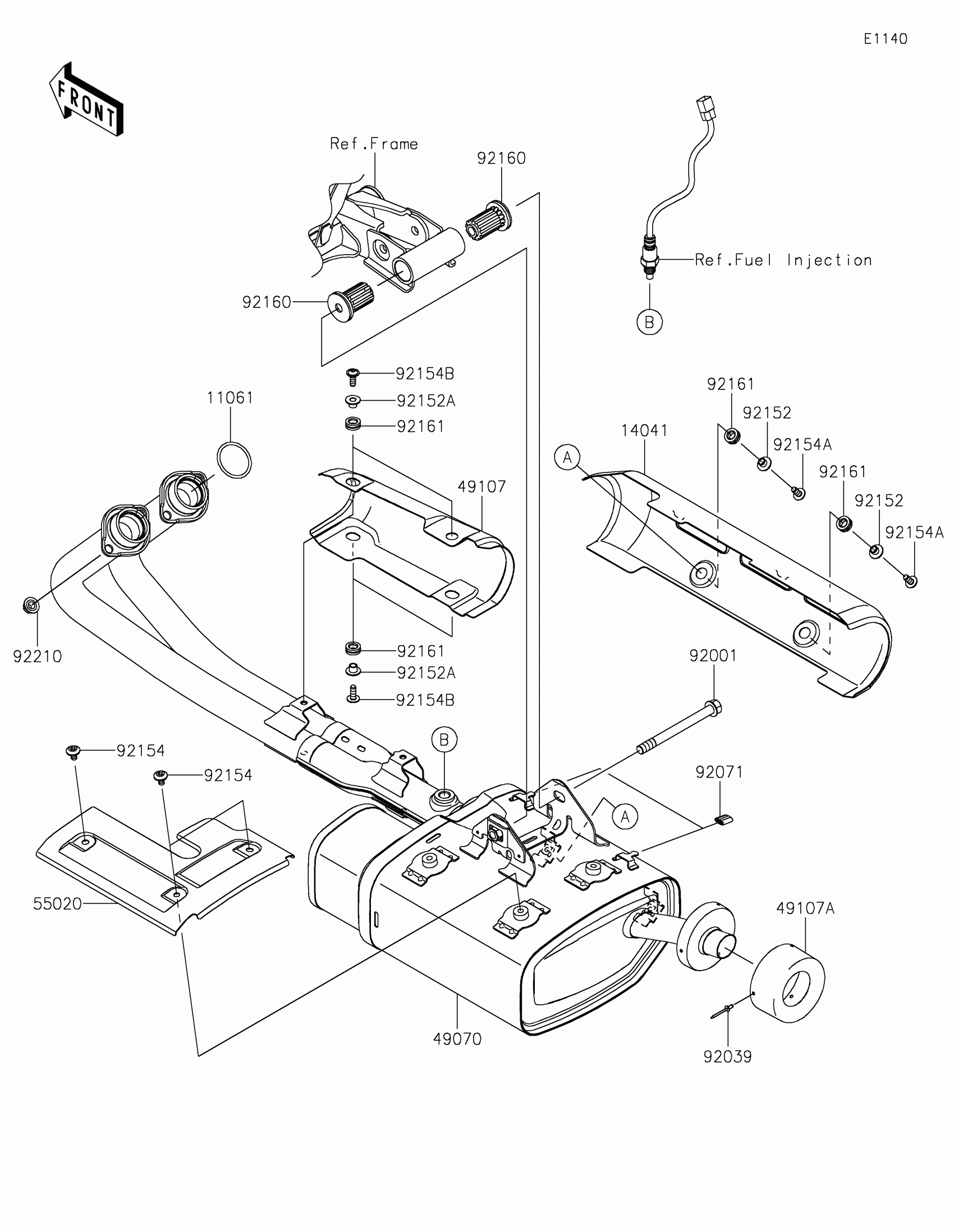

Kawasaki VULCAN® S ABS CAFE Muffler(s) Diagram

Description

Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

$6.01

14041

COVER-COMP,MUFFLER

14041-0581

$360.00

49070

MUFFLER-COMP

49070-0815

$1,373.80

49107

COVER-EXHAUST PIPE,FR

49107-0776

$180.21

49107A

COVER-EXHAUST PIPE,END

49107-0777

$113.87

55020

GUARD,MUFFLER

55020-1855

$113.82

92001

BOLT,FLANGED,10X110

92001-1602

$10.63

92039

RIVET

92039-0088

$1.47

92071

GROMMET

92071-1270

$7.14

92152

COLLAR,6.3X8.3X16

92152-1602

$2.84

92152A

COLLAR

92152-1988

$2.71

92154

BOLT,SOCKET,6X10

92154-0774

$1.24

92154A

BOLT,SOCKET,6X14

92154-0856

$1.43

92154B

BOLT,SOCKET,6X16

92154-1678

$1.27

92160

DAMPER

92160-1423

$20.81

92161

DAMPER

92161-1475

$4.04

92210

NUT,8MM

92210-1114

$1.76
