Description

Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

120

BOLT-SOCKET,8X35

120CB0835

$4.24

130

BOLT-FLANGED,6X10

130BB0610

$2.05

44005

PIPE-LEFT FORK OUTER,S.BLACK

44005-0101-32A

$318.75

44006

PIPE-RIGHT FORK OUTER,S.BLACK

44006-0101-32A

$327.25

44013

PIPE-FORK INNER

44013-0270

$469.40

44023

CYLINDER-SET-FORK

44023-0133

$114.61

44026

SPRING-FRONT FORK

44026-0196

$54.77

44029

SEAT-FORK SPRING

44029-0005

$45.48

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0150-18R

$362.29

44039

HOLDER-FORK UPPER,F.BLACK

44039-0146-21

$385.21

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$26.78

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$26.35

44071

DAMPER-ASSY,FORK,LH,S.BLACK

44071-0988-32A

$671.17

44071A

DAMPER-ASSY,FORK,RH,S.BLACK

44071-0990-32A

$689.22

55020

GUARD,FORK

55020-0872

$9.25

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.82

92033

RING-SNAP

92033-1036

$5.15

92049

SEAL-OIL

92049-0073

$21.04

92055

RING-O

92055-1321

$1.19

92066

PLUG

92066-0817

$10.25

92093

SEAL,FORK OUTER TUBE

92093-1472

$22.03

92151

BOLT,SOCKET,10X40

92151-1357

$3.59

92152

COLLAR

92152-2153

$12.90

92154

BOLT,SOCKET,FORK CYLINDER

92154-0296

$2.92

92154A

BOLT,SOCKET,8X20

92154-1811

$3.29

92200

WASHER

92200-1467

$9.58

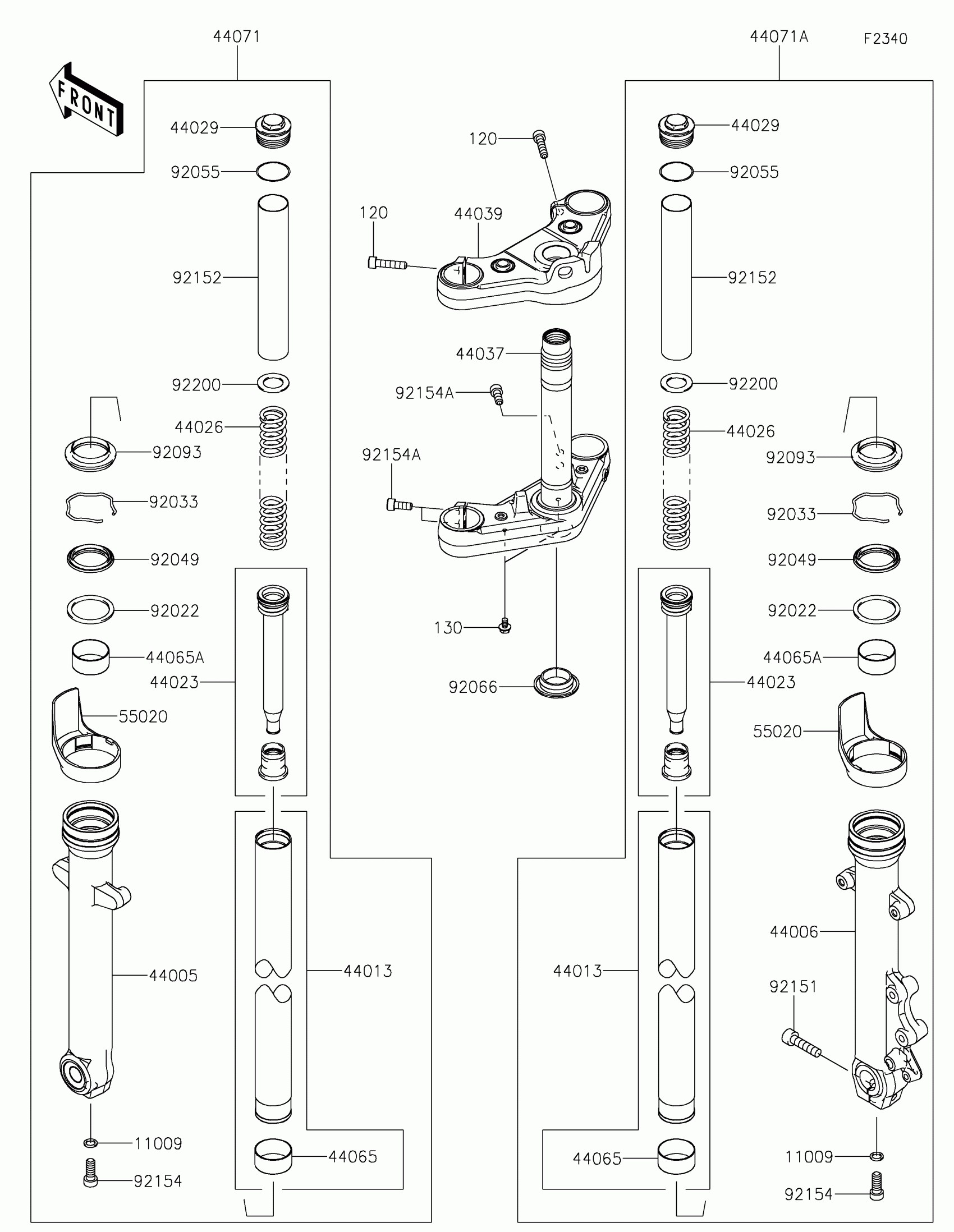

Kawasaki VULCAN® S ABS CAFE Front Fork Diagram

GASKET,10.5X15X1.5
