2020 Kawasaki Vulcan® S ABS Cafe Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2020 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

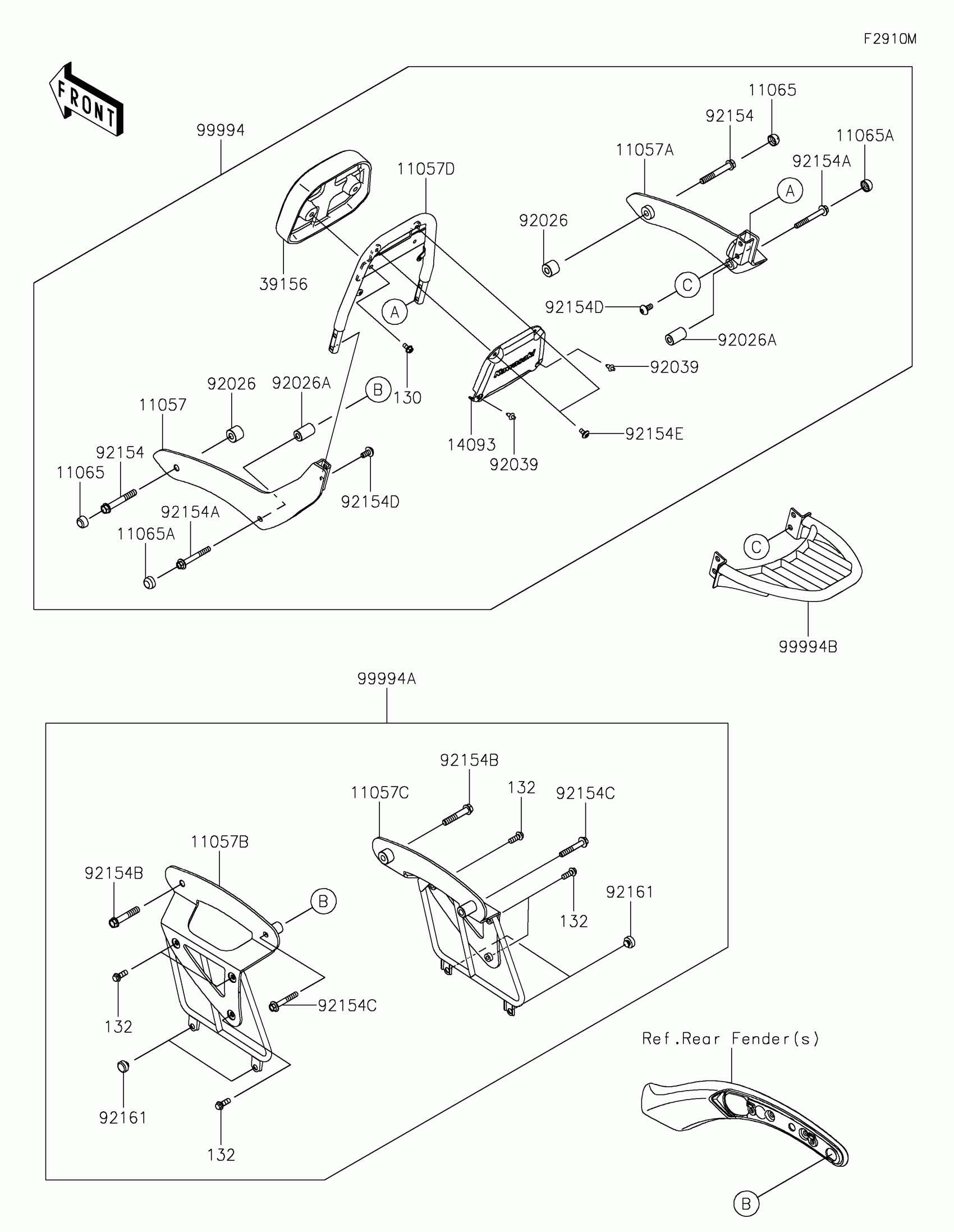

2020 Kawasaki Vulcan® S ABS Cafe Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SIDE PLATE,LH

11057-0179

1
Out of stock

11057A

BRACKET,SIDE PLATE,RH

11057-0181

1
Out of stock

11057B

BRACKET,LH

11057-0186

1
Out of stock

11057C

BRACKET,RH

11057-0188

1
Out of stock

11057D

BRACKET,SISSYBAR

11057-0218

1
Out of stock

11065

CAP,14

11065-0977

1
Out of stock

11065A

CAP

11065-1195

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$2.20

In stock

14093

COVER

14093-0504

1
Out of stock

39156

PAD,SEAT

39156-1581

1
Out of stock

92026

SPACER

92026-0823

1
Out of stock

92026A

SPACER

92026-0824

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92154

BOLT,FLANGED,10X70

92154-2227

1
Out of stock

92154A

BOLT,FLANGED,8X68

92154-2228

1
Out of stock

92154B

BOLT,FLANGED,10X57

92154-2229

1
Out of stock

92154C

BOLT,FLANGED,8X55

92154-2230

1
Out of stock

92154D

BOLT,SOCKET,8X18

92154-2239

1
Out of stock

92154E

BOLT,SOCKET,6X12

92154-2497

1
Out of stock

92161

DAMPER,10X20X8

92161-0855

1
Out of stock

99994

KIT,PASSENGER BACKREST W/O KQR

99994-0818

1
Out of stock

99994A

KIT,SADDLEBAG SPRT BKT W/O KQR

99994-0819

1
Out of stock

99994B

KIT-ACC,LUGGAGE RACK W/O KQR

99994-0846

1
Out of stock
