2024 Kawasaki Vulcan® S ABS Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2024 Kawasaki Vulcan® S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

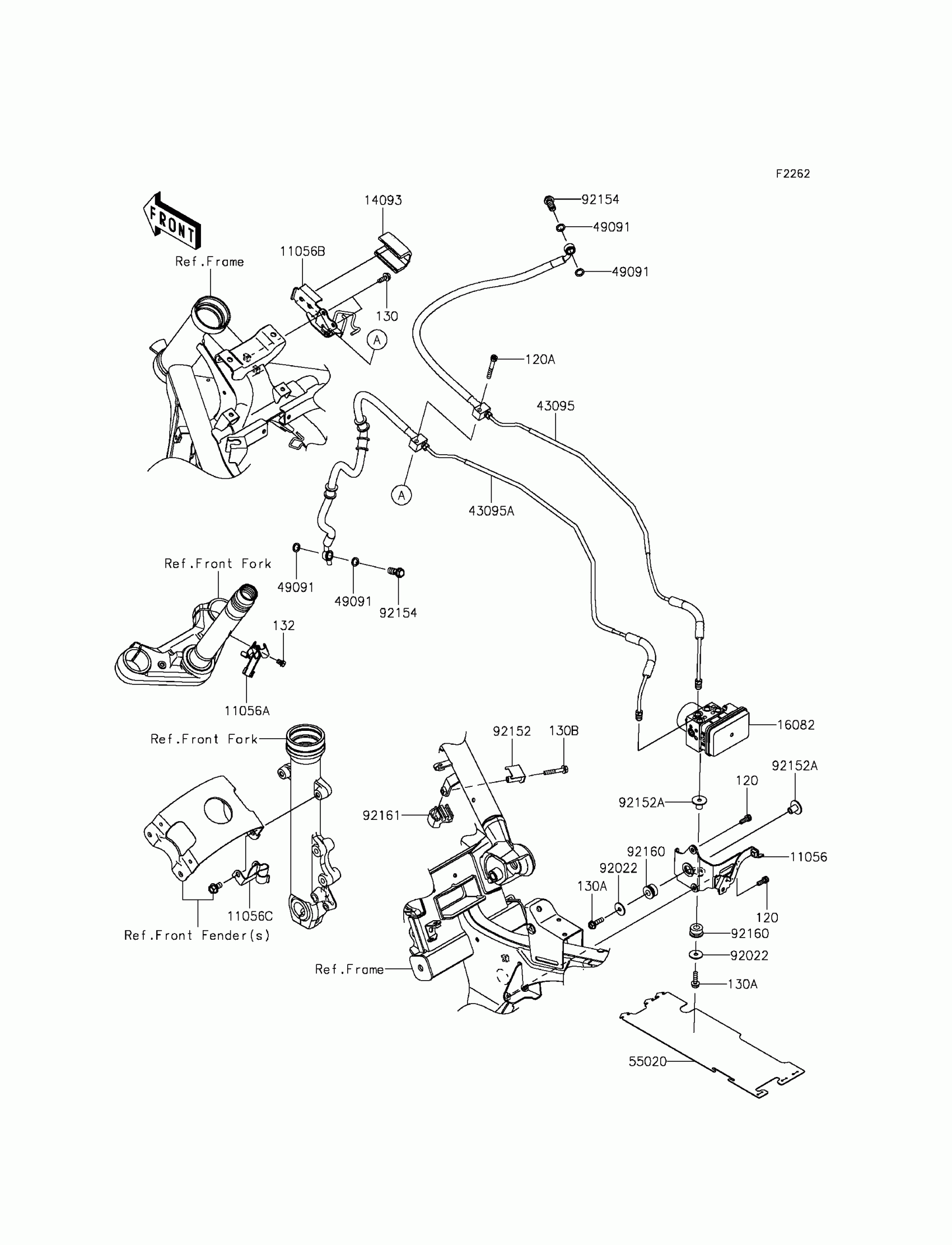

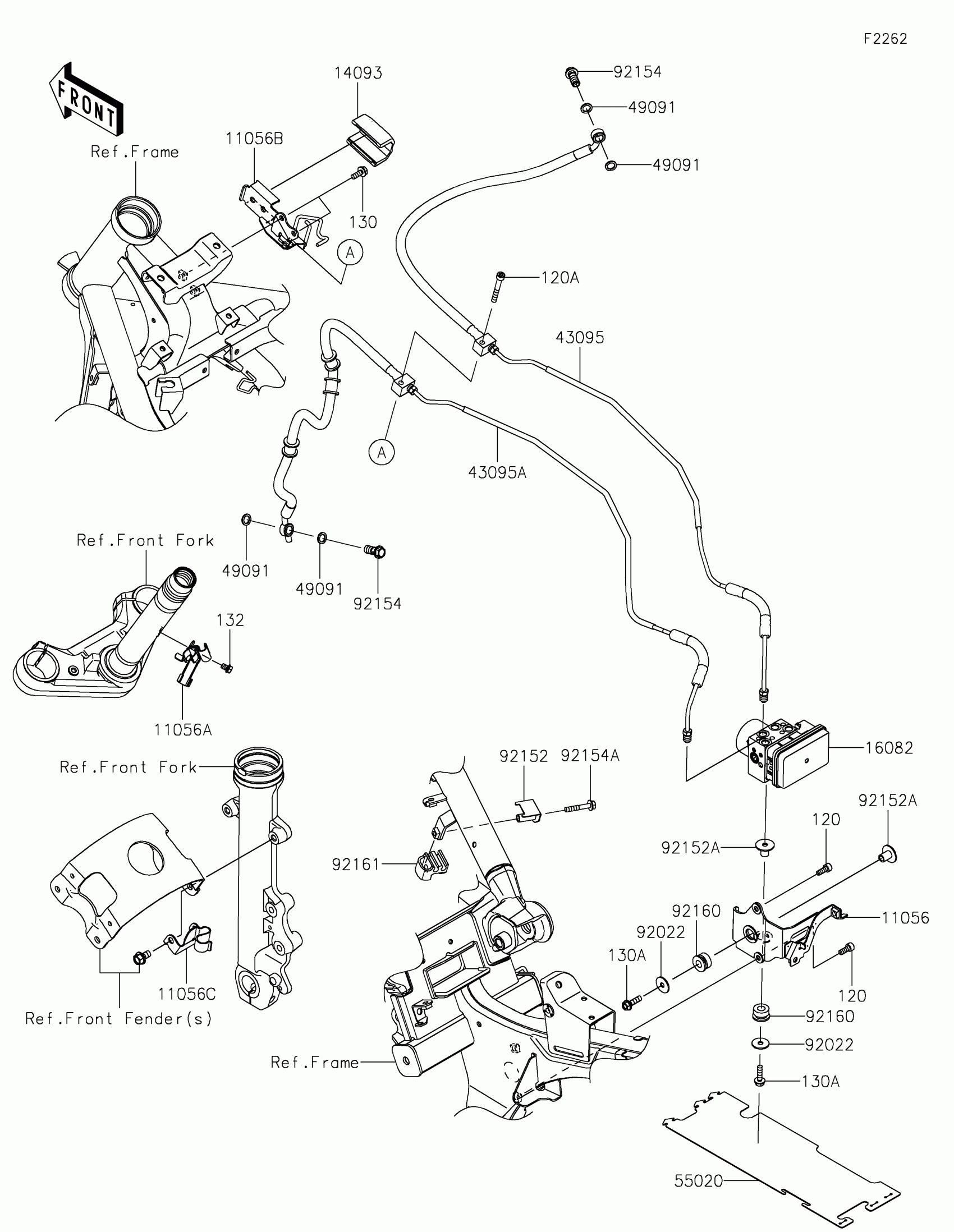

2024 Kawasaki Vulcan® S ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ABS UNIT

11056-4167

1
Out of stock

11056A

BRACKET,FORK UNDER HOLDER

11056-4358

1
Out of stock

11056B

BRACKET,BRAKE HOSE

11056-4376

1
Out of stock

11056C

BRACKET,FR FENDER

11056-7694

1
Out of stock

14093

COVER,BRAKE HOSE BKT.

14093-0145

1
Out of stock

16082

PUMP-ASSY-OIL,ABS,WET

16082-0910

1
Out of stock

43095

HOSE-BRAKE,ABS UNIT-FR M/CYL.

43095-1917

1
Out of stock

43095A

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1918

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

55020

GUARD,ABS UNIT

55020-1885

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92152

COLLAR

92152-0996

1
Out of stock

92152A

COLLAR,6.5X10X15.6

92152-2105

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1
Out of stock

92154A

BOLT,FLANGED,6X35

92154-4191

1
Out of stock

92160

DAMPER

92160-1141

1
Out of stock

92161

DAMPER,BRAKE PIPE

92161-0347

1
Out of stock

120

BOLT-SOCKET,6X16

120CA0616

1
Out of stock

120A

BOLT-SOCKET,6X45

120CA0645

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

132

1

$3.24

In stock
