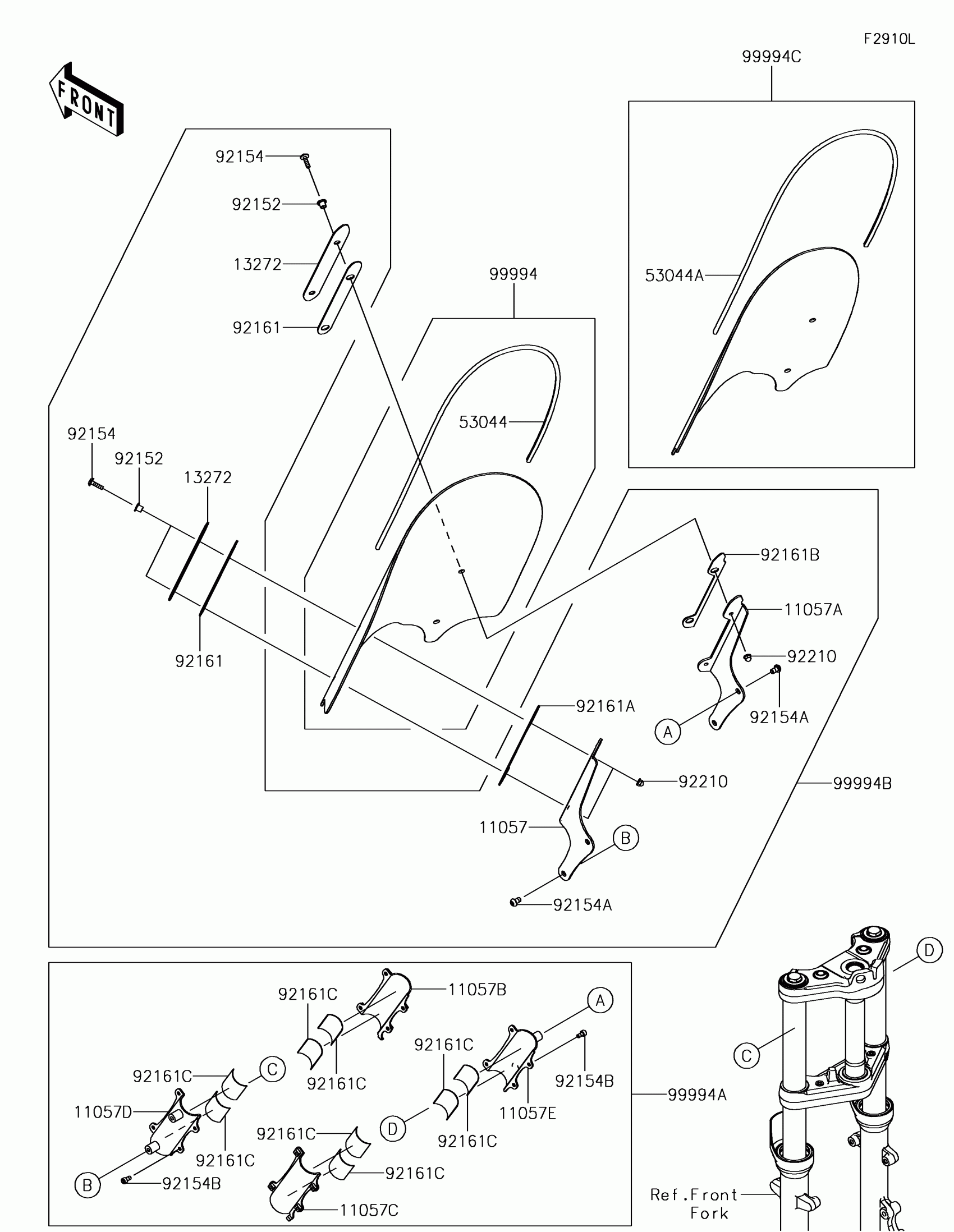

Kawasaki VULCAN® S ABS Accessory(Windshield) Diagram

Description

Price

11057

BRACKET,LH

11057-0212

$129.76

11057A

BRACKET,RH

11057-0213

$129.76

11057B

BRACKET,LH,INNER

11057-0215

$79.30

11057C

BRACKET,RH,INNER

11057-0217

$79.30

11057D

BRACKET,LH,OUTER

11057-0857

$104.38

11057E

BRACKET,RH,OUTER

11057-0858

$104.38

13272

PLATE

13272-2181

$54.59

53044

TRIM

53044-0606

$29.45

53044A

TRIM,WINDSHIELD,SHORT TYPE

53044-1272

$30.37

92152

COLLAR,6.8X10X10.9

92152-2261

$4.08

92154

BOLT,SOCKET,6X22

92154-0787

$2.19

92154A

BOLT,SOCKET,8X14

92154-1032

$3.27

92154B

BOLT-SOCKET,6X12

92154-2688

$2.05

92161

DAMPER

92161-1862

$12.02

92161A

DAMPER

92161-1863

$12.02

92161B

DAMPER

92161-1864

$12.02

92161C

DAMPER,60X140X1

92161-1868

$13.64

92210

NUT,CAP,6MM

92210-0322

$1.04

99994

KIT,WINDSHIELD LARGE W/O KQR

99994-0823

$405.72

99994A

KIT-ACCESSORY,WSHLD-BKT(F/F)

99994-0824

$197.24

99994B

KIT-ACCESSORY,WSHLD-BKT

99994-0825

$221.65

99994C

KIT,WINDSHIELD MEDIUM W/O KQR

99994-0828

$242.34
